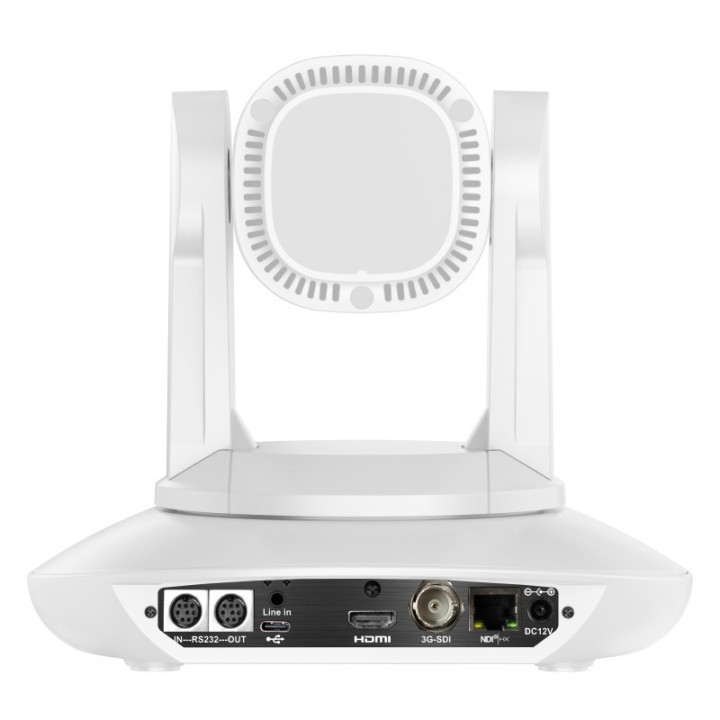

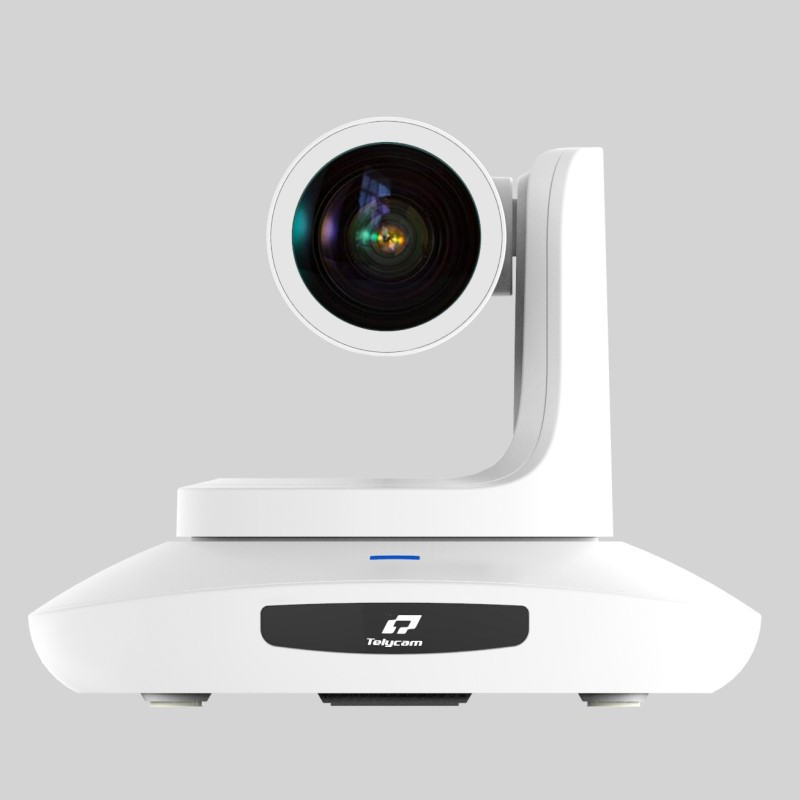

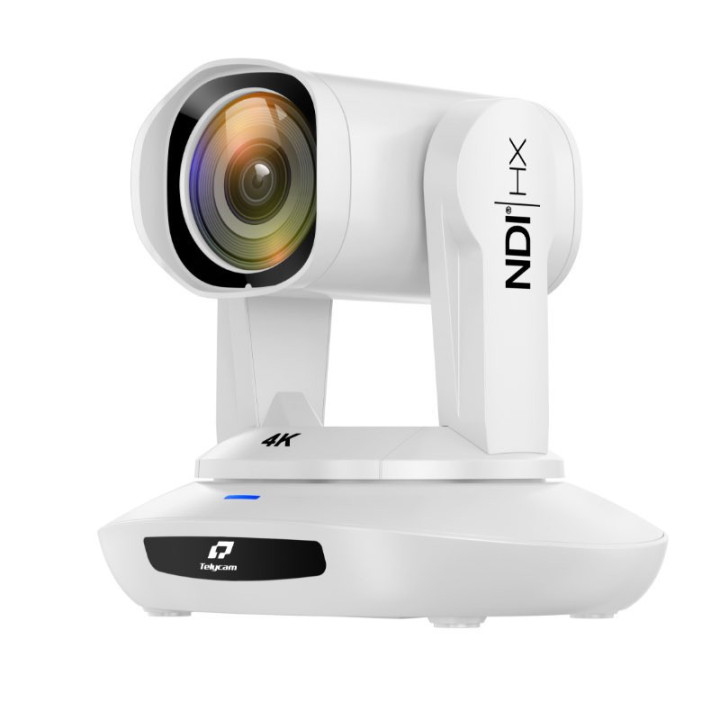

Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White

1057110
0768461174288
Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White
Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White
Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White
Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White
Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White
Telycam TLC-300-IP-12-4K(NDI)-ABW - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, White
4K60 UHD video resolution - 12x optical zoom - NDI|HX /HDMI2.0 /3G-SDI /USB-C video interface - Embed the Latest NDI ®5 SDK - SRT supported - PoE. NEW! With auto-tracking.
... learn more
Visuals Price
1,597.63 CHF VAT excl.

1,727.04 CHF Inc. VAT

Manufacturer price 1 597,06 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Item TLC-300-IP-12-4K(NDI)-AB
Sensor 8.4MP 1/2.8 inch CMOS sensor
Video format HDMI: 3840*2160P60/59.94/50/30/29.97/25; 1920*1080P60/59.94/50/30/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
  NDI®|HX:
Main stream: 3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60
Secondary stream: 640*360P30
  3G-SDI: 1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080I60/59.94/50;
1280*720P60/59.94/50/30/29.97/25
  USB Type-C:
NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
Zoom 12X optical zoom + 4X digital zoom
Horizontal viewing angle 7.6°(Tele)~80.5°(Wide angle)
Lens Focal length: 3.4mm~40.3mm Iris: F1.8(Wide angle)~F3.6(Tele)
Minimum focus distance Wide angle: 1m Tele: 1.5m
Preset Remote control: 10; Serial port: 128; Accuracy: 0.1°
Pan rotation angle -170° to +170°
Tilt rotation angle -30° to +90°
Pan rotation speed 0.1°~120°/s
Tilt rotation speed 0.1°~80°/s
Control port RS232(RS485), NDI®|HX, USB Type-C
Video port NDI®|HX, HDMI, 3G-SDI, USB Type-C
Audio port 3.5mm line input
Network port speed 1000M
Noise reduction 2D&3D
Minimum illumination 0.01 lux
White balance Auto/Manual/Auto Tracking/Push/Indoor/Outdoor/Colour Temperature
Exposure Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-flicker OFF,50Hz,60Hz
Image flip Support
Mirror effect Support
Focus Auto/Manual
Iris Auto/Manual
Electronic shutter Auto/Manual
Gamma Support
Back light compensation Support
Tally Support
Video encoding H.264, H.265
Bit rate control Variable bit rate (VBR), Constant bit rate (CBR)
Bit rate range 1024Kbps~61440Kbps
Protocol NDI®|HX, VISCA over IP, VISCA, RTSP, RTMP, HTTP, ONVIF, TCP/UDP, PELCO-P/D
POE+ Support
Serial chain Support
Input voltage DC12V, POE+(IEEE802.3at)
Dimensions (L×W×H) 220mm×190mm×173mm
Net weight 1.5kg (3.3LBS)
4K60 UHD video resolution - 12x optical zoom - NDI|HX /HDMI2.0 /3G-SDI /USB-C video interface - Embed the Latest NDI ®5 SDK - SRT supported - PoE. NEW! With auto-tracking.
