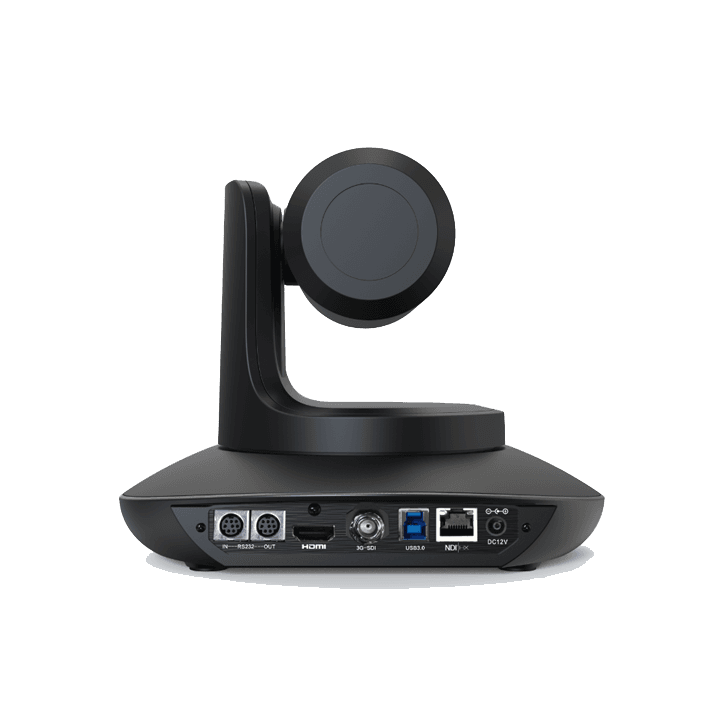

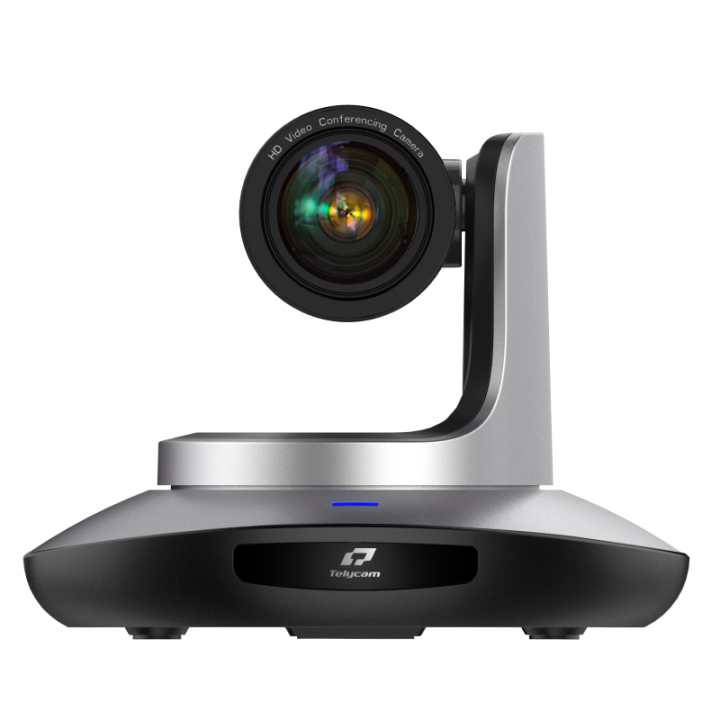

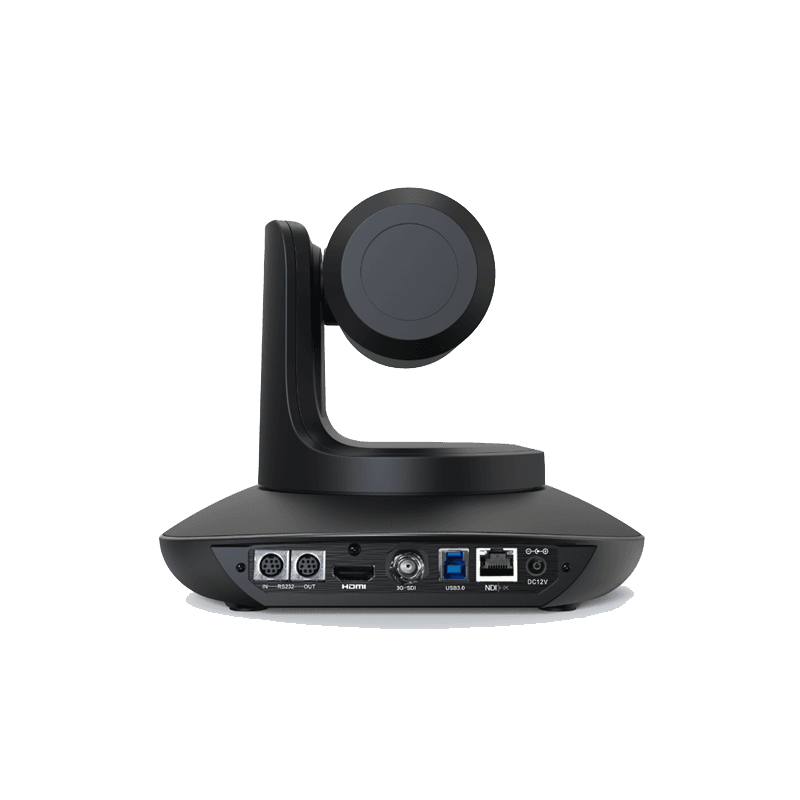

Telycam TLC-300-IP-12-4K(NDI)-ABB - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, Black

1057111
0768461174912
Telycam TLC-300-IP-12-4K(NDI)-ABB - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, Black
Telycam TLC-300-IP-12-4K(NDI)-ABB - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, Black
Telycam TLC-300-IP-12-4K(NDI)-ABB - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, Black
Telycam TLC-300-IP-12-4K(NDI)-ABB - Vision+ 4KN 12X , DI|HX SDK, 12X 4K HD PTZ Video Camera, Black
4K60 UHD video resolution - 12x optical zoom - NDI|HX /HDMI2.0 /3G-SDI /USB-C video interface - Embed the Latest NDI ®5 SDK - SRT supported - PoE. NEW! With auto-tracking.
... learn more
Visuals Price
1,597.63 CHF VAT excl.

1,727.04 CHF Inc. VAT

Manufacturer price 1 597,06 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks



Specifications


Item TLC-300-IP-12-4K(NDI)-AB
Sensor 1/2.8 inch 8.4 MP CMOS sensor
Video format HDMI: 3840*2160P60/59.94/50/30/29.97/25; 1920*1080P60/59.94/50/30/29.97/25/24/23.98;
1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25
  NDI®|HX:
Main stream: 3840*2160P15 to 60; 1920*1080P15 to 60; 1280*720P15 to 60; 1024*576P15 to 60
Secondary stream: 640*360P30
  3G-SDI: 1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080I60/59.94/50;
1280*720P60/59.94/50/30/29.97/25
  USB Type-C:
NV12: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV: 1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
H264/H265: 3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60; 800*448P60
Zoom 12X optical zoom + 4X digital zoom
Horizontal viewing angle 7.6° (Tele) to 80.5° (Wide angle)
Lens Focal length: 3.4 mm to 40.3 mm Iris: F1.8 (Wide angle) to F3.6 (Tele)
Minimum focusing distance Wide angle: 1 m Tele: 1.5 m
Preset Remote control: 10; Serial port: 128; Accuracy: 0.1°
Pan rotation angle -170° to +170°
Tilt rotation angle -30° to +90°
Pan rotation speed 0.1° to 120°/s
Tilt rotation speed 0.1° to 80°/s
Control port RS232 (RS485), NDI®|HX, USB Type-C
Video port NDI®|HX, HDMI, 3G-SDI, USB Type-C
Audio port 3.5 mm line input
Network port speed 1000M
Noise reduction 2D & 3D
Minimum illumination 0.01 lux
White balance Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Colour temperature
Exposure Auto/Manual/Shutter priority/Iris priority/Brightness priority
Anti-flicker OFF, 50 Hz, 60 Hz
Image flip Support
Mirror Support
Focus Auto/Manual
Iris Auto/Manual
Electronic shutter Auto/Manual
Gamma Support
Backlight compensation Support
Tally Support
Video encoding H.264, H.265
Bit rate control Variable bit rate (VBR), Constant bit rate (CBR)
Bit rate range 1024 Kbps to 61440 Kbps
Protocol NDI®|HX, VISCA over IP, VISCA, RTSP, RTMP, HTTP, ONVIF, TCP/UDP, PELCO-P/D
POE+ Support
Daisy chain Support
Input voltage DC12V, POE+ (IEEE802.3at)
Dimensions (W × D × H) 220 mm × 190 mm × 173 mm
Net weight 1.5 kg (3.3 lbs)
4K60 UHD video resolution - 12x optical zoom - NDI|HX /HDMI2.0 /3G-SDI /USB-C video interface - Embed the Latest NDI ®5 SDK - SRT supported - PoE. NEW! With auto-tracking.
