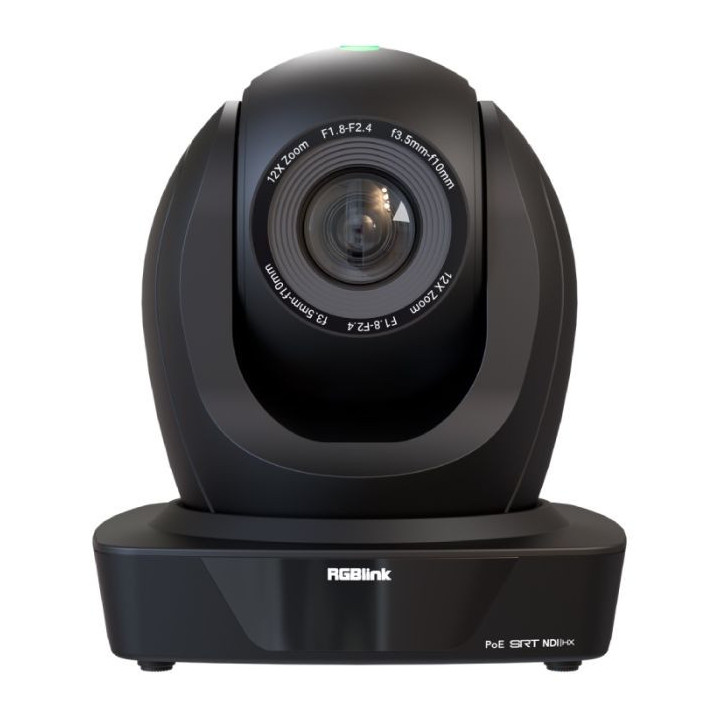

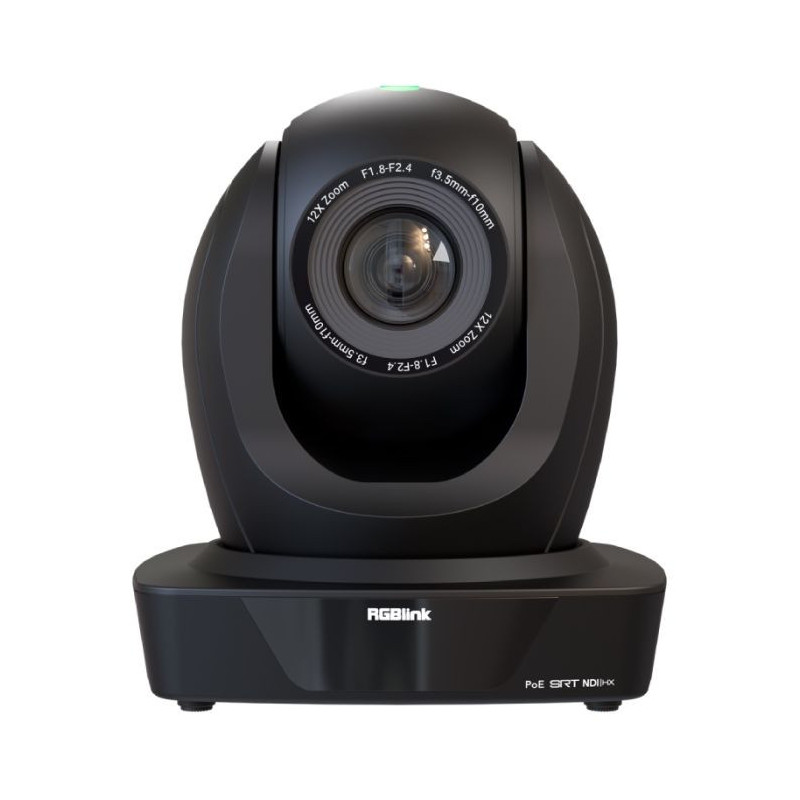

RGBlink - VUE NDI PTZ Camera 12x Optical Zoom
RGBlink RGB12X-PNDI-TLY - VUE NDI PTZ Camera 12x Optical Zoom
1057299
6970447704080
The RGBlink VUE NDI PTZ Camera 12x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60.
Visuals Price
1,033.43 CHF
VAT excl.
1,117.14 CHF Inc. VAT
Manufacturer price 1 033,06 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|

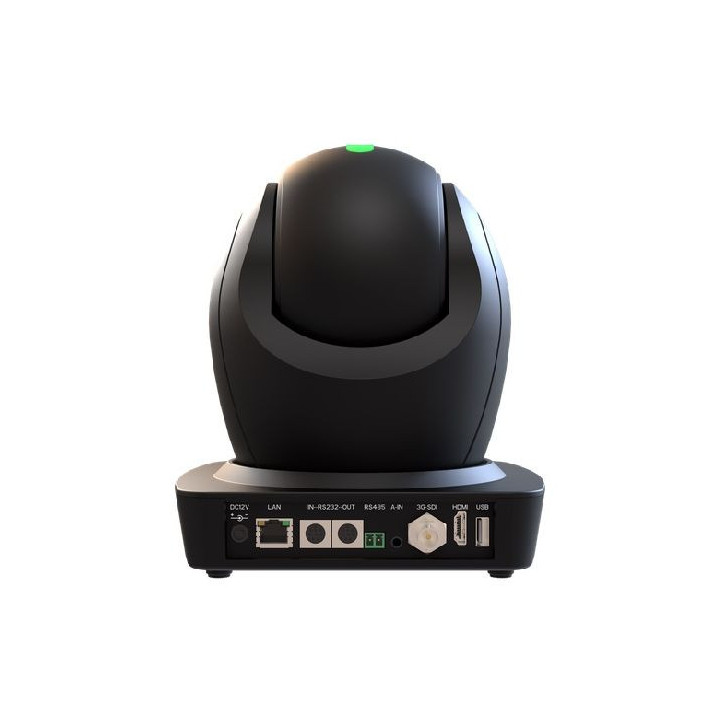

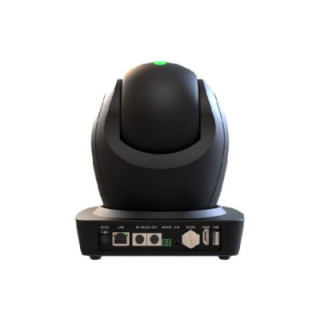

| Interface: | Output 3G SDI 1x BNC HDMI 1x HDMI-A USB 1x USB-A LAN 1x RJ45 Audio IN 1x3.5mm Stereo Jack Control RS232 IN/OUT 2xDIN8 RS485 1x 4-pin terminal Power 1x DC12V Jack |
|
| Performance: | ||
| Video format: | 1080P60 1080P50 1080I60 1080I50 1080P30 1080P25 720P60 720P50 1080P59.94 1080I59.94 1080P29.97 720P59.94 | |
| Optical zoom | f＝4.1～ 49.2mm | |
| View Angle | 6.57°～ 70.28° | |
| AV | F1.8～F2.68 | |
| Digital Zoom | 10X | |
| Minimum illumination | 0.5 lux (F1.8, AGC ON) Auto/Manual/One Push/3000K to 7000K(selectable) |
|
| White Balance | Auto/Manual/One Push/3000K to 7000K(selectable) | |
| Focus | Auto/Manual | |
| Aperture/Electronic Shutter | Auto/Manual | |
| BLC | ON/OFF | |
| WDR | OFF/Dynamic Level Adjustment | |
| Video | Adjustment Brightness/Color/Saturation/Contrast/Sharpness/B/W mode/Gamma curve | |
| SNR | > 55dB | |
| Effective pixels | 2.07m, 16:9 | |
| Pan and Tilt Parameters: | ||
| Pan/Tilt Movement | -170° ～ +170° / '-30° ～ +90° | |
| Pan/Tilt Control Speed | 0.1 ～ 60°/S；0.1～ 30°/S | |
| Preset Speed/Quantity Pan: | 60°/S, Tilt: 30°/S; Up to 255 preset positions (10 remote controls) 360° TALLY full 360° view of TALLY |
|
| General: | ||
| Audio Compression Format | AAC | MP3 | G.711A | |
| Video Compression Format | H.264 | H.265 | Dual streaming output | |
| Output resolutions | 1080p60/59.94/50/30/29.97/25 | 1080i60/59.94/50 | 720p60/59.94/50 | |
| Control Protocol | VISCA | Pelco D | Pelco P | |
| Baud Rate(bps) | 115200 | 9600 | 4800 | 2400bps | |
| Network Protocol | RTSP | RTMP | ONVIF | GB/T28181 | VISCA | |
| Supported Standards | SDI SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB ASI | |
| Input voltage | DC12V/1.5A | |
| Max Power | 12W | |
| Ambient temperature | -10℃～50℃ | |
| Humidity | 20%～80% | |
| Weight: | 1.7kg | |
| Dimensions | (LxWxH): 180 × 188 × 198 mm | |
| Scope of delivery: | 1 x RGBlink VUE NDI PTZ Camera 12x optical zoom 1 x IR remote control (2 x AAA batteries not included) 1 x 230V power supply 1 x RS-232 Serial Cable 1 * Instruction Manual |
|
The RGBlink VUE NDI PTZ Camera 12x Optical Zoom is a professional broadcast PTZ camera in a sleek black design with a tally LED light on top. With its fast, silent rotation and zoom function, it is ideal for smaller productions, live events or in the education sector. Video output is via HDMI, 3G-SDI, USB 2.0 or IP streaming via network at up to 1080p60.
