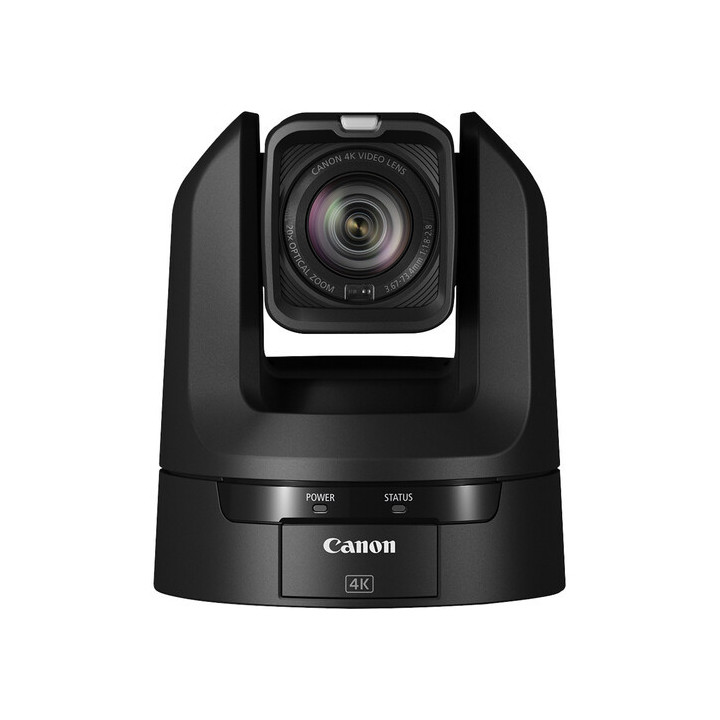

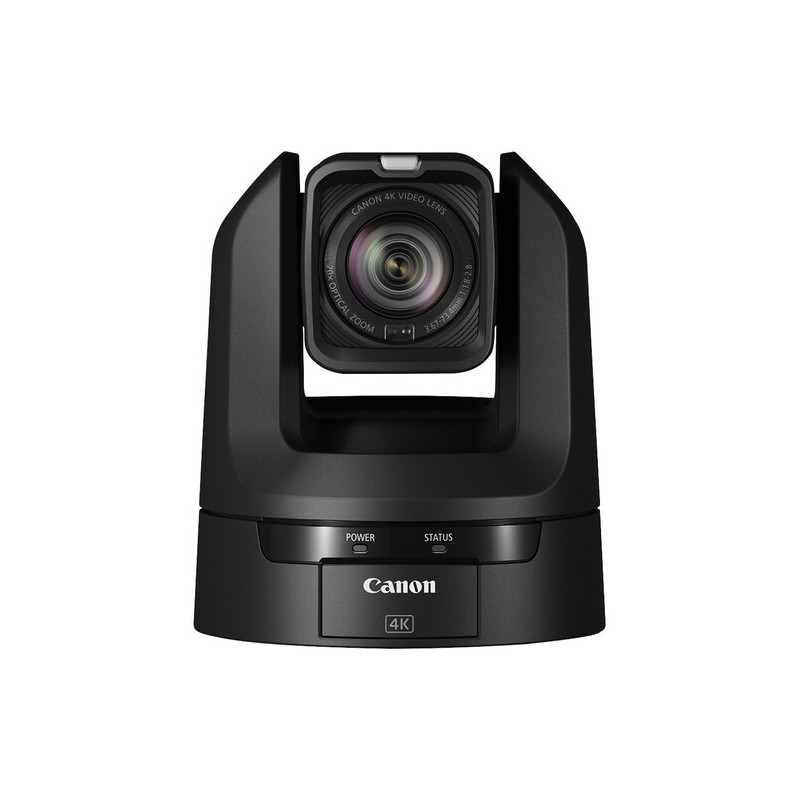

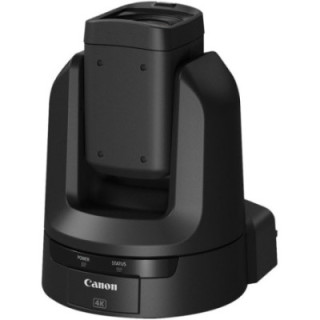

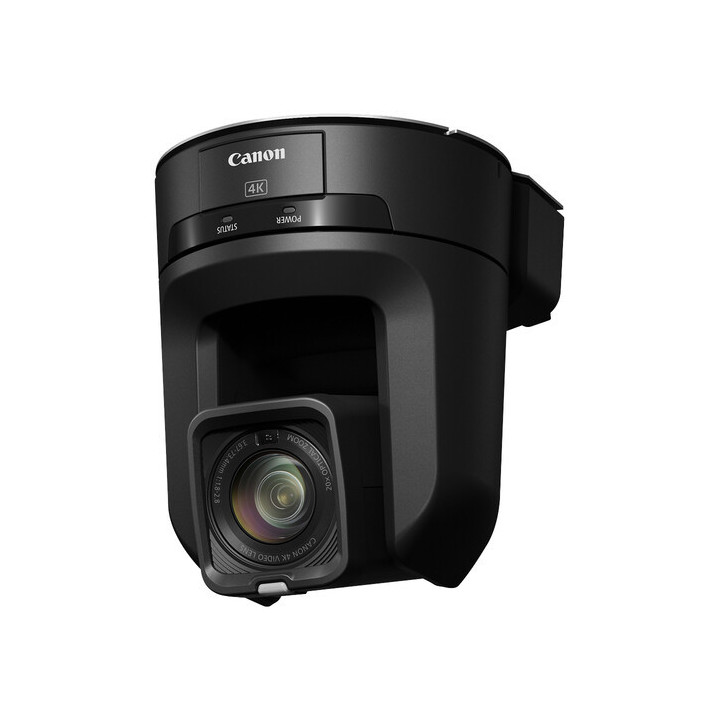

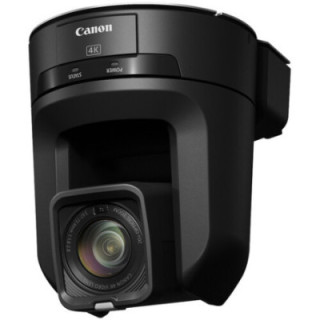

Canon - CR-N100 4K NDI PTZ Camera with 20x Zoom (Satin Black)
Canon 6527C003AA - CR-N100 4K NDI PTZ Camera with 20x Zoom (Satin Black)
1068041
4549292229028
-
AUTHORIZED RESELLER
The CR-N100 features a Canon 1/2.3" UHD 4K CMOS image sensor capable of UHD 4K video capture at 30p and up to 60p in Full HD, making the PTZ camera a strong contender for professional production.
Visuals Price
1,949.03 CHF
VAT excl.
2,106.90 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
|
|
Specifications |
|
| Imaging | ||
| Image sensor | 1/2.3" CMOS | |
| Sensor resolution | Effective: 21.14 megapixels Effective: 8.29 megapixels (3840 x 2160) |
|
| Infrared filter | No | |
| Built-in ND filter | None | |
| Image stabilisation | Built-in lens optics | |
| Focus control | Autofocus Manual focus |
|
| Exposure control | ||
| Shutter type | Progressive electronic shutter | |
| Shutter speed | 1/2000 to 1/6 second | |
| Gain | 0 to 36 dB | |
| Minimum illumination | 1.5 lux at 1/30 shutter speed | |
| Rotation / mirror support | Image rotation, mirror (vertical) | |
| White balance | 2000 to 15,000 K Presets: AWB, manual, Set A, Set B |
|
| Lens | ||
| Focal length | 3.7 to 73.4 mm (35mm equivalent: 29.3 to 601 mm) | |
| Optical zoom ratio | 20x | |
| Maximum digital zoom | 20x | |
| Field of view | Horizontal: 65.6 to 3.6° Vertical: 39.8 to 2° |
|
| Maximum aperture | f/1.8 to 2.8 | |
| Minimum focus distance | Wide angle: 0.4" / 1.0 cm Telephoto: 23.6" / 60.0 cm |
|
| Video capture | ||
| External recording modes | 4:2:2 10-bit via HDMI 3840 x 2160 at 23.98/25/29.97 fps 1920 x 1080p at 23.98/25/29.97/50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps 4:2:0 8-bit via RJ45 3840 x 2160 at 5/14.99/29.97 fps 1920 x 1080p at 5/14.99/29.97/59.94 fps 1280 x 720 at 5/14.99/29.97/59.94 fps 640 x 360 at 5/14.99/29.97/59.94 fps USB HD (1920 x 1080p) at 5/12 fps HD (1280 x 720) at 5/12 fps 640 x 360 at 5/12 fps |
|
| Built-in audio | HDMI | |
| Broadcast output | NTSC/PAL | |
| Gamma curve | Rec709, Standard | |
| IP streaming | H.264, NDI|HX, RTMP, RTMPS, RTP, RTSP, SRT 3840 x 2160 at 5.00p, 14.99p, 29.97p 1920 x 1080 at 5.00p, 14.99p, 29.97p, 59.94p 1280 x 720 at 5.00p, 14.99p, 29.97p, 59.94p 640 x 360 at 5.00p, 14.99p, 29.97p, 59.94p |
|
| Control | ||
| Presets | 100 via IP, VISCA | |
| Movement speed | Pan: 2 to 300°/sec Tilt: 0.2 to 170°/sec |
|
| Movement range | Pan: 340° (-170 to 170°) Tilt: 130° (-30 to 100°) |
|
| Tally indicator | Yes | |
| Supported control protocols | Canon XC IR RS-422 VISCA |
|
| Interface | ||

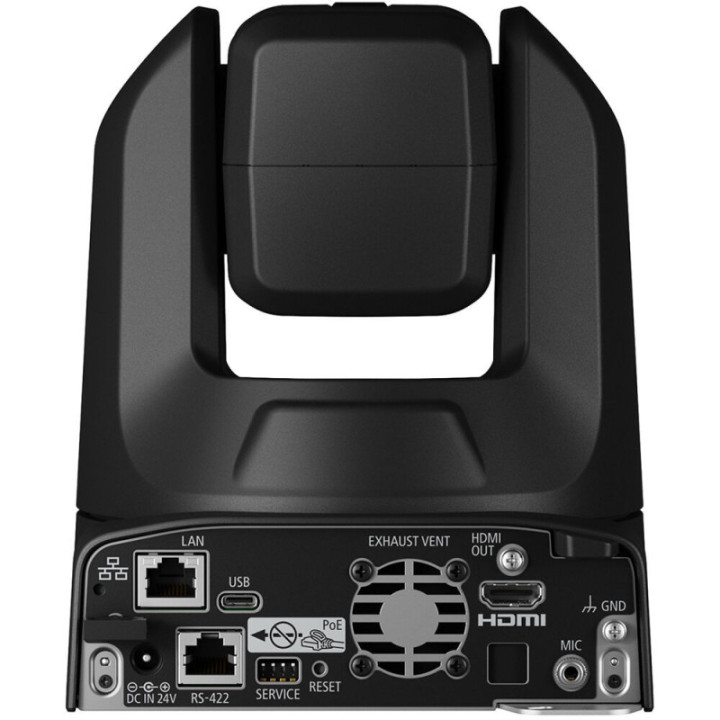

| Video inputs/outputs | 1 x HDMI output (signal unspecified) 1 x RJ45 output (NDI) 1 x USB-C 3.0 / 3.1/3.2 Gen 1 output |
|
| Audio inputs/outputs | 1 x 1/8" / 3.5 mm stereo mini-jack microphone input | |
| Other I/O | 1 x RJ45 input (RS-422, VISCA) 1 x USB-A input |
|
| Built-in speaker | No | |
| Power supply | ||
| PoE support | PoE+ 802.3at | |
| Power inputs/outputs | 1 x barrel jack input (24 VDC) | |
| Power consumption | PoE: 16.2 W Power supply: 24 VDC 13.9 W |
|
| Environment | ||
| Operating temperature | 32 to 104°F / 0 to 40°C | |
| Operating humidity | 10 to 90% | |
| General | ||
| Mounting | 1 x 1/4"-20 female tripod mount | |
| OS compatibility | Windows 10 (64-bit only) macOS 11 *Data from September 2023: Check with manufacturer for latest compatibility |
|
| Mobile app compatible | Yes: Android and iOS Functionality: parameter adjustment, remote control, configuration *Data from November 2022: Check with manufacturer for latest compatibility |
|
| Dimensions (W x H x D) | 6.1 x 7 x 6.5" / 154 x 178 x 164 mm (excluding protrusions) | |
| Weight | 4.9 lb / 2.2 kg | |
