Panasonic - Full-HD 50 / 60p Integrated PTZ Camera with Low-pass Filter

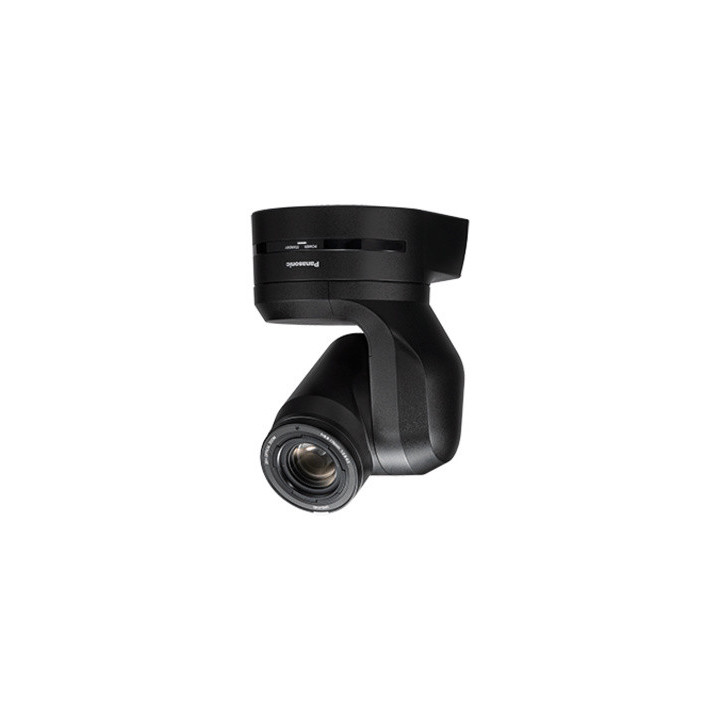

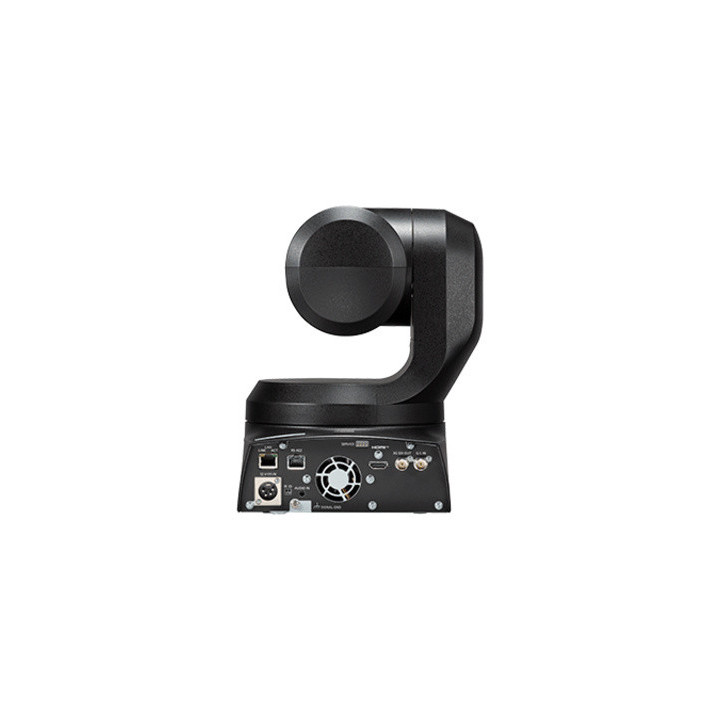

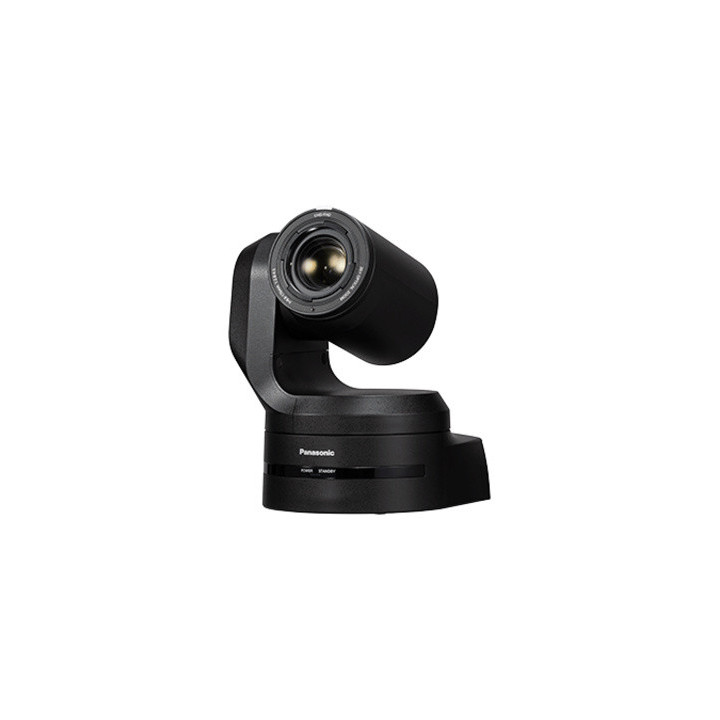

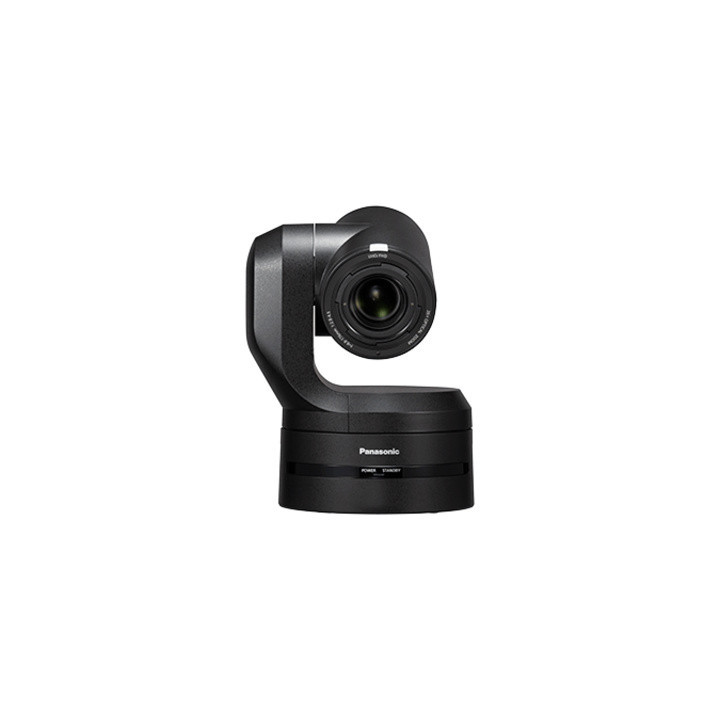

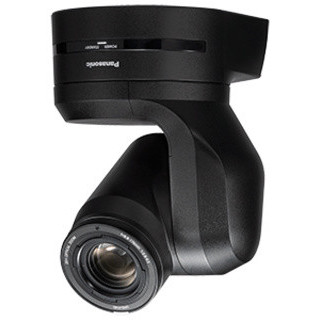

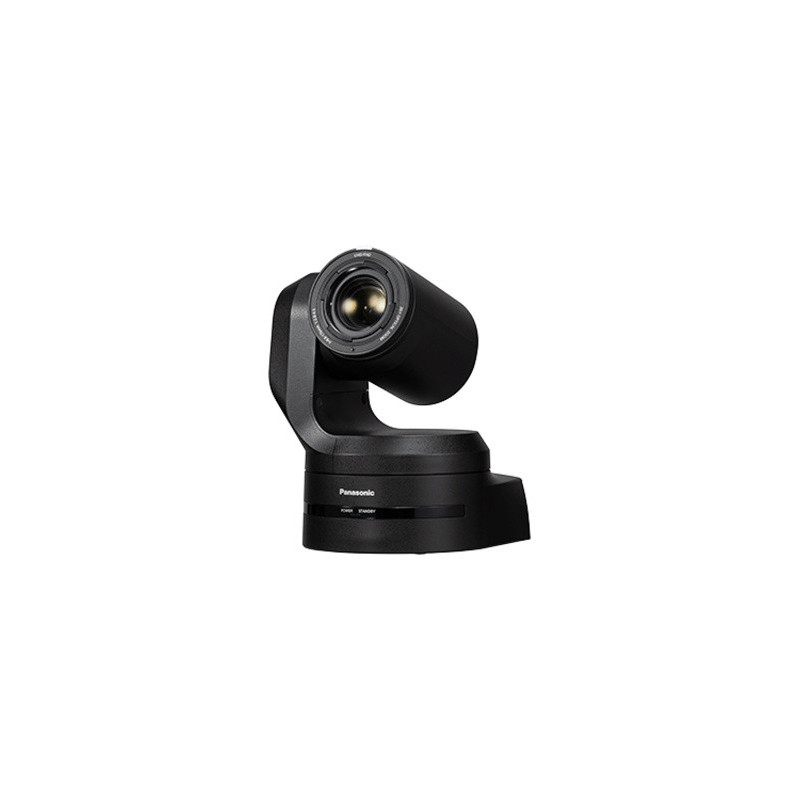

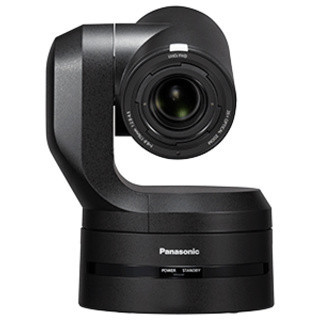

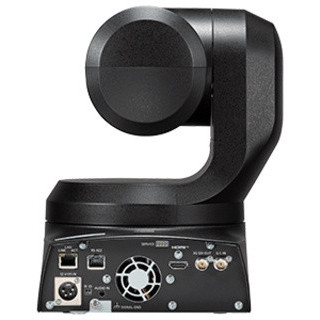

Panasonic AW-HE145KEJ-PPV - Full-HD 50 / 60p Integrated PTZ Camera with Low-pass Filter
1069556
4010869313759
AW-HE145 (Black version) with Low-pass filter
Visuals Price
8,274.97 CHF
VAT excl.
8,945.24 CHF Inc. VAT
Manufacturer price 8 272,00 CHF VAT excluded
Made to order
-
Delivery
-
Delivery time 3 to 5 weeks
Order now, we'll deliver as soon as possible.
Contact us for alternatives:
022 561 07 07.
-
Delivery time 3 to 5 weeks
-
In-store pickup
- Available in 3 to 5 weeks
Panasonic AW-HE145KEJ-PPV - Full-HD 50 / 60p Integrated PTZ Camera with Low-pass Filter specs
| General -> Power Requirements | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| General -> Current Consumption | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| General -> Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| General -> Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| General -> Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| General -> Weight | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| General -> Dimensions | W 213 mm x H 267 mm x D 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| General -> Finish | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| General -> Controller Supported | See the Compatibility Chart for Operation Devices and Application Software page |
| Camera Unit -> Imaging Sensor | 1-type Full-HD MOSx1 |
| Camera Unit -> Effective Pixels | Approx. 20.18 million pixels |
| Camera Unit -> Zoom | Optical zoom: 20x i.Zoom: FHD 32x Digital zoom: 10x |
| Camera Unit -> Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| Camera Unit -> Conversion Lens | Not supported |
| Camera Unit -> Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Camera Unit -> Optical Filter -> ND Filter | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| Camera Unit -> Focus | Switching between auto and manual |
| Camera Unit -> Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Camera Unit -> Color Separation Optical System | 1MOS |
| Camera Unit -> Standard Sensitivity | F9, 2000 lx (When normal mode is selected) |
| Camera Unit -> Minimum Illumination | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| Camera Unit -> Horizontal Resolution -> HD | 1000 TV lines Typ (Center area) |
| Camera Unit -> Gain Selection | Auto, 0 dB to 36 dB Super Gain function equipped: +37 dB to 42 dB |
| Camera Unit -> Frame Mix | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| Camera Unit -> Electronic Shutter Speed | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| Camera Unit -> Synchro Scan | 59.94p/59.94i: 60.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz |
| Camera Unit -> Gamma | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3 / FILM REC / VIDEO REC / HLG |
| Camera Unit -> White Balance | ATW: 3200K, 5600K ATW Speed: Normal / Slow / Fast AWB: AWB-A / AWB-B VAR: 2000K to 15000K selectable |
| Camera Unit -> Chroma Amount Variability | OFF, –99 % to 99 % |
| Camera Unit -> Scene File | Scene1, Scene2, Scene3, Scene4 |
AW-HE145 (Black version) with Low-pass filter
