Sony - IP Remote Control Unit

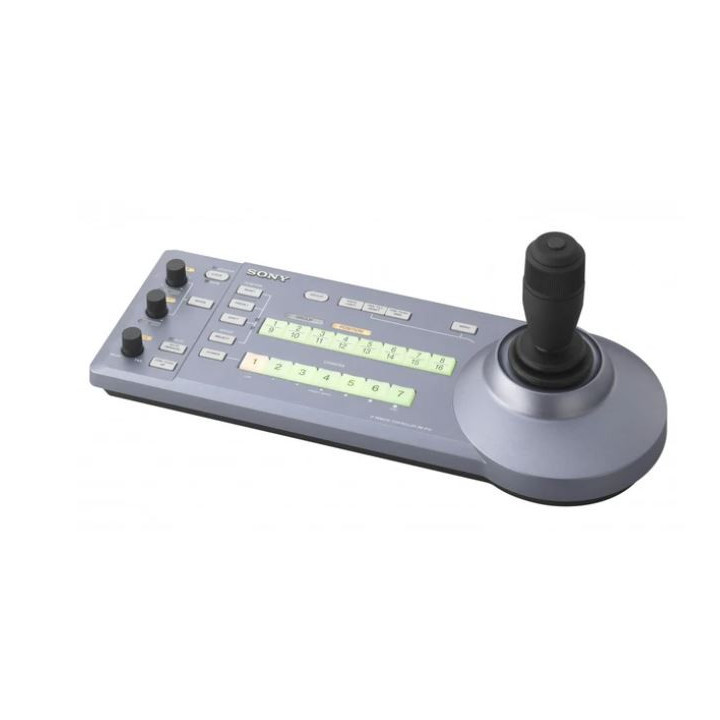

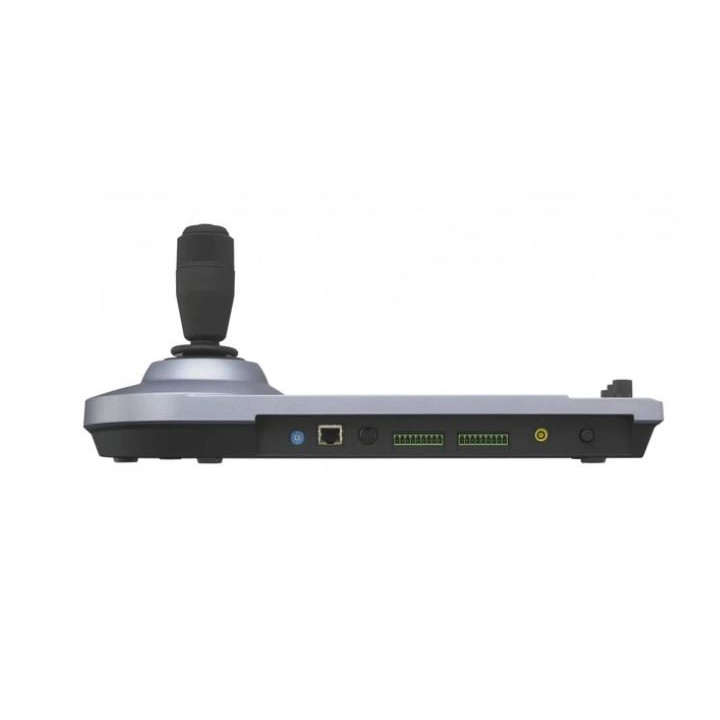

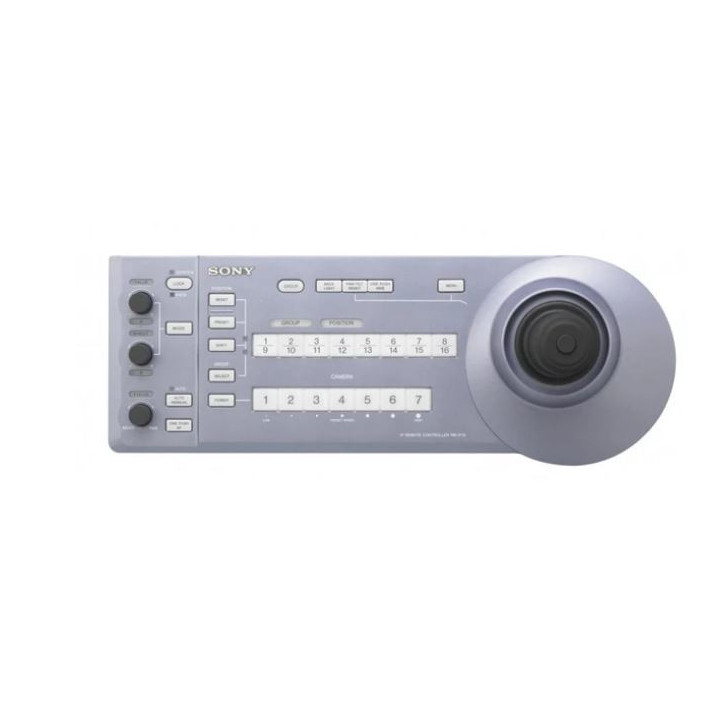

Sony RM-IP10 - IP Remote Control Unit
33106
4905524906578
Ip Remote Control Unit (F. Brc-H900/Z700/Z300 Only)
Visuals Price
1,317.48 CHF
VAT excl.
1,424.19 CHF Inc. VAT
Manufacturer price 1 463,86 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Sony IP Remote Control Unit
Remotely control your remote BRC cameras with the Sony RM-IP10 IP Remote Controller over an IP network. The RM-IP10 can control up to 112 BRC cameras using a combination of IP and serial communication, and up to five RM-IP10 controllers can operate on the same local network.
The RM-IP10 operates on your local network using its RJ45 port and works in a standard VISCA IP network, providing control for up to seven BRC cameras. It can also control cameras using VISCA RS-232 and RS-422 serial communication. The controller can store up to 16 preset combinations such as zoom, pan/tilt position, focus, and backlight to save time in camera movements and settings.
Available controls include a joystick for pan/tilt/zoom operations, buttons for brightness/white balance/focus, buttons for group/reset/backlight/autofocus/auto white balance, and seven camera selection buttons.
Compatibility
The RM-IP10 is compatible with Sony BRC camera models:
- BRC-H900
- BRC-Z330
- BRC-Z700
It is also compatible with the following cameras when equipped with the BRBK-IP10 option board:
- BRC-X400
- SRG-X400
- SRG-X120
- BRC-H900
- BRC-H900
- BRC-H800
- BRC-X1000
- SRG-300SE
- SRG-300H
- SRG-120DU
- SRG-120DH
- SRG-120DS
It is also compatible with the following camera when equipped with the BRBK-IP7Z option board:
- BRC-Z700
Operating System Requirements
- Microsoft Windows 7, 32-/64-bit
- Windows 8.1 Pro, 32-/64-bit
- Windows 10 Pro, 32-/64-bit
Computer Requirements
- Intel Core 2 Duo 2.4 GHz or higher
- 1 GB or more RAM
- 50 MB or more hard drive space
- RJ45 Ethernet port 10/100
Features
- Comfortable PTZ operation with the 3-axis optical joystick
- Versatile camera adjustment through simple panel operation
- IP technology enables flexible installation and easy operation
- Preset function saves camera settings (up to 16 positions)
Remotely control your remote BRC cameras with the Sony RM-IP10 IP Remote Controller over an IP network. The RM-IP10 can control up to 112 BRC cameras using a combination of IP and serial communication, and up to five RM-IP10 controllers can operate on the same local network.
The RM-IP10 operates on your local network using its RJ45 port and works in a standard VISCA IP network, providing control for up to seven BRC cameras. It can also control cameras using VISCA RS-232 and RS-422 serial communication. The controller can store up to 16 preset combinations such as zoom, pan/tilt position, focus, and backlight to save time in camera movements and settings.
Available controls include a joystick for pan/tilt/zoom operations, buttons for brightness/white balance/focus, buttons for group/reset/backlight/autofocus/auto white balance, and seven camera selection buttons.
Compatibility
The RM-IP10 is compatible with Sony BRC camera models:
- BRC-H900
- BRC-Z330
- BRC-Z700
It is also compatible with the following cameras when equipped with the BRBK-IP10 option board:
- BRC-X400
- SRG-X400
- SRG-X120
- BRC-H900
- BRC-H900
- BRC-H800
- BRC-X1000
- SRG-300SE
- SRG-300H
- SRG-120DU
- SRG-120DH
- SRG-120DS
It is also compatible with the following camera when equipped with the BRBK-IP7Z option board:
- BRC-Z700
Operating System Requirements
- Microsoft Windows 7, 32-/64-bit
- Windows 8.1 Pro, 32-/64-bit
- Windows 10 Pro, 32-/64-bit
Computer Requirements
- Intel Core 2 Duo 2.4 GHz or higher
- 1 GB or more RAM
- 50 MB or more hard drive space
- RJ45 Ethernet port 10/100
Features
- Comfortable PTZ operation with the 3-axis optical joystick
- Versatile camera adjustment through simple panel operation
- IP technology enables flexible installation and easy operation
- Preset function saves camera settings (up to 16 positions)
|
|
Specifications |
|
|
General |
|
|
|
Number of Supported Cameras |
112 channels via IP |
|
|
Supported Control Protocols |
VISCA |
|
|
Control Interface |
1 x 8-Pin Mini-DIN Output (RS-232) |
|
|
Other I/O |
1 x 9-Pin DIN Output (RS-422) |
|
|
Power |
|
|
|
Power Connectors |
1 x JEITA |
|
|
Power Consumption |
3.6 W |
|
|
DC Power Input |
10 to 13.2 VDC at 0.3 A |
|
|
Environment |
|
|
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
|
|
Physical |
|
|
|
Dimensions |
15.5 x 6.5 x 5.75" / 391.3 x 165 x 145.9 mm |
|
|
Weight |
2.1 lb / 950 g |
Ip Remote Control Unit (F. Brc-H900/Z700/Z300 Only)
