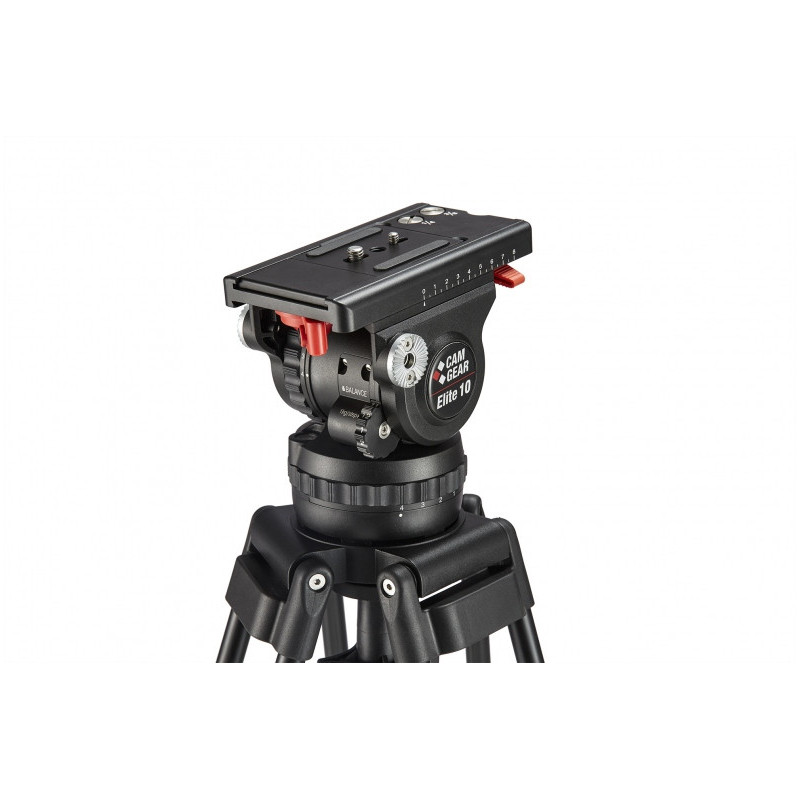

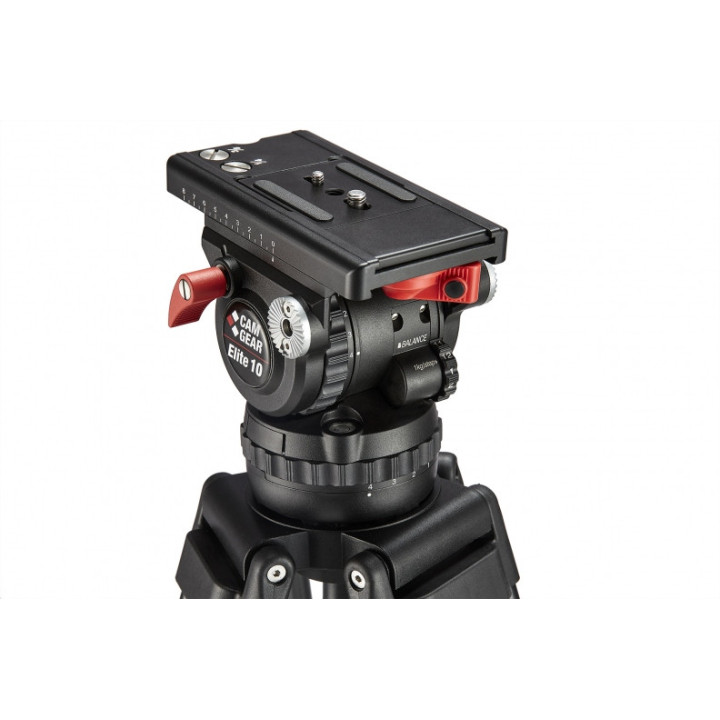

Camgear - Elite 10 Fluid Head

Camgear CMG-EL10-FLHEAD - Elite 10 Fluid Head

1009179
8718591677335
Camgear CMG-EL10-FLHEAD - Elite 10 Fluid Head
Camgear CMG-EL10-FLHEAD - Elite 10 Fluid Head
Camgear CMG-EL10-FLHEAD - Elite 10 Fluid Head
Camgear CMG-EL10-FLHEAD - Elite 10 Fluid Head
Fluid Head incl. Elite Wedge Plate TNG-16 & Elite Pan Bar ELPB-1
... learn more
Visuals Price
1,123.38 CHF VAT excl.

1,214.37 CHF Inc. VAT

Manufacturer price 1 221,06 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 2 to 3 weeks
  • In-store pickup
    • Available in 2 to 3 weeks

Camgear CMG-EL10-FLHEAD
The Elite 10 fluid head is designed for configurations up to 12 kg/26.4 lbs. The 12-position counterbalance adjustment system allows for finer and faster adjustments for virtually perfect balance. The camera can easily switch from tripod mode to handheld mode and vice versa thanks to the quick-release lever, allowing the camera and plate to release in a single secure movement. Perfect support for today's digital cinema cameras, such as the Sony PXW-FS7, Canon EOS C200/C300/C300MARK II, Blackmagic URSA Mini Pro and Panasonic AU-EVA1.
The Elite 10 tripod systems are supplied with the matching patented 100 mm Elite 3S-FIX Quick Lock & Release tripod, with a capacity of 50 kg/110 lbs, an illuminated spirit level with parking positions for the sliding plate screw and the integrated screw wrench for ease of use.




Specifications



Model number

Elite 10

Maximum load

12 kg/26.5 lbs

Camera plate type

Elite Wedge Plate TNG-16

Sliding range

80 mm/3.15 in

Camera plate

1/4" screw, 3/8" screw

Counterbalance system

12 positions (1-12)

Pan and tilt friction

4 positions (1-4)

Pan and tilt range

Pan: 360° / Tilt: +90/-75°

Temperature range

-40°C to +60°C/-40 to +144°F

Spirit level

Illuminated touch spirit level

Weight

3.3 kg/7.28 lbs

Bowl diameter

100 mm

Fluid Head incl. Elite Wedge Plate TNG-16 & Elite Pan Bar ELPB-1
