Yamaha STAGEPAS 400BT - Stereo PA System

1010745
4957812624589
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Yamaha STAGEPAS 400BT - Stereo PA System
Stereo PA System, Powermixer with 2 x 200 Watt (10 Inputs, 4x Mic/Line, 2x Stereo/Line), With Bluetooth for audio, SPX Reverb
... learn more
Visuals Price
671.44 CHF VAT excl.

725.83 CHF Inc. VAT

Manufacturer price 763,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

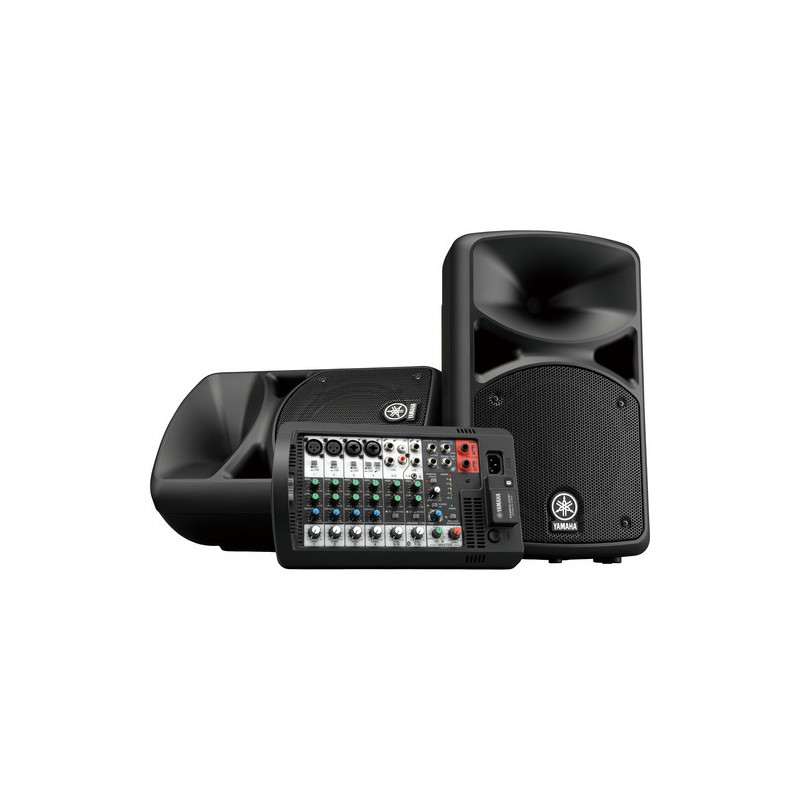

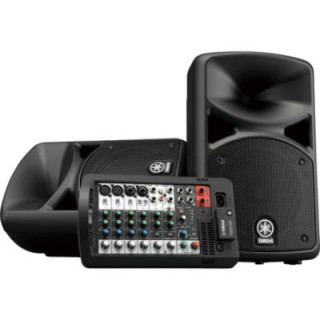

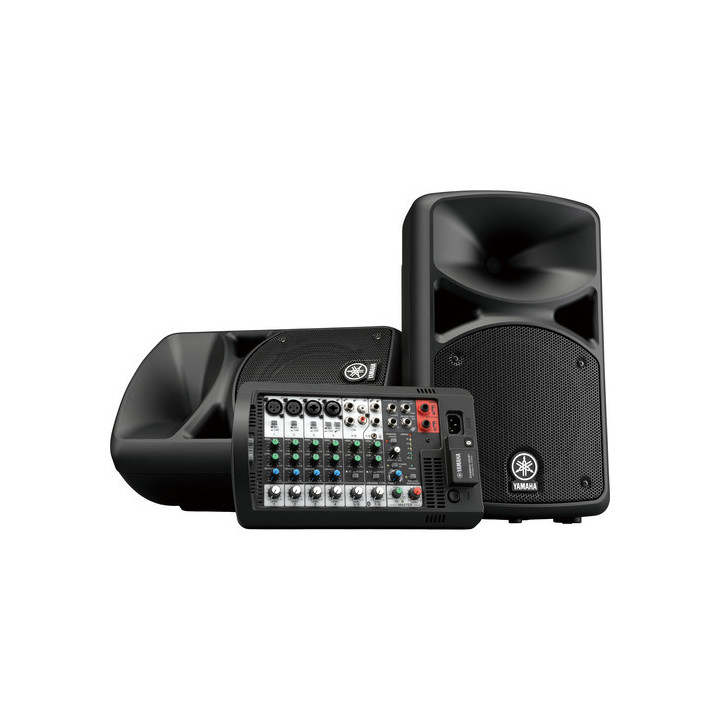

Yamaha STAGEPAS 400BT portable PA system with Bluetooth
The Yamaha STAGEPAS 400BT portable PA system with Bluetooth is an all-in-one audio system light and compact enough to be carried by hand. It delivers 400 W of output power, features a detachable 8-channel mixing console and is flexible enough to be used in a variety of environments and applications.
The STAGEPAS PA system is equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets. Other features include: SPX digital reverb, one-knob master equaliser and feedback suppressor to prevent the annoying feedback that affects so many novice and professional sound engineers. Add more bass to your system by connecting a powered subwoofer (sold separately).
Finally, delivering 400 W of power respectively, the STAGEPAS system offers a major performance improvement, allowing you to meet the demands of a wider range of situations. Features
.Bluetooth audio streaming
.Switchable stereo/mono inputs

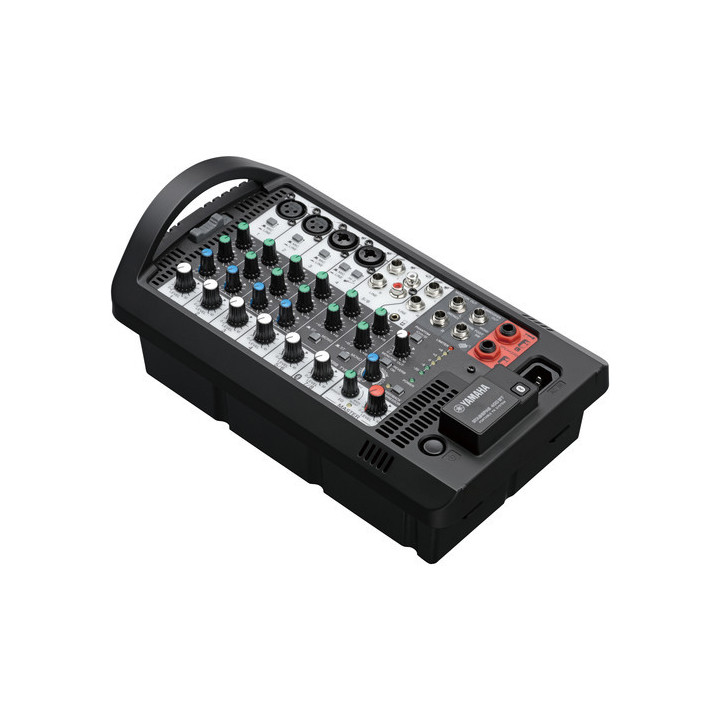

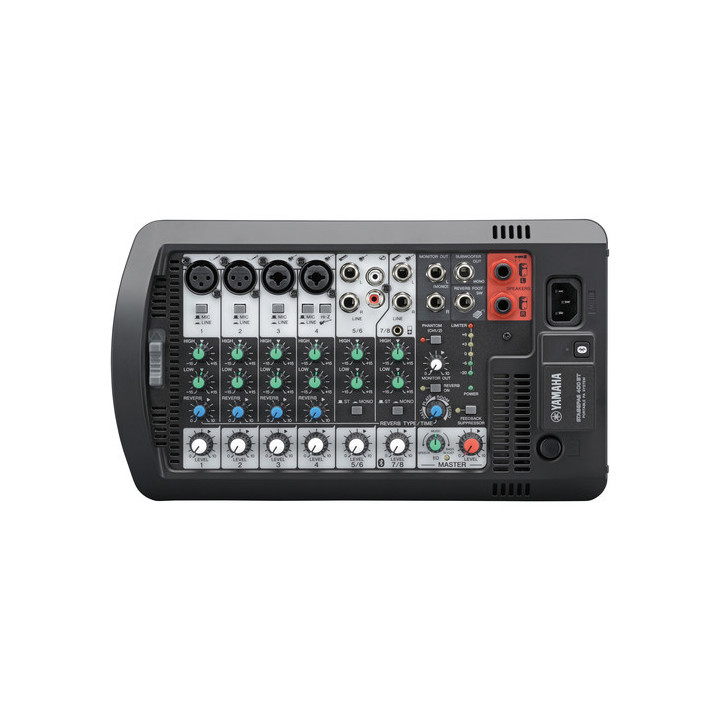

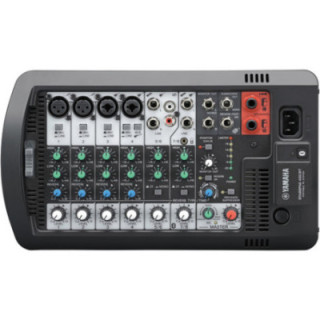

.Detachable 8-channel mixing console
.400 W output power
.Hi-Z (high impedance) inputs
.Monitor and subwoofer outputs
.One-knob master equaliser with virtual bass enhancement
.Phantom power
.Optional reverb pedal




Specifications



Type

Powered mixing console with 2 passive speakers

Channel

8

Input channels

Hi-Z switch: CH4, ST/Mono switch: Ch 5/6-7/8

Output channel function

Feedback suppressor, one-knob master equaliser

I/O



Inputs

4 x mono mic/line + 4 mono line/2 stereo

Phantom power

+30 V (Ch1, 2)

Outputs

Speaker outputs (L, R) Monitor output (L/Mono, R) Subwoofer output (mono) with automatic HPF

Bluetooth

Bluetooth ver 4.1, A2DP ver 1.2, Maximum range: Approximately 32.8' / 10.0 m

Other controls

Reverb pedal

Input channel function

Channel 4 Hi-Z Low-pass filter: 100 Hz

DSP

SPX digital reverb (4 programmes, parameter control)

Maximum output

At 4 Ohms: 400 W (200 W + 200 W) (dynamic), 360 W (180 W + 180 W) (continuous)

General



Speaker type

Two-way bass-reflex speakers

Frequency range

55 Hz to 20 kHz

Nominal coverage angle

H: 90° V: 60° Stage monitor: 50°

Components

8" / 20 cm cone 1.0" / 2.54 cm moving coil compression driver

Maximum output level

125 dB SPL / speaker

Power supply

100 to 240 V AC, 50/60 Hz

Power consumption

30 W (standby), 70 W (1/8 power)

Speaker stand mount

34.8 to 35.2 mm socket with StageLok

Other features

Handle: 1 x top

Dimensions (W x H x D)

Speaker: 11.4 x 18.6 x 10.8" / 28.9 x 47.2 x 27.5 cm Mixing console: 12.1 x 7.1 x 4.6" / 30.8 x 18.0 x 11.6 cm

Weight

40.3 lb / 18.3 kg
Stereo PA System, Powermixer with 2 x 200 Watt (10 Inputs, 4x Mic/Line, 2x Stereo/Line), With Bluetooth for audio, SPX Reverb
