Stereo PA System, Powermixer with 2 x 340 Watt (10 Inputs, 4x Mic/Line, 2x Stereo/Line), With Bluetooth for audio, SPX Reverb
... learn more
Visuals Price
1,047.20 CHF VAT excl.

1,132.02 CHF Inc. VAT

Manufacturer price 1 190,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

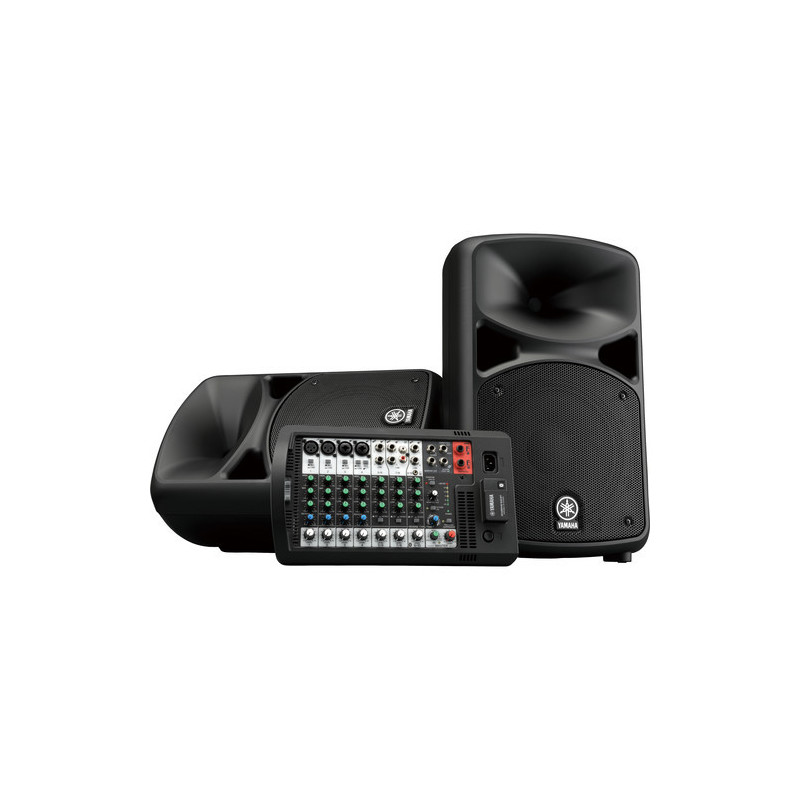

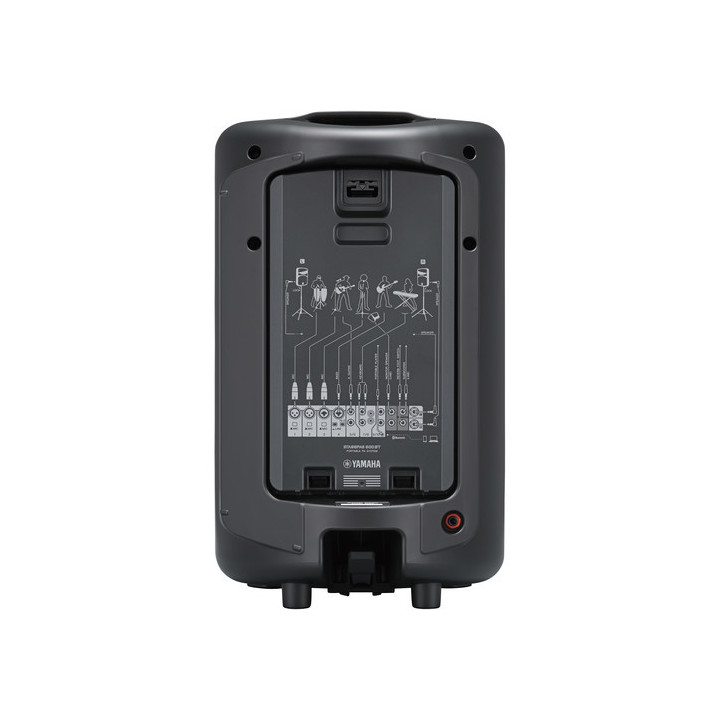

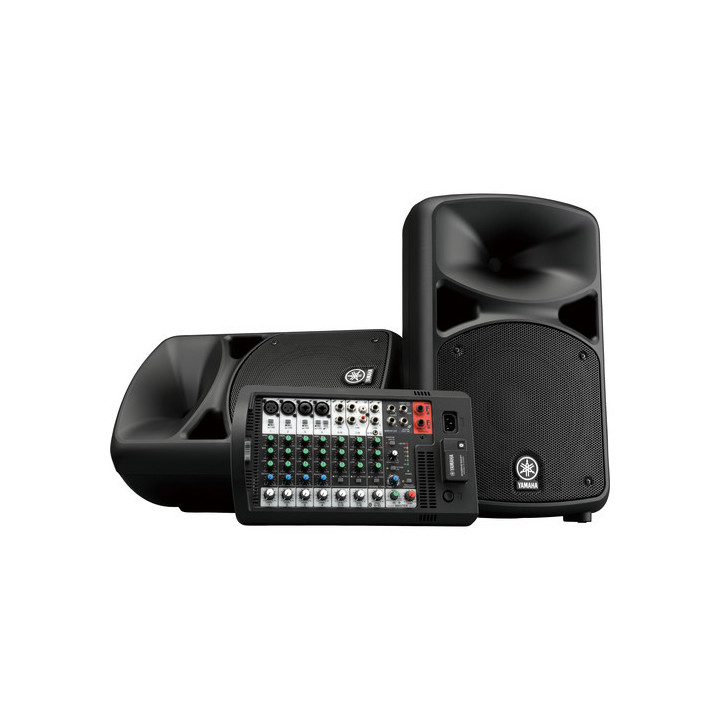

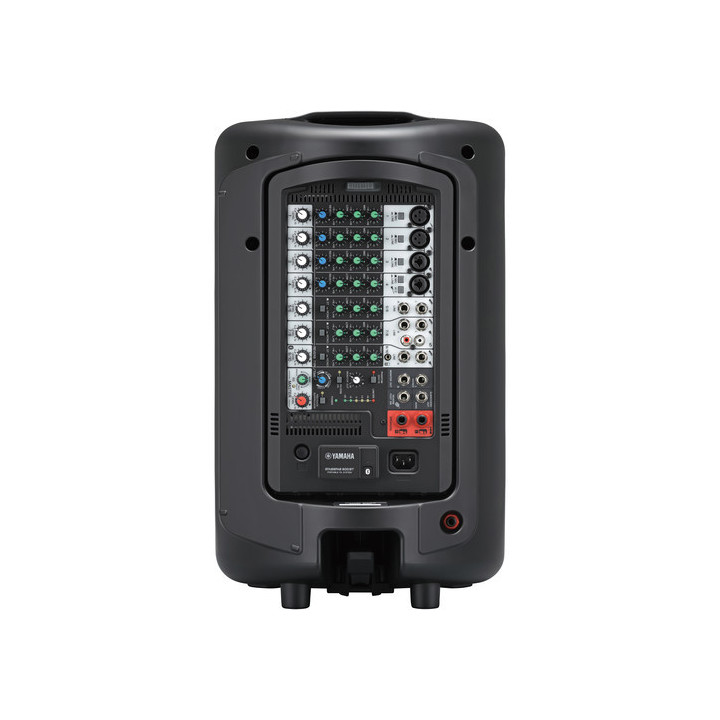

Yamaha STAGEPAS 600BT Portable PA System with Bluetooth
The Yamaha STAGEPAS 600BT portable PA system with Bluetooth is an all-in-one sound reinforcement solution that is lightweight and compact enough to be carried by hand. It offers 680W of output power, a detachable 10-channel mixing console, and is flexible enough to be used in various situations and applications.
The STAGEPAS PA system is equipped with a Bluetooth input for wireless audio streaming from smartphones or tablets. Other features include: SPX digital reverb, single-knob master EQ and feedback suppressor to prevent the feedback that plagues so many novice and professional sound reinforcement users. Add more bass to your system by connecting a powered subwoofer (sold separately).
Finally, delivering 680W of power respectively, the STAGEPAS system offers a major performance upgrade, allowing you to meet the demands of a wider range of situations. Features
- Bluetooth audio streaming
- Switchable stereo/mono inputs

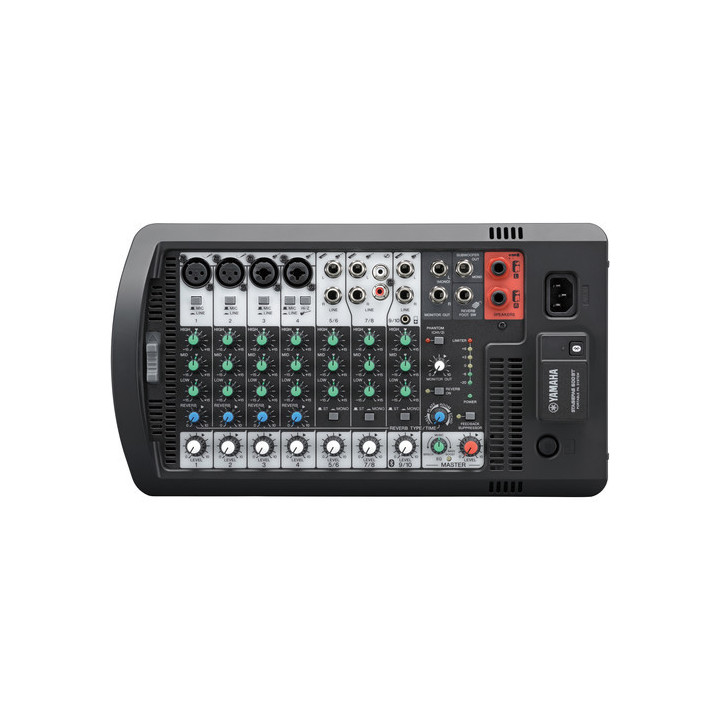

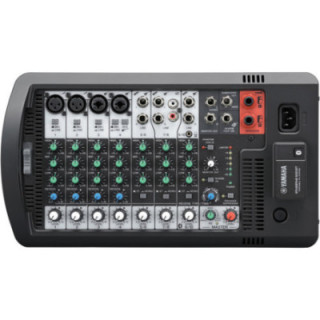

- Detachable 10-channel mixing console
- Output power 680W
- Hi-Z (high impedance) inputs
- Monitor and subwoofer outputs
- Single-knob master EQ with virtual bass boost
- Phantom power
- Optional reverb footswitch




Technical specifications



Type

Powered mixer with 2 passive speakers

Channel

10

Input channels

Hi-Z switch: CH4, ST/Mono switch: Ch 5/6-9/10

Output channel function

Feedback suppressor, single-knob master EQ

I/O



Inputs

4 x mono mic/line + 4 mono /2 stereo line

Phantom power

+30 V (Ch1, 2)

Outputs

Speaker outputs (L, R) Monitor output (L/Mono, R) Subwoofer output (mono) with auto HPF

Bluetooth

Bluetooth ver 4.1, A2DP ver 1.2, Maximum range: Approximately 32.8' / 10.0 m

Other controls

Reverb footswitch

Input channel function

Hi-Z Channel 4 Low Shelving: 100 Hz Mid Peaking: 2.5 kHz

DSP

SPX digital reverb (4 programs, parameter control)

Maximum power

At 4 Ohms: 680 W (340 W + 340 W) (dynamic), 560 W (280 W + 280 W) (continuous)

Mid EQ

Mid Peaking: 2.5 kHz

General



Speaker type

2-way bass-reflex speakers

Frequency range

55 Hz to 20 kHz

Nominal coverage angle

H: 90° V: 60° Floor monitor: 50°

Components

10" / 25 cm cone 1.4" / 3.56 cm moving coil compression driver

Maximum output level

129 dB SPL / speaker

Power requirements

100 to 240 VAC, 50/60 Hz

Power consumption

35 W (idle), 100 W (1/8 power)

Pole socket

34.8 to 35.2 mm pole socket with StageLok

Other features

Handle: 1 x top

Dimensions (W x H x D)

Speaker: 13.2 x 21.5 x 12.6" / 33.5 x 54.5 x 31.9 cm Console: 13.7 x 7.8 x 5.3" / 34.8 x 19.7 x 13.5 cm

Weight

56.4 lb / 25.6 kg
