Datavideo SE-3200 - 12-input digital video mixer (Separate unit)
The SE-3200 is a professional 12-channel 1080p video mixer that offers powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP and WIPE transitions. There are also other features like image storage, animated transition effects, multi-channel inputs and numerous visual effects. The built-in captioning system can be paired with Datavideo's CG software to instantly create broadcast-quality captions.

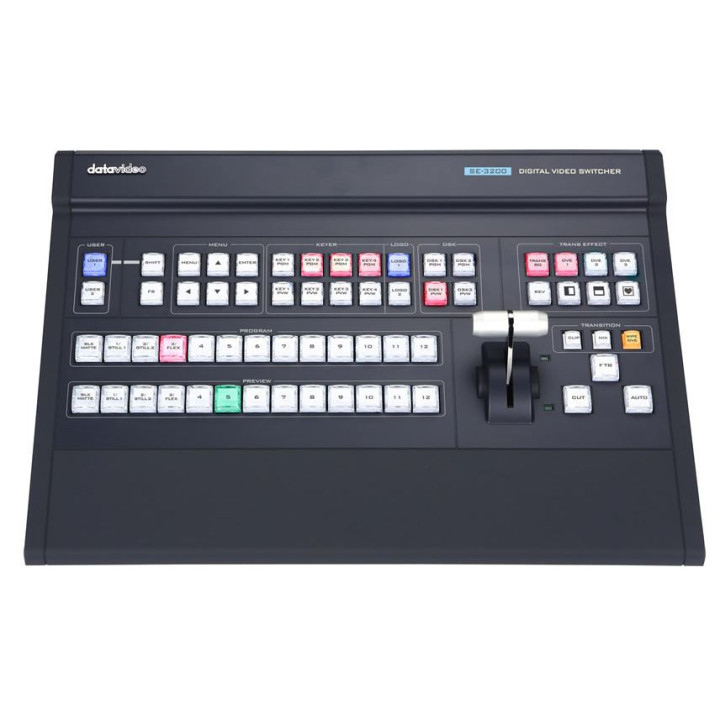

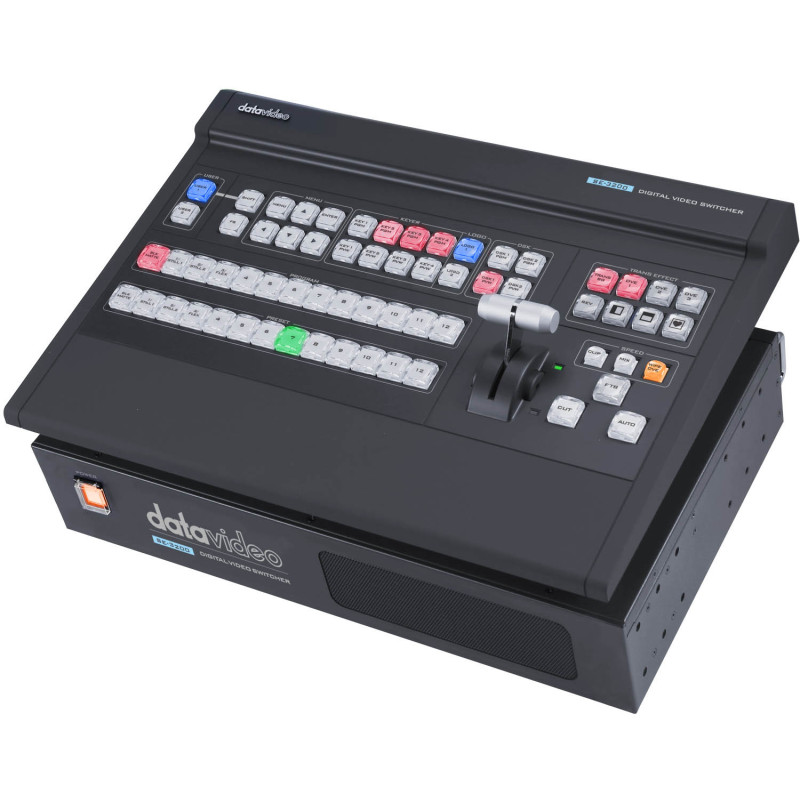

The modular design of the SE-3200 allows the 2U main unit to be installed in a standard 19-inch rack and the control panel to be placed on a flat work surface, or it can be installed in a mobile broadcast vehicle. The SE-3200 facilitates video switching, whether indoors or outdoors.
Features
- Supports full 1080P (3G)
- 4 upstream keyers for chromakey, linear and luma keys, as well as image keying
- 2 downstream keyers for generating different effects
- 4 broadcast-quality keyers with 50 built-in virtual sets
- 9 built-in Stinger transition effects
- 12 video input channels: 8 x SDI and 4 x HDMI
- 9 video output channels: 6 x SDI and 3 x HDMI
- 4 upstream keyers for chromakey, linear and luma keys, as well as image keying
- 8 Picture-in-Picture (4 flex sources included), with configurable ratio, position and size
- 2 downstream keyers for linear and luma keys
- 2 static or animated logos with configurable position and size
- WIPE, MIX, DVE and CUT transitions
- 32 WIPE patterns such as circle and heart with adjustable border width and colour softness
- Supports stinger transition for live sports broadcasting
- Any input (1-12) can be used as image storage
- Supports XPT (Cross Point Assignment)
- 4 XLR analogue audio input channels with four audio tracks per channel
- 2 de-embedded analogue XLR audio output channels
- Dual-colour tally outputs (red/green)
- Compatible with Tri-Level and Black Burst sync references
- 2 user memory presets available




Specifications



Mixer type

HD video mixer

Available inputs

12-input mixer

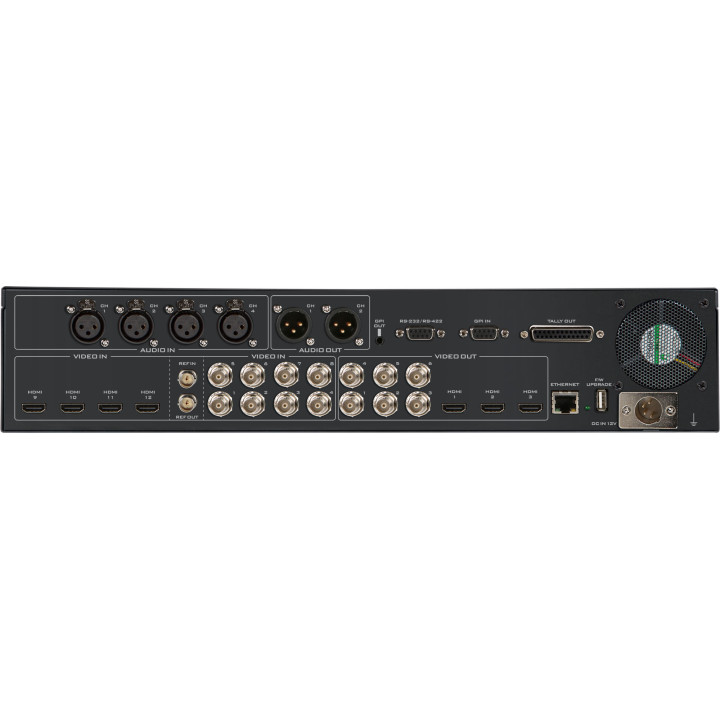

Connections



Video inputs

3G/HD/SD-SDI (BNC) x8

HDMI x4

Video outputs

3G/HD-SDI (BNC) x6 -> (Assignable outputs: PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12.

HDMI x 3 -> (Assignable outputs: Multiview, PGM, PVW, PG + DSK, Clean PGM, Clean PVW, Input 1-12)

Audio inputs

3-pin analogue XLR x4

Integrated 2-channel SDI audio x8

Integrated 2-channel HDMI audio x4

Audio outputs

3-pin analogue XLR x2

3.5mm Headphone jack x1

Integrated 2-channel SDI audio x6

Integrated 2-channel HDMI audio x3

PC connections

USB

RS-232

GPI

Ethernet RJ-45

Other connections

Genlock input (BNC)

Genlock output (BNC)

25-pin Tally

General



Supported resolutions

HD 720: 1280x720pixels (16:9 ratio)

HD 1080: 1920x1080pixels (16:9 ratio)

Supported images

50iP/60P @1920x1080Pixel
50i/60i @1920x1080Pixel
50P/60P @1280x720Pixel

Built-in synchroniser

Yes

DVE

Yes

PIP

Yes, 8x PIP (4x PIP, 4x Source Flex)

Chroma keyer

Yes

Internal character generator

No

Logo insertion

Yes

DSK-Graphics

Yes

Number of DSK layers

2

Virtual sets

No

External key and fill support

Yes

Live streaming

No

Recording

No

Audio mixing

No

Video playlist

No

Replay

No

Slow motion

No

Tally support

Yes

Rack mountable

Yes

Extras

Full M/E preview function.
Wipe, Mix & Cut transitions.
XPT (Cross Point Assignment).
Easy-to-use on-screen menu for quick parameter setting.

Power supply

4-pin XLR DC input

Power adapter

Power consumption

69 Watts (12V/5.75A)

Physical characteristics



Total weight (KG)

6.5

Overall dimensions (WxHxD) (mm)

432x155x313
