Datavideo - Mobile Production System, 2 racksystem
Datavideo 2200-3201 - OBV-3200 - Mobile Production System, 2 racksystem
1018449
HD 12 Channel Portable production unit (2-racks), with SE-3200 and advanced camera control
PRICE ON REQUEST
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks

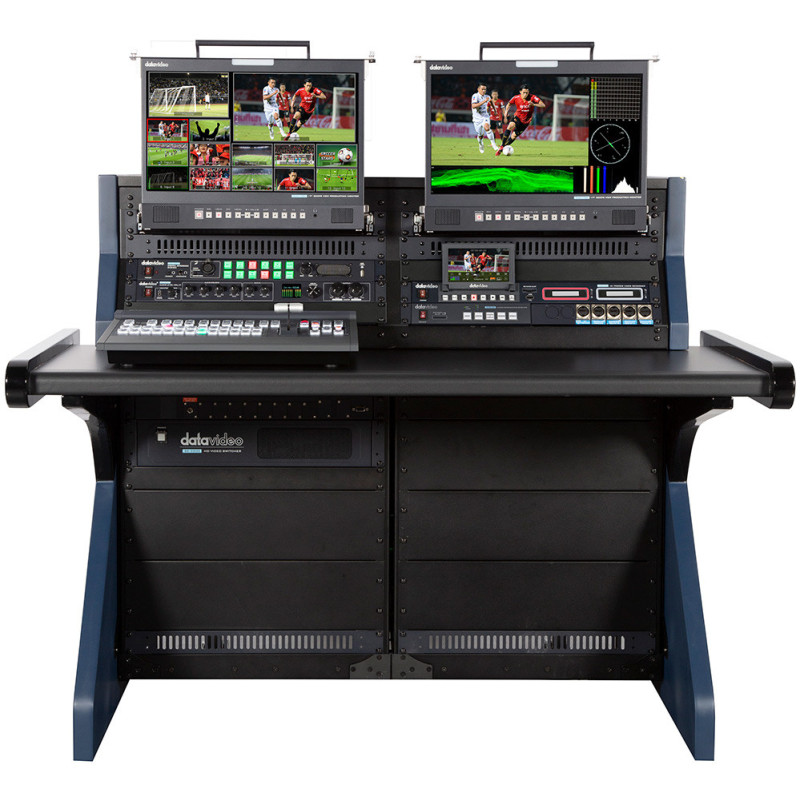

Datavideo Mobile Production System, 2 rack systems
Compact transportable solution for studio and outdoor productions
A complete solution equipped with a mixer, intercom, camera control, recording, streaming, audio delay, scope monitor and power supply.
A true mobile studio for your needs
Mobile video studios are all-in-one video production studios in a robust aluminium case and can be customised to fit in an OB van.
Suitable for large-scale productions

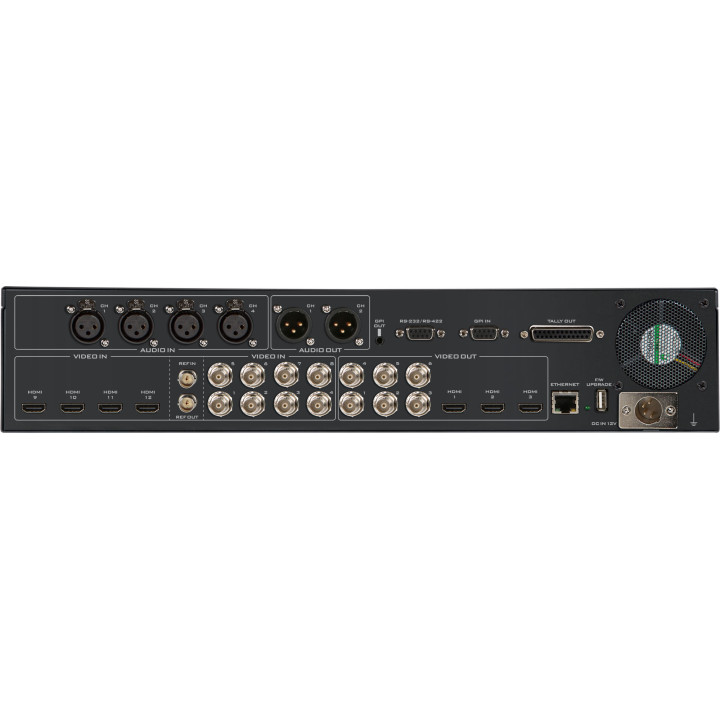

The OBV-3200 supports up to 12 inputs in resolutions up to 1080p50/60, and has a total of 9 HDMI and SDI outputs.

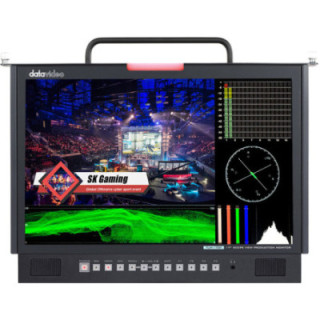

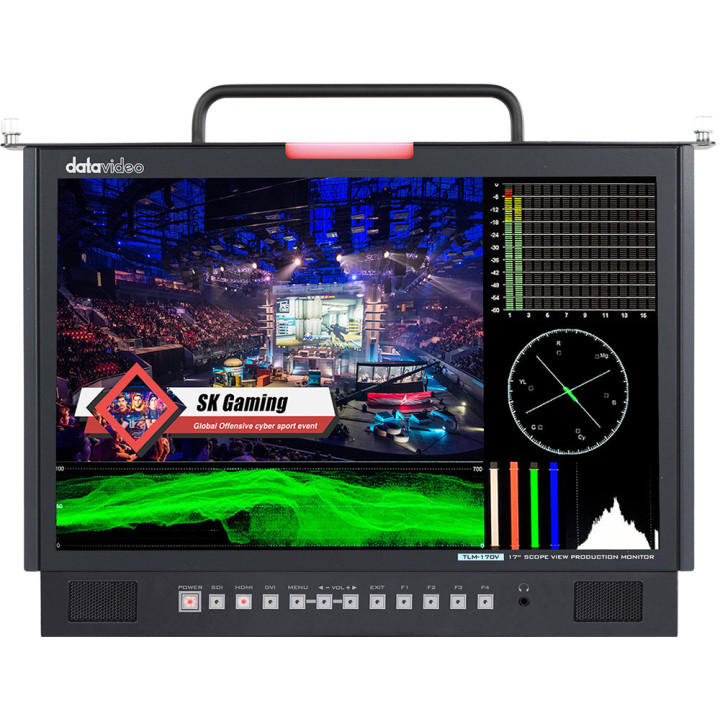

Extractable 17.3" Full HD monitor
Column support (YRGB parade), time code, waveform monitor, vectorscope and audio level meter, peaking, zoom, pixel to pixel, underscan, check field

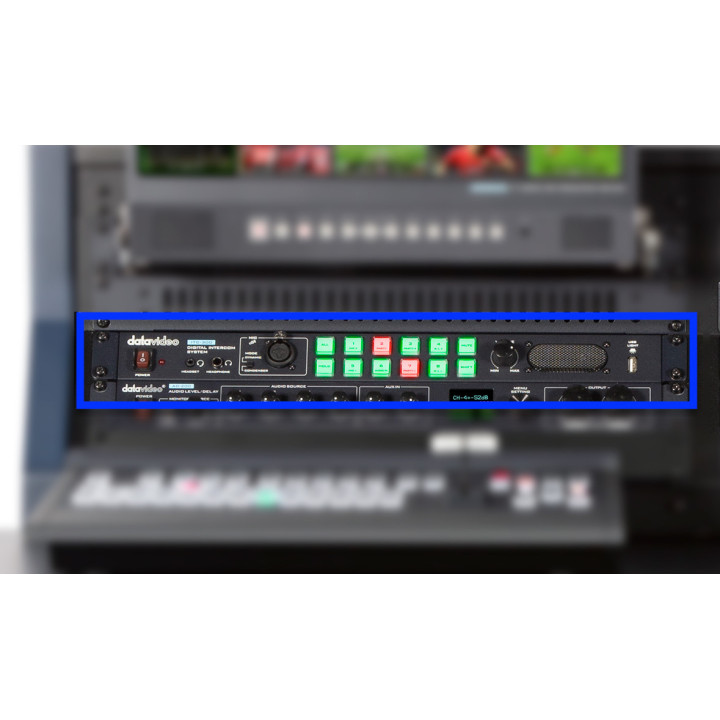

Rack-mountable 8-channel intercom system
The ITC-300 offers an 8-channel intercom system and bicolour tally lights.
Integrated camera control
Control up to 4 cameras from a CCU-200 camera control unit combined with the provided AD-3 units.
4K UHD recording and 10-bit 4:2:2 ProRes compression
Large 5" touch LCD screen for operation and monitoring.
Simultaneous H.264 streaming and recording
Supports different bit rates for recording and streaming.
Several optional accessories available
Numerous accessories available, including audio mixers, camera control, test and measurement tools and more.
|
|
Specifications |
|
|
Digital video mixer |
SE-3200 |
|
|
Rack-mountable LCD |
TLM-170VM x2 |
|
|
Recorder |
HDR-90 x1 (OBV-3200A)ntttt HDR-70 x1, HDR-90 x1 (OBV-3200B) |
|
|
Intercom/Tally system |
ITC-300 with 4 belt packs |
|
|
Vectorscope |
Integrated TLM-170VM |
|
|
Audio mixer |
AD-200 |
|
|
Power distributor |
PD-2A |
|
|
Camera control system/Multi-camera control unit |
CCU-200ntttt MCU-400 / MCU-200 (optional) |
|
|
H.264 video streaming server |
NVS-33 x1 (OBV-3200A)ntttt NVS-40 x1 (OBV-3200B) |
|
|
Rack system integration |
17RU mobile rack table |
|
|
Weight |
118 Kg |
|
|
Operating temperature range |
0~40 °C |
HD 12 Channel Portable production unit (2-racks), with SE-3200 and advanced camera control
