Datavideo - HDBaseT production unit with streaming
Datavideo 2200-2019 - HS-1600T MKII - HDBaseT production unit with streaming
6,918.94 CHF Inc. VAT
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Make your broadcast mobile with this Datavideo HS-1600T Mark II 4-channel HD/SD/HDBaseT portable video streaming studio. This mobile studio uses HDBaseT technology to control up to three Datavideo PTZ cameras while streaming H.264 video to the web. It features three HDBaseT inputs that can control connected cameras and accept video inputs, plus one HDMI input to add an additional video source. Three HDMI program outputs allow you to connect monitors to display your program, one HDMI is dedicated to graphics output, and an RJ45 LAN streaming output connector enables you to broadcast live over the Internet using a minimum Cat 6 cable. Depending on your stream bitrate, you can also record to an optional SD card.

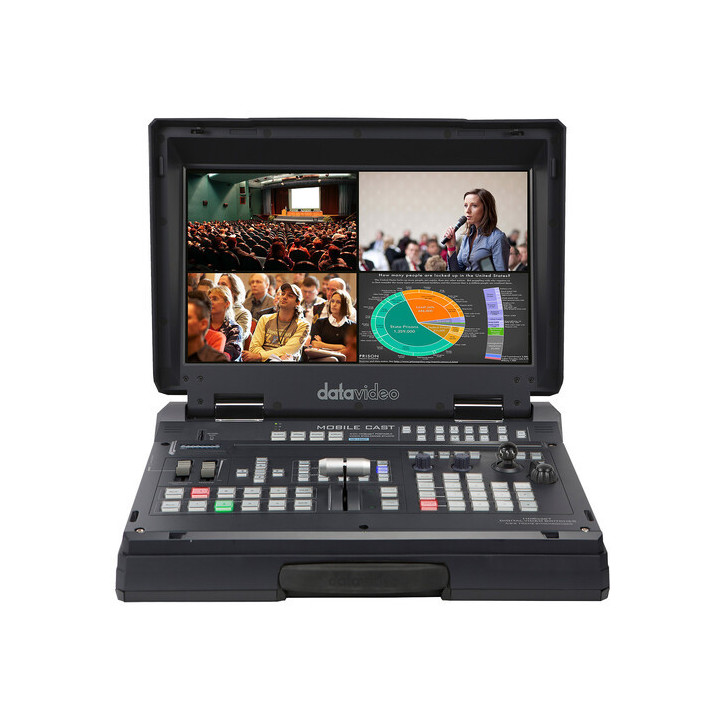

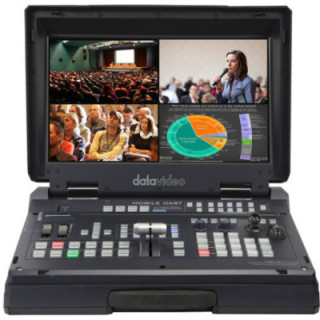

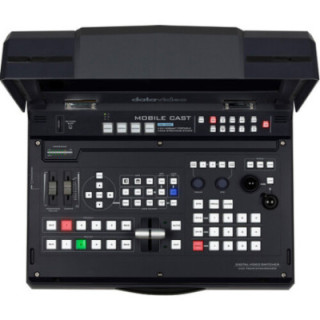

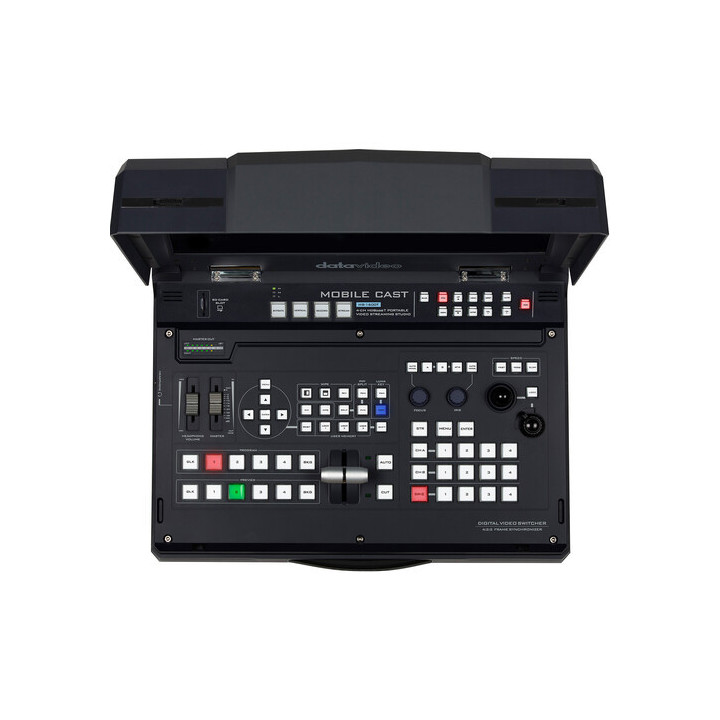

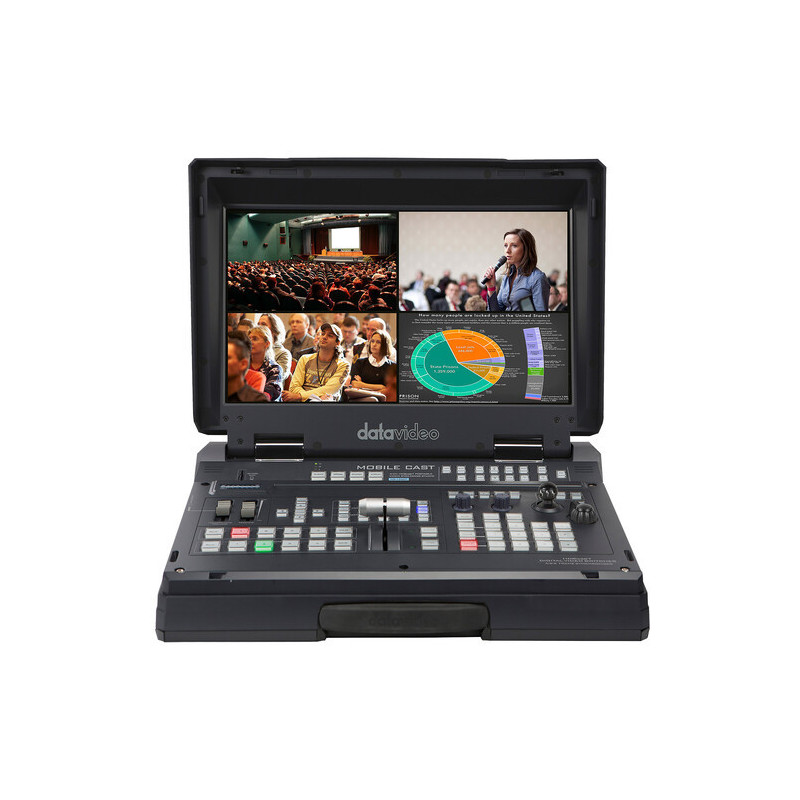

The HS-1600T Mark II is built into a briefcase form with a 17.3" TFT LCD monitor with 1920 x 1080 resolution built into the lid. The rest of the unit includes all switching controls, including a T-bar for transitions, a joystick, audio faders, and multiple buttons to control your PTZ cameras, inputs, program outputs, and streaming video. There are also 2RCA and XLR audio inputs for mixing analog audio into your program.
The monitor supports multiview mode, while the HDMI and streaming output supports your program output. The mixer also supports popular mixing effects including picture-in-picture, wipe, mix, and fade, and incorporates an upstream keyer. It can also send red and green tally signals via the built-in tally connector. The built-in real-time encoder enables live streaming, and you can stream and record your program simultaneously.
Applications
- Live Event Meeting
- Trade Show
- Public Meeting
- Government Event
- House of Worship
- Sports
- Musical Performances
Features
- 17.3" monitor built into lid with 1920 x 1080 resolution
- Supports up to Full HD 1080p
- Built-in HDBaseT technology enables control of up to three PTC-150T/140T PTZ cameras
- Supports multiple bitrates for SD card recording and streaming function
- One-button setup for recording and streaming
- Broadcast-quality H.264 network streaming via Cat 6 Ethernet cable
- Four video inputs: three RJ45 HDBaseT for cameras and one HDMI graphics input
- Pan, tilt, and zoom with speed control via joystick
- Three HDMI program video outputs
- Analog audio inputs: Two 3-pin XLR and one 2RCA L/R pair
- Flexible mixing effects: PiP, wipe, mix, fade
- Tally output
|
|
Specifications |
|
|
Mixing Effects |
|
|
|
Effect Types |
3 x Graphic, Transition, Luma Key |
|
|
Audio Mixing |
4-channel Mixing |
|
|
Processing |
|
|
|
Switching Type |
Push Button, T-Bar |
|
|
Audio Processing |
48 kHz / 16 bits |
|
|
Input |
|
|
|
Number of Video Input Sources |
4 |
|
|
Video Input Connectors |
1 x HDMI female |
|
|
Input Video Format |
HDMI / RJ45 |
|
|
Audio Input Connectors |
2 x XLR 3-pin stereo analog female |
|
|
Input Audio Format |
Analog: 48 kHz / 16 bits |
|
|
Integrated Audio Input |
HDMI: 2 channels (per input) |
|
|
Output |
|
|
|
Video Output Channels |
4 |
|
|
Video Output Connectors |
3 x HDMI female (Program) |
|
|
Output Video Format |
HDMI / RJ45 |
|
|
Audio Output Connectors |
1 x 3.5 mm TRS stereo analog female |
|
|
Output Audio Format |
Analog: 48 kHz / 16 bits |
|
|
Integrated Audio Output |
HDMI: 2 channels |
|
|
Multiview Output |
Yes |
|
|
Connectivity |
|
|
|
Other I/O |
1 x DE-15/DB-15 Tally Output |
|
|
HDCP Support |
None |
|
|
IP Encoding/Decoding |
|
|
|
IP Video |
H.264: |
|
|
IP Audio |
AAC-LC: Encoding from 32 to 384 Kb/s |
|
|
Transport Protocols |
TCP/IP, RTMP, RTMPS, RTSP, TCP, UDP |
|
|
Simultaneous Streams |
1 stream |
|
|
Internal Recording |
|
|
|
Recording Media |
1 x SDXC, SDHC (UHS-I [104 MB/s]) |
|
|
Recording Modes |
1920 x 1080p (MP4 via H.264/AVC) |
|
|
Display |
|
|
|
Screen Size |
17.3" |
|
|
Screen Resolution |
1920 x 1080 |
|
|
Power |
|
|
|
Power Connector |
1 x XLR 4-pin (48 VDC at 4.1 A) Input |
|
|
Environment |
|
|
|
Operating Temperature |
0 to 40°C / 32 to 104°F |
|
|
General |
|
|
|
Dimensions |
45.5 x 35.5 x 13.4 cm / 17.9 x 14 x 5.3" |
|
|
Weight |
7.8 kg / 17.2 lb |
