Datavideo - 4K 8-Channel Digital Video Switcher

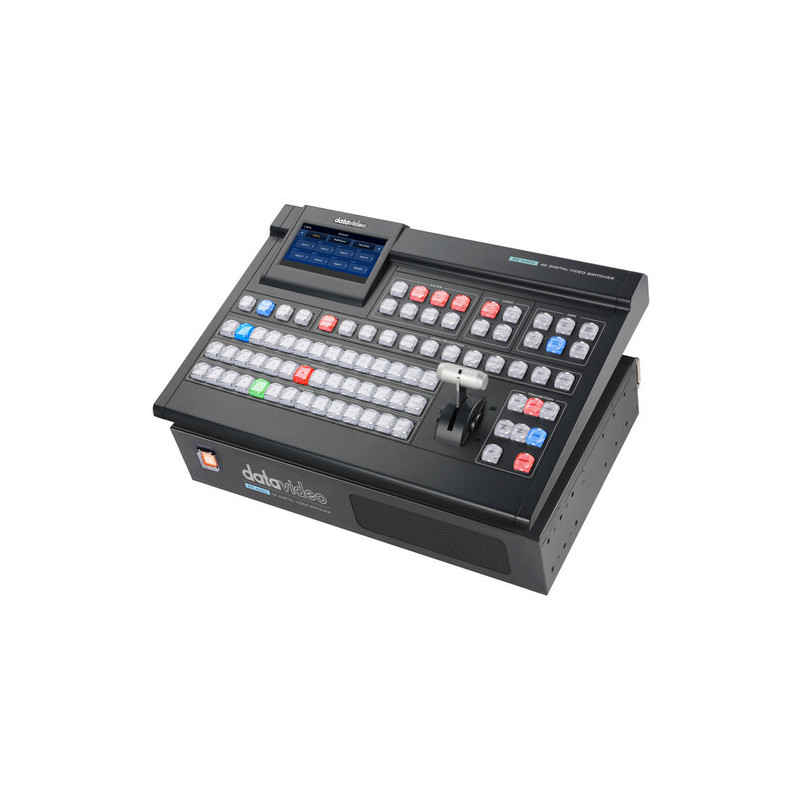

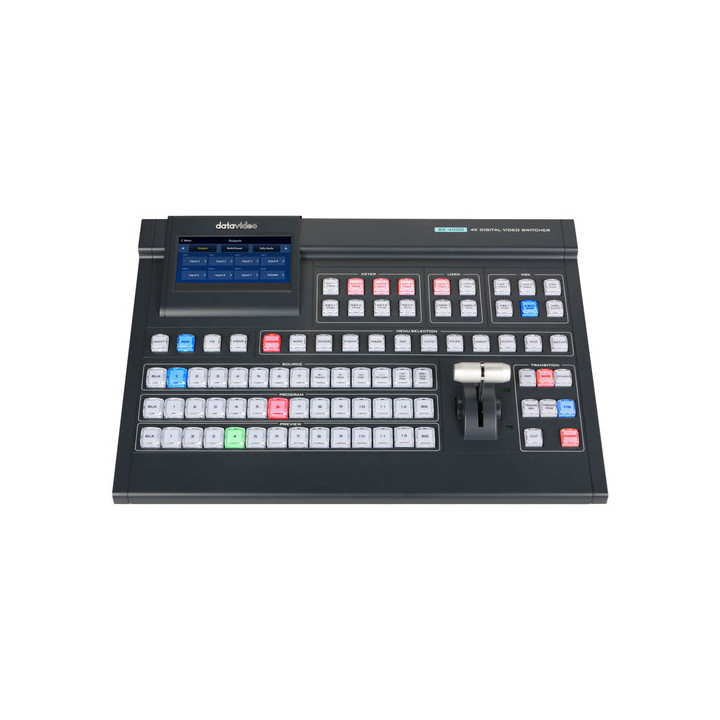

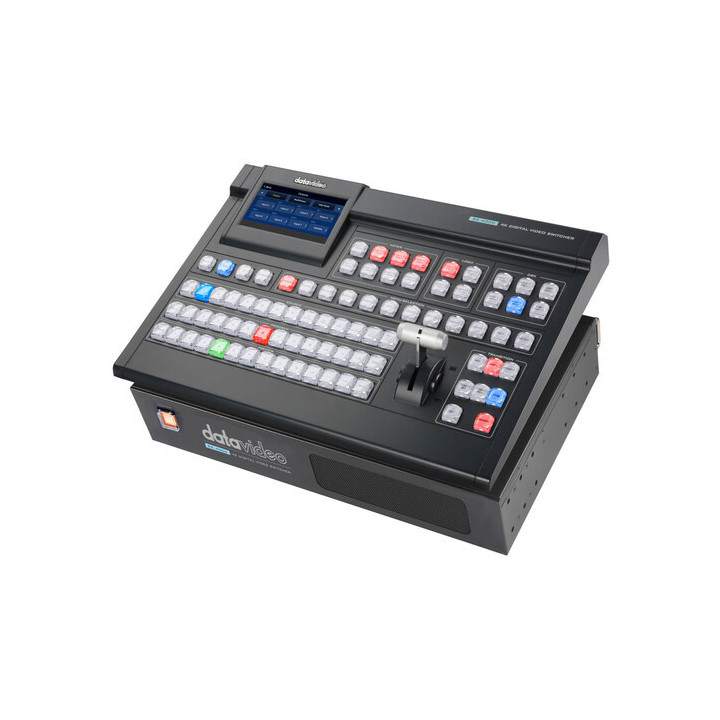

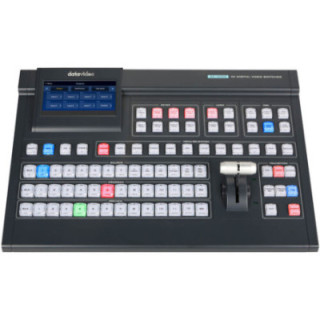

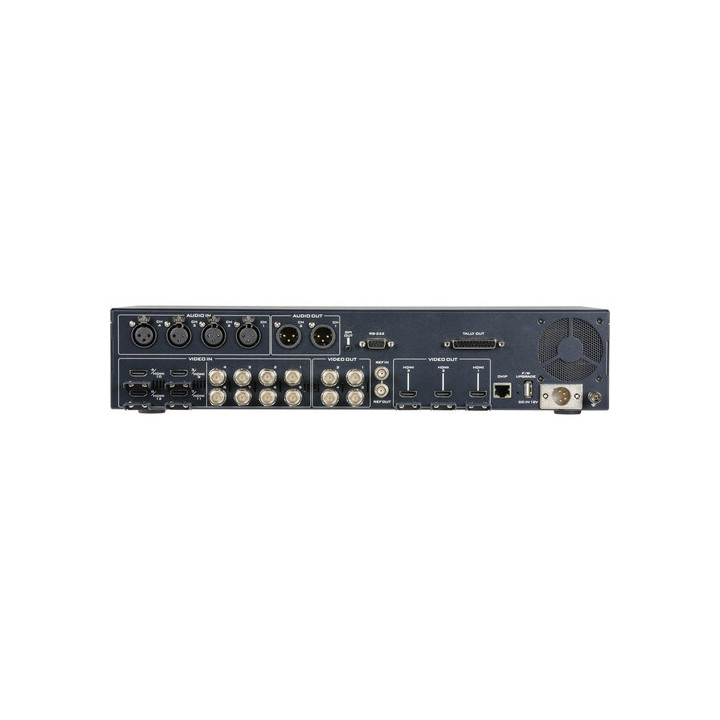

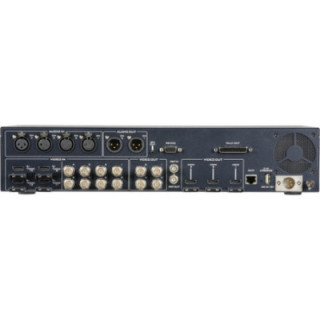

Datavideo SE-4000 - 4K 8-Channel Digital Video Switcher
1057468
UHD Videoswitcher with 8 live channel : 8x 12G-SDI +4x HDMI (select 8 from 12); 7 outputs : 4x 12G-SDI +3x HDMI); 5" Touch Panel controlling; up/down scaling on each input; 2 x Chromakey, 2 x DSK & 4 x PIP; XPT (Cross Point); Wipe, Mix, DVE, Cut and Stinger Transitions
Visuals Price
9,138.18 CHF
VAT excl.
9,878.37 CHF Inc. VAT
Manufacturer price 10 750,80 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Available M/E Layers | 4 M/E | |
| Effect Types | DVE, Graphic, Stinger, Transition, Chroma Key, Luma Key | |
| Graphics Memory | 999 Images | |
| Downstream Keys | 4 x Chroma, Luma, DVE 2 x Luma |
|
| Audio Mixing | 4-Channel Mixing | |
| Processing | ||
| Switching Type | Pushbutton, Software, Touchscreen | |
| Processing Resolution | UHD 4K at 50/60 | |
| Colour Processing | 10-Bit 4:2:2 8-Bit 4:4:4 RGB 10-Bit 4:4:4 RGB 10-Bit 4:2:2 YUV |
|
| Input | ||
| Number of Video Input Sources | 8 | |
| Video Inputs | 8 x BNC (12G-SDI) Female 4 x HDMI Female |
|
| Input Video Format | HDMI / SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
|
| Audio Inputs | 4 x XLR 3-Pin Female | |
| Input Audio Format | Analogue | |
| Embedded Audio Input | HDMI SDI |
|
| Output | ||
| Video Output Channels | 7 | |
| Video Outputs | 4 x BNC (12G-SDI) Female 3 x HDMI Female |
|
| Output Video Format | HDMI / SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
|
| Audio Outputs | 2 x XLR 3-Pin Analogue Male | |
| Output Audio Format | Analogue | |
| Embedded Audio Output | HDMI SDI |
|
| Multiview Output | 12-Way Multiview via HDMI, SDI | |
| Monitor Output | 3 x HDMI | |
| Connectivity | ||
| Other I/O | 1 x DB-25 Tally Input/Output 1 x RJ45 Control Input/Output 1 x BNC Genlock Input 1 x BNC Genlock Output 1 x 2.5 mm GPI Output 1 x DE-9/DB-9 RS-232 Input/Output 1 x USB-A Firmware Input |
|
| HDCP Support | None | |
| Display | ||
| Display Size | 4" | |
| Hardware | ||
| Wi-Fi | None | |
| Bluetooth | None | |
| Power I/O | 1 x XLR 4-Pin (12 VDC) Input | |
| Power Consumption | Device: 12 VDC (108 W) | |
| Environmental | ||
| Operating Temperature | 32 to 104°F / 0 to 40°C | |
| General | ||
| Rack Form Factor | 2 RU | |
| Dimensions | 17 x 9.8 x 3.5" / 432 x 250 x 88 mm | |
| Weight | 15.7 lb / 7.1 kg | |
UHD Videoswitcher with 8 live channel : 8x 12G-SDI +4x HDMI (select 8 from 12); 7 outputs : 4x 12G-SDI +3x HDMI); 5" Touch Panel controlling; up/down scaling on each input; 2 x Chromakey, 2 x DSK & 4 x PIP; XPT (Cross Point); Wipe, Mix, DVE, Cut and Stinger Transitions
