Datavideo OBV-4000 - Mobile Production System
1085882

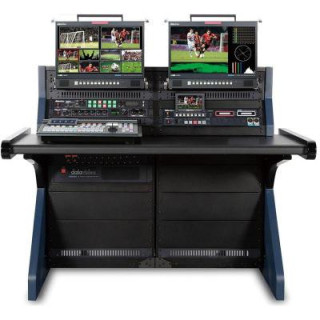

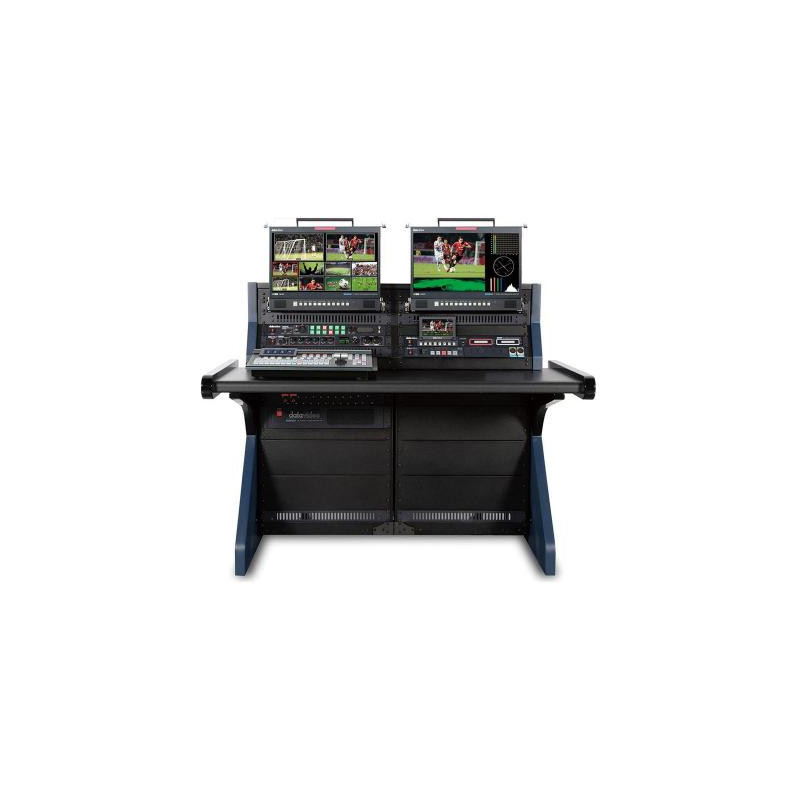

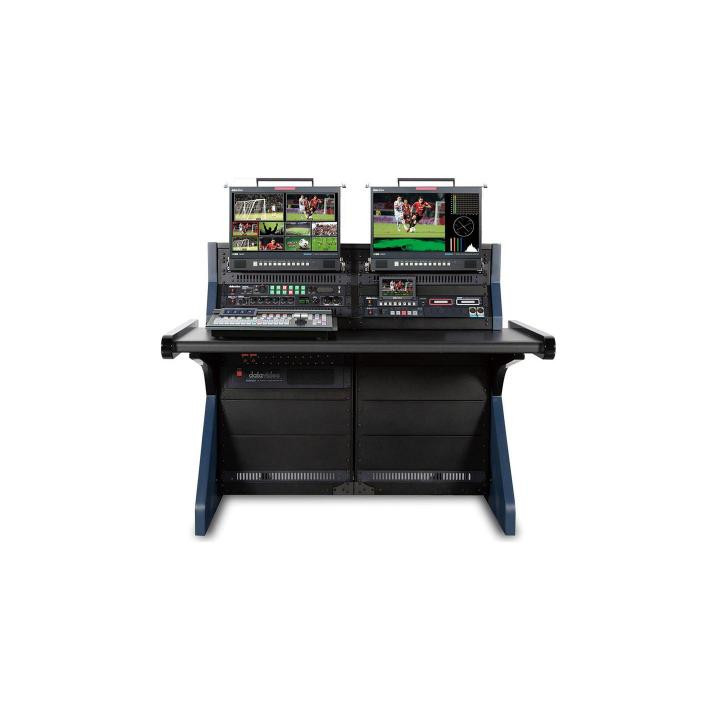

The Datavideo OBV-4000 is a powerful, mobile broadcast solution designed to fit into the back of a small van, providing comprehensive production facilities for both in-studio and on-location shoots.
PRICE ON REQUEST
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Datavideo OBV-4000 Specs
| Model Number | OBV-4000 |
| Digital Video Switcher | SE-4000 4K 8-Channel Switcher |
| 17.3" Rack Mount LCD | TLM-170K 17.3-inch 4K UHD LCD monitor |
| Recorder | HDR-90 ProRes 4K Video Recorder - Rackmountable |
| Intercom/Tally System | ITC-300 Digital Intercom System w/4 Belt Pack |
| SDI Vector Scope | Built-in TLM-170K |
| Audio Mixer | AD-200 6-Channel Audio Delay/Mixer with Level Adjustment |
| Power Distributor (8-way) | PD-2A Power Center |
| Return Video (8-CH CV) | ---- |
| Camera Control System | ---- |
| Camera Power Distributor | ---- |
| Multi-camera Control Unit | ---- |
| H.264 Video Streaming Server | NVS-36 Dual Platform Streaming Encoder |
| 4K Multicamera Processor | ---- |
| Network Media Player | ---- |
| HD/SD SDI Amplifier | ---- |
| Rack System Integration | 17RU Mobile Rack Table |
| Dimensions | 110 x 100 x 111 cm |
| Weight | 118 kg |
| Operating Temp. Range | 0~40 °C |
| Options | Camera Power Distributor ---- Camera Power Regulator ---- Redundant Power (360W) ---- SDI/CV/ITC/DC Cable: CB-66 CB-22H/23H Repeater ---- SDI/ITC Cable ---- ITC/Tally Cable ---- HDMI Cable: CB-60/61/62 (30m/50m/100m) 100m SDI Repeater ---- |
| What's in the Box | 1 x OBV-4000 product 4 x AD-3 Unit 4 x RMC-240 Unit 5 x Headset 4 x φ3.5 Plug to φ3.5 Plug Cable 4 x φ2.5 Plug to φ3.5 Plug Cable 2 x AC Power Cord 5 x 120mm cable tie 10 x 200mm cable tie 1 x Y type 2 pin MOLEX cable 2 x 2.5" HDD enclosure 2 x ISO screw 2*6mm 4 x Cable & Cable Reel 1 x SATA to USB Cable 2 x HD sticker |
The Datavideo OBV-4000 is a powerful, mobile broadcast solution designed to fit into the back of a small van, providing comprehensive production facilities for both in-studio and on-location shoots.
