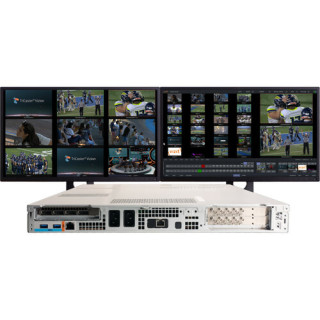

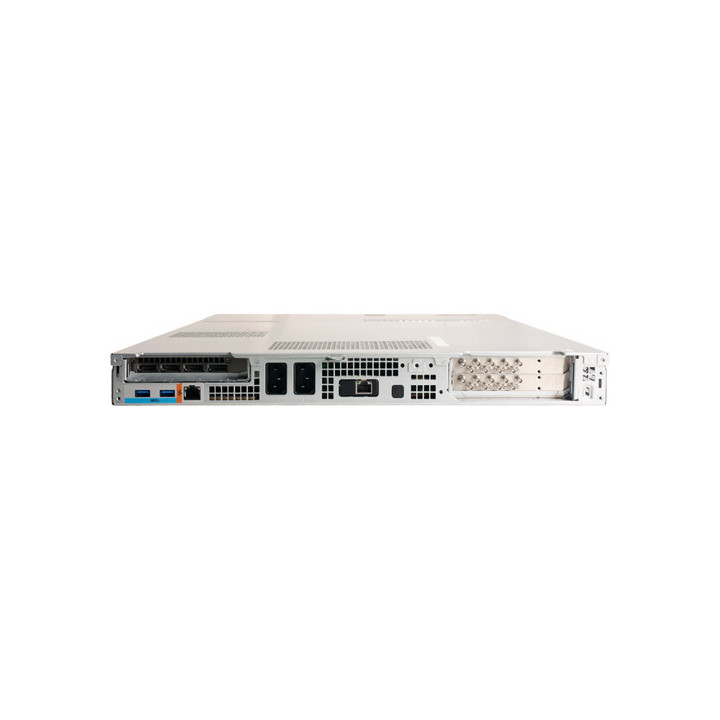

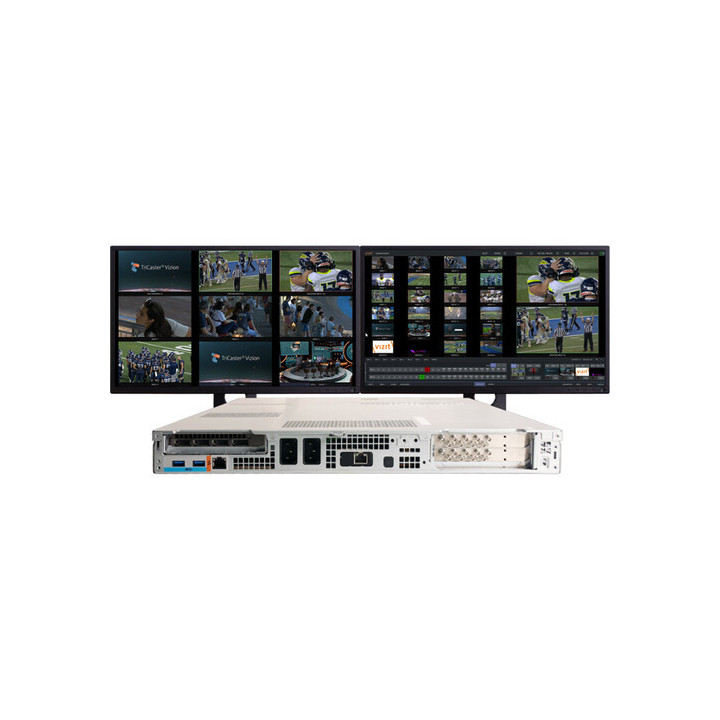

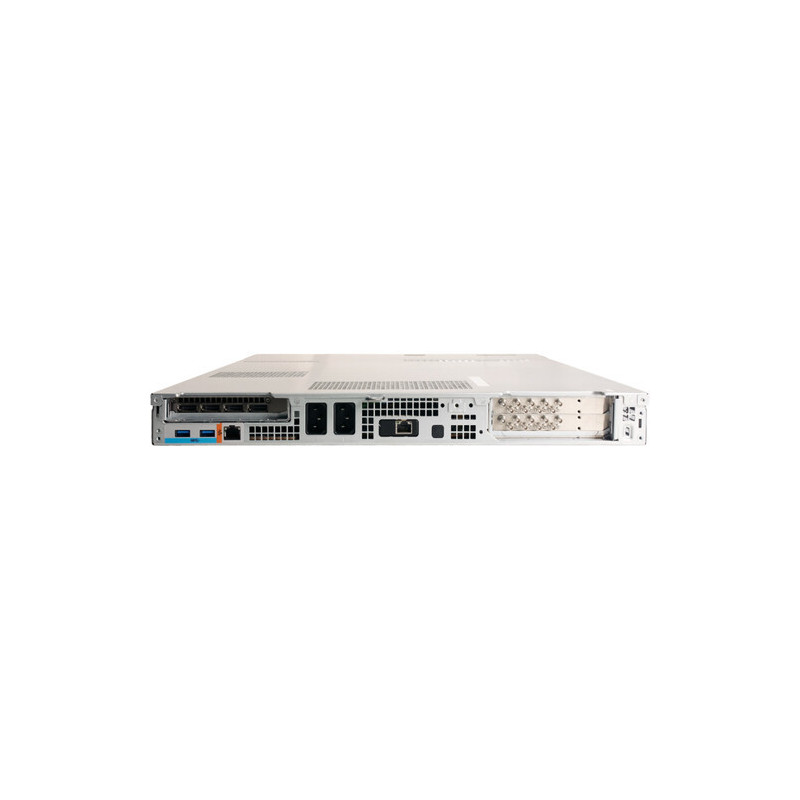

Vizrt - TriCaster Vizion 1RU with 16 SDI I/O
Vizrt TCVIZION1RU16IO - TriCaster Vizion 1RU with 16 SDI I/O
1087217
TriCaster Vizion 1RU with 44 inputs and 16 SDI I/O. This product has redundant power. This includes 1 year of Standard Support and Viz Flowics Basic for 36 months
Vizrt TCVIZION1RU16IO Specs
| Switching Type | Software |
| Processing Resolution | UHD 4K at 60 |
| Color Processing | 10-Bit YCbCr |
| Audio Processing | 96 kHz |
| Latency | 1 to 1.5 Frames |
| Video Inputs | 16x BNC (3G-SDI, 6G-SDI, 12G-SDI, HD-SDI) Female |
| Input Video Format | BNC (10-Bit) UHD 4K at 25/29.97/50/59.94/60 fps 1080p at 25/29.97/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Embedded Audio Input | SDI |
| Video Outputs | 8x BNC (12G-SDI) Female 8x BNC (HD-SDI) Female |
| Output Video Format | SDI (10-Bit) UHD 4K at 25/29.97/50/59.94/60 fps 1080p at 25/29.97/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Embedded Audio Output | SDI |
| Video Standard Compliance | SMPTE 292M/424M-A/ST-2082 |
| HDR Support | Yes: Hybrid Log Gamma |
| Wireless | No |
| Operating Conditions | 41 to 80°F / 5 to 27°C at 8 to 85% Humidity |
| Storage Conditions | -40 to 140°F / -40 to 60°C at 8 to 90% Humidity |
| Rack Form Factor | 1 RU |
| Dimensions | 2.6 x 1.7 x 1.7" / 65.5 x 43.8 x 43 mm |
| Weight | 26.7 lb / 12.1 kg |
TriCaster Vizion 1RU with 44 inputs and 16 SDI I/O. This product has redundant power. This includes 1 year of Standard Support and Viz Flowics Basic for 36 months
