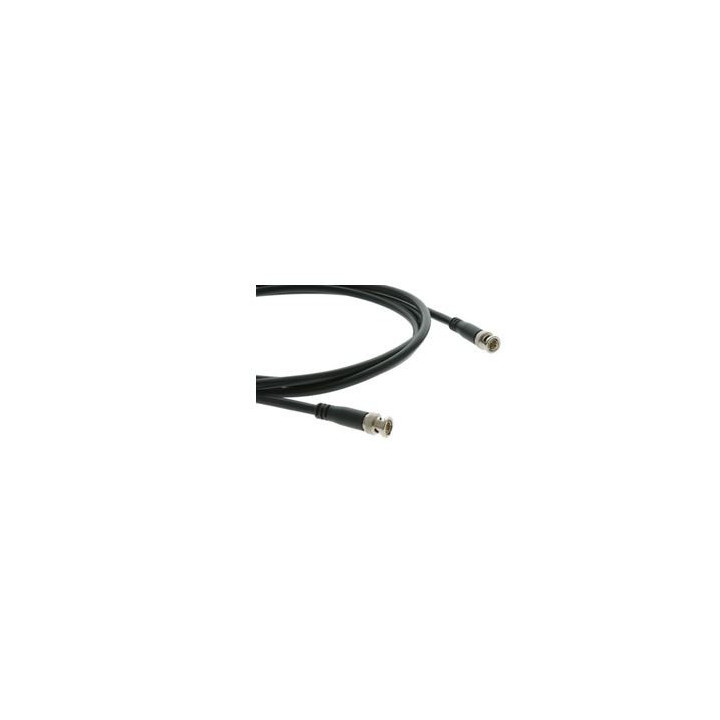

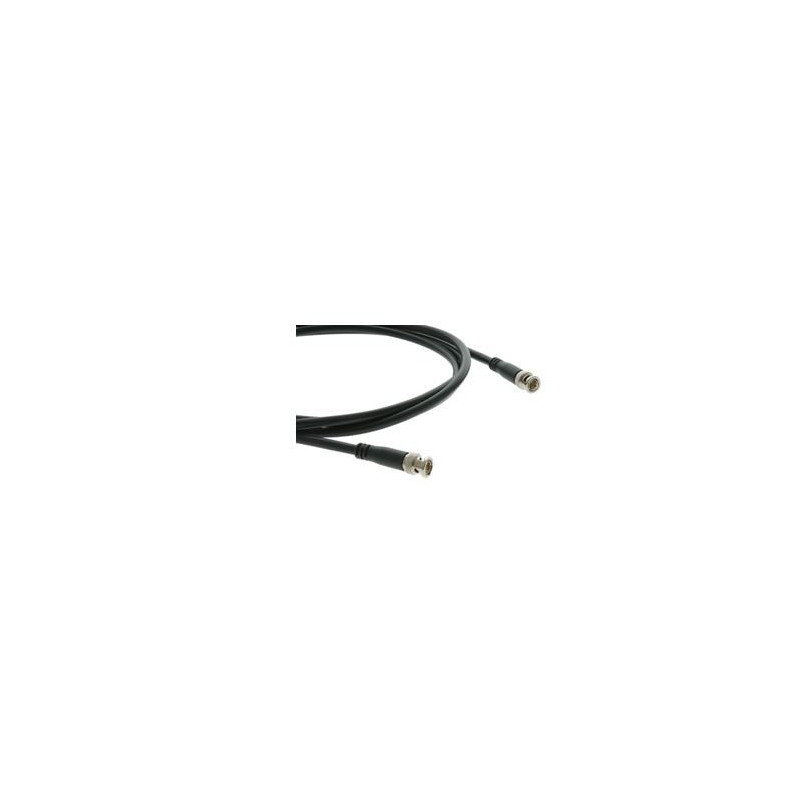

Kramer C-BM/BM-1.5 - Molded BNC (Male - Male) Cable (1.5')
1036130
Molded BNC (Male - Male) Cable (1.5')
Visuals Price
11.05 CHF
VAT excl.
11.95 CHF Inc. VAT
Manufacturer price 13,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer Moulded BNC Cable (Male - Male) (1.5')
Kramer's C-BM/BM is constructed with high-performance RG-6 cable and 75Ω BNC connectors at each end. It offers exceptional quality, durability and performance for any video signal application.
Features
- Quality construction — RG-6 cable for high-resolution signals.
- High-quality connectors — Genuine 75Ω BNC connectors maintaining correct impedance throughout.
- Varied selection of lengths — Available in versions from 1.5 to 150ft (0.5 to 45.7m).
- Cable specifications — Tested to 3G. For detailed cable specifications, see Kramer BC-1X.
Kramer's C-BM/BM is constructed with high-performance RG-6 cable and 75Ω BNC connectors at each end. It offers exceptional quality, durability and performance for any video signal application.
Features
- Quality construction — RG-6 cable for high-resolution signals.
- High-quality connectors — Genuine 75Ω BNC connectors maintaining correct impedance throughout.
- Varied selection of lengths — Available in versions from 1.5 to 150ft (0.5 to 45.7m).
- Cable specifications — Tested to 3G. For detailed cable specifications, see Kramer BC-1X.
|
|
Specifications |
|
|
Conductor |
18 AWG solid bare copper |
|
|
Dielectric |
Foam core |
|
|
Shield |
A: 61% braid 34 AWG aluminium wire |
|
|
Outer sheath |
PVC |
|
|
Centre conductor |
1.02mm (0.0403in) |
|
|
Dielectric |
4.57mm (0.179in) |
|
|
Outer diameter |
6.95mm (0.391in) |
|
|
Impedance |
75Ω |
|
|
DC resistance |
21.8Ω/km (6.6Ω/1000ft) |
|
|
Capacitance |
53.1pF/m (16.1pF/ft) |
|
|
Velocity of propagation |
82% |
|
|
Temperature |
–20° to 75°C (–4° to 167°F) |
|
|
Attenuation (dB/100 ft.) |
–0.3dB @1MHz |
|
|
Regulation |
UL: CL2 |
