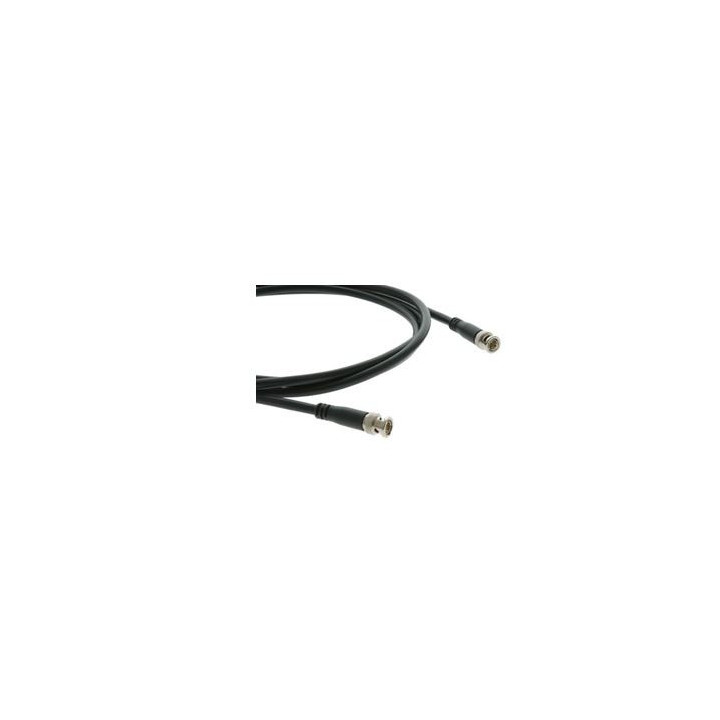

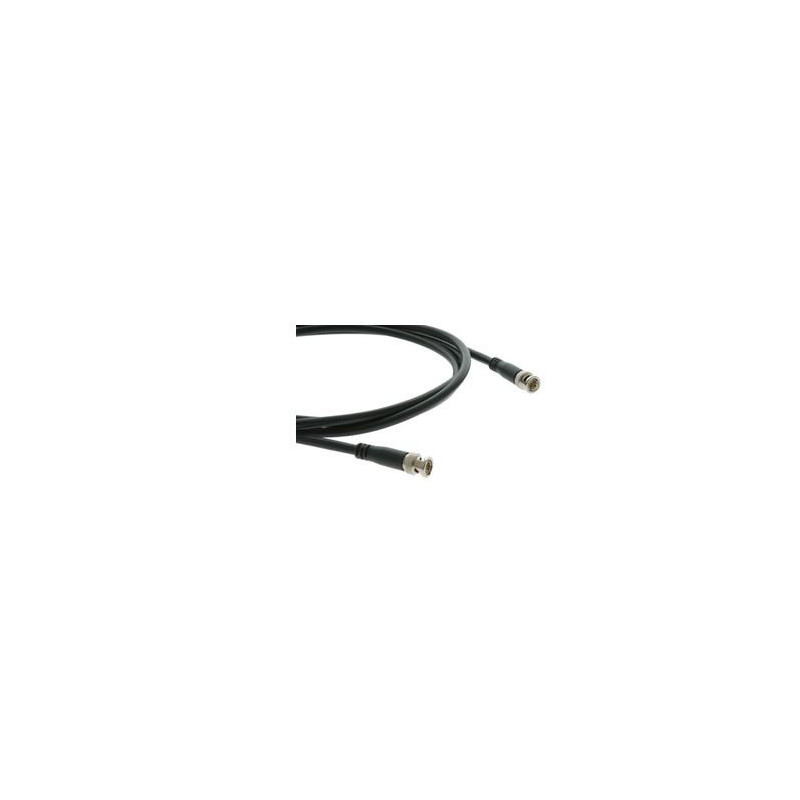

Kramer C-BM/BM-100 - Molded BNC (Male - Male) Cable (100')

1036132
Kramer C-BM/BM-100 - Molded BNC (Male - Male) Cable (100')
Kramer C-BM/BM-100 - Molded BNC (Male - Male) Cable (100')
Molded BNC (Male - Male) Cable (100')
... learn more
Visuals Price
87.55 CHF VAT excl.

94.64 CHF Inc. VAT

Manufacturer price 103,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Moulded BNC Cable (Male - Male) (30.48 m)
The Kramer C−BM/BM is constructed with high-performance RG−6 cable fitted with 75Ω BNC connectors at each end. It offers exceptional quality, durability and performance for all video signal applications.
Features
- Quality construction — RG–6 cable for high-resolution signals.
- High-quality connectors — Genuine 75Ω BNC connectors maintain proper impedance throughout.
- Varied length selection — Available in versions from 0.46 to 45.72 m (1.5 to 150 feet).
- Cable specifications — Tested for 3G. For detailed cable specifications, see Kramer BC–1X.




Specifications



Conductor

Solid bare copper 18 AWG

Dielectric

Compact foam

Shielding

A: 61% braid 34 AWG aluminium wire
B: Double foil/Mylar 25% overlap rate

Outer sheath

PVC

Centre conductor

1.02 mm (0.0403 in)

Dielectric

4.57 mm (0.179 in)

Outer diameter

6.95 mm (0.391 in)

Impedance

75Ω

DC resistance

21.8 Ω/km (6.6 Ω/304.8 m)

Capacitance

53.1 pF/m (16.1 pF/0.3048 m)

Propagation speed

82%

Temperature

–20° to 75°C (–4° to 167°F)

Attenuation (dB/30.48 m)

–0.3dB @1MHz
–0.6dB @5MHz
–0.8dB @10MHz
–1.6dB @50MHz
–2.0dB @100MHz
–2.8dB @180MHz
–4.4dB @400MHz
–5.7dB @750MHz
–6.7dB @1000MHz

Regulation

UL: CL2
CSA: C(UL) CL2



Molded BNC (Male - Male) Cable (100')
