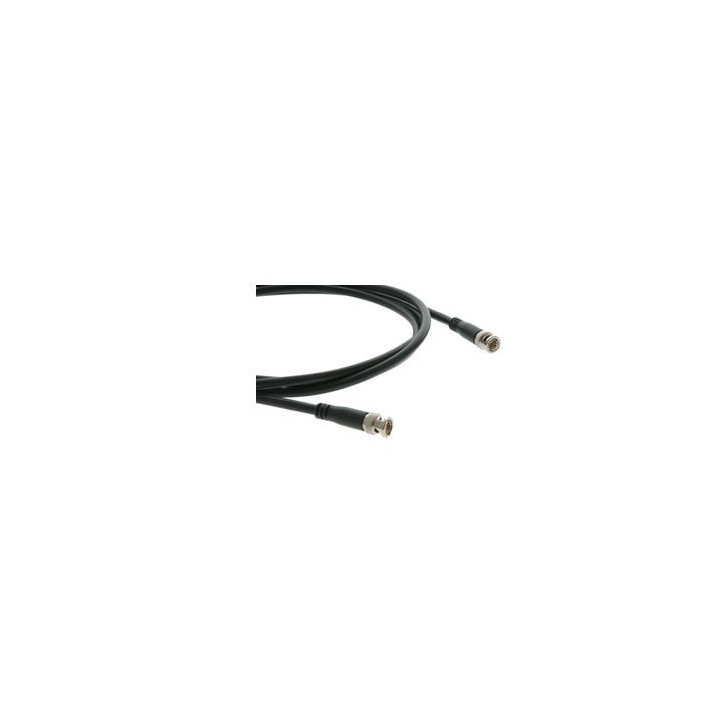

Kramer C-BM/BM-15 - Molded BNC (Male - Male) Cable (15')

1036133
Kramer C-BM/BM-15 - Molded BNC (Male - Male) Cable (15')
Kramer C-BM/BM-15 - Molded BNC (Male - Male) Cable (15')
Molded BNC (Male - Male) Cable (15')
... learn more
Visuals Price
26.35 CHF VAT excl.

28.48 CHF Inc. VAT

Manufacturer price 31,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Moulded BNC Cable (Male - Male) (4.57 m)
The Kramer C−BM/BM is constructed with high-performance RG−6 cable fitted with 75Ω BNC connectors at each end. It offers exceptional quality, durability and performance for all video signal applications.
Features
- Quality construction — RG–6 cable for the highest resolution signals.
- High-quality connectors — Genuine 75Ω BNC connectors maintain correct impedance throughout.
- Wide selection of lengths — Available in versions from 0.5 to 45.7 m (1.5 to 150 feet).
- Cable specifications — Tested up to 3G. For detailed cable specifications, see Kramer BC–1X.




Specifications



Conductor

Solid bare copper 18 AWG

Dielectric

Foam skin

Shielding

A: 61% braid 34 AWG aluminium wire
B: Double foil/Mylar with 25% overlap rate

Outer sheath

PVC

Centre conductor

1.02 mm (0.0403 in)

Dielectric

4.57 mm (0.179 in)

Outer diameter

6.95 mm (0.391 in)

Impedance

75 Ω

DC resistance

21.8 Ω/km (6.6 Ω/1000 ft)

Capacitance

53.1 pF/m (16.1 pF/ft)

Propagation speed

82%

Temperature

–20°C to 75°C (–4°F to 167°F)

Attenuation (dB/30.48 m)

–0.3 dB at 1 MHz
–0.6 dB at 5 MHz
–0.8 dB at 10 MHz
–1.6 dB at 50 MHz
–2.0 dB at 100 MHz
–2.8 dB at 180 MHz
–4.4 dB at 400 MHz
–5.7 dB at 750 MHz
–6.7 dB at 1000 MHz

Regulations

UL: CL2
CSA: C(UL) CL2



Molded BNC (Male - Male) Cable (15')
