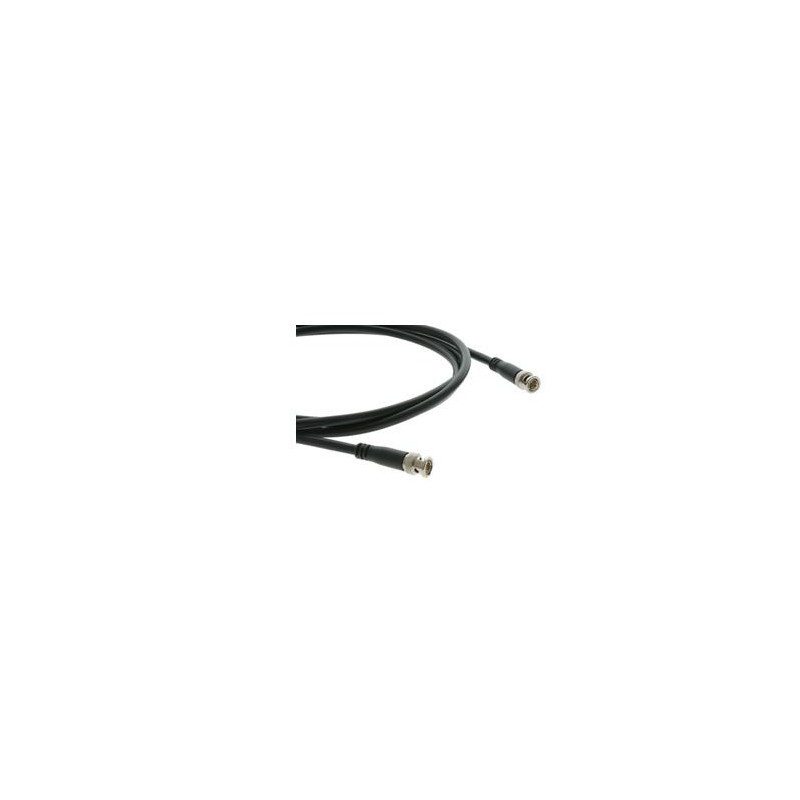

Kramer C-BM/BM-150 - Molded BNC (Male - Male) Cable (150')

1036134
Kramer C-BM/BM-150 - Molded BNC (Male - Male) Cable (150')
Kramer C-BM/BM-150 - Molded BNC (Male - Male) Cable (150')
Molded BNC (Male - Male) Cable (150')
... learn more
Visuals Price
122.40 CHF VAT excl.

132.31 CHF Inc. VAT

Manufacturer price 144,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Moulded BNC Cable (Male - Male) (150')
Kramer's C-BM/BM is constructed with high-performance RG-6 cable and 75Ω BNC connectors at each end. It offers exceptional quality, durability and performance for any video signal application.
Features
- Quality construction — RG-6 cable for superior resolution signals.
- High-quality connectors — Genuine 75Ω BNC connectors maintain proper impedance throughout the cable.
- Wide choice of lengths — Available in versions from 1.5 to 150 feet (0.5 to 45.7 m).
- Cable specifications — Tested up to 3G. For detailed cable specifications, see Kramer BC-1X.




Specifications



Conductor

18 AWG solid bare copper

Dielectric

Foam core

Shield

A: 61% braid 34 AWG aluminium wire
B: Double foil/Mylar with 25% coverage rate

Outer sheath

PVC

Centre conductor

1.02 mm (0.0403 in)

Dielectric

4.57 mm (0.179 in)

Outer diameter

6.95 mm (0.391 in)

Impedance

75 Ω

DC resistance

21.8 Ω/km (6.6 Ω/1000 ft)

Capacitance

53.1 pF/m (16.1 pF/ft)

Velocity of propagation

82%

Temperature

–20° to 75°C (–4° to 167°F)

Attenuation (dB/100 ft.)

–0.3 dB @1 MHz
–0.6 dB @5 MHz
–0.8 dB @10 MHz
–1.6 dB @50 MHz
–2.0 dB @100 MHz
–2.8 dB @180 MHz
–4.4 dB @400 MHz
–5.7 dB @750 MHz
–6.7 dB @1000 MHz

Regulation

UL: CL2
CSA: C(UL) CL2
