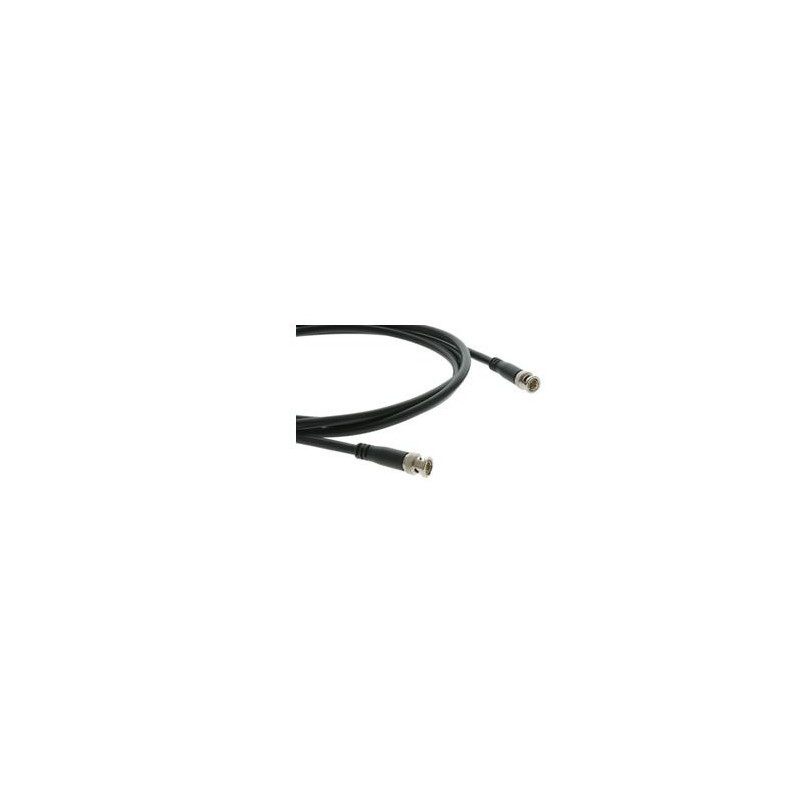

Kramer C-BM/BM-25 - Molded BNC (Male - Male) Cable (25')

1036135
Kramer C-BM/BM-25 - Molded BNC (Male - Male) Cable (25')
Kramer C-BM/BM-25 - Molded BNC (Male - Male) Cable (25')
Molded BNC (Male - Male) Cable (25')
... learn more
Visuals Price
28.90 CHF VAT excl.

31.24 CHF Inc. VAT

Manufacturer price 34,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Moulded BNC Cable (Male - Male) (25')
Kramer's C−BM/BM is constructed with high-performance RG−6 cable and 75 Ω BNC connectors at each end. It offers exceptional quality, durability and performance for any video signal application.
Features
- Quality construction — RG–6 cable for the highest resolution signals.
- High-quality connectors — True 75 Ω BNC connectors maintain correct end-to-end impedance.
- Wide selection of lengths — Available in versions from 1.5 to 150 feet (0.5 to 45.7 m).
- Cable specifications — Tested up to 3G. For detailed cable specifications, see Kramer BC–1X.




Specifications



Conductor

Solid bare copper 18 AWG

Dielectric

Foam Core

Shielding

A: 61% braid aluminium wire 34 AWG
B: Double foil/Mylar with 25% overlap rate

Outer Jacket

PVC

Centre Conductor

1.02 mm (0.0403 in)

Dielectric

4.57 mm (0.179 in)

Outer Diameter

6.95 mm (0.391 in)

Impedance

75 Ω

DC Resistance

21.8 Ω/km (6.6 Ω/1000 feet)

Capacitance

53.1 pF/m (16.1 pF/ft)

Propagation Velocity

82%

Temperature

–20° to 75°C (–4° to 167°F)

Attenuation (dB/100 ft)

–0.3 dB at 1 MHz
–0.6 dB at 5 MHz
–0.8 dB at 10 MHz
–1.6 dB at 50 MHz
–2.0 dB at 100 MHz
–2.8 dB at 180 MHz
–4.4 dB at 400 MHz
–5.7 dB at 750 MHz
–6.7 dB at 1000 MHz

Regulations

UL: CL2
CSA: C(UL) CL2
