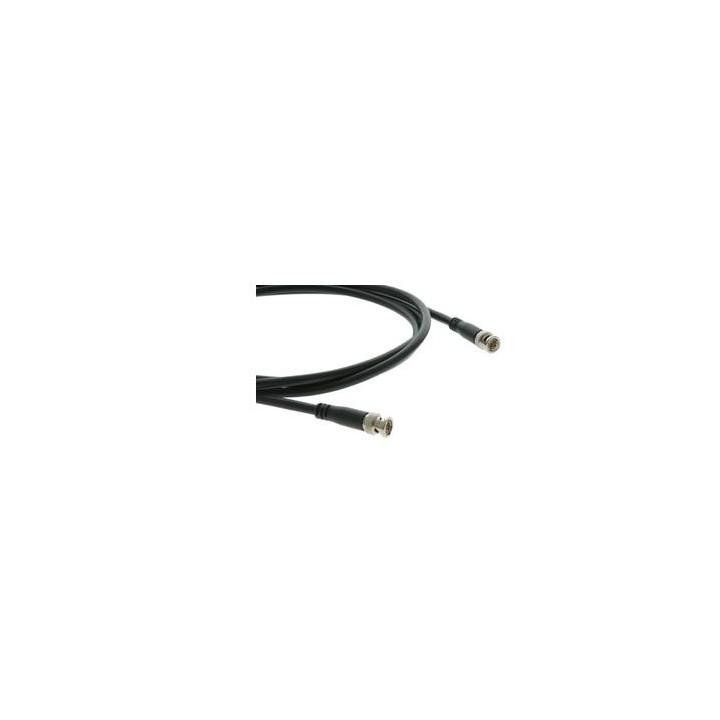

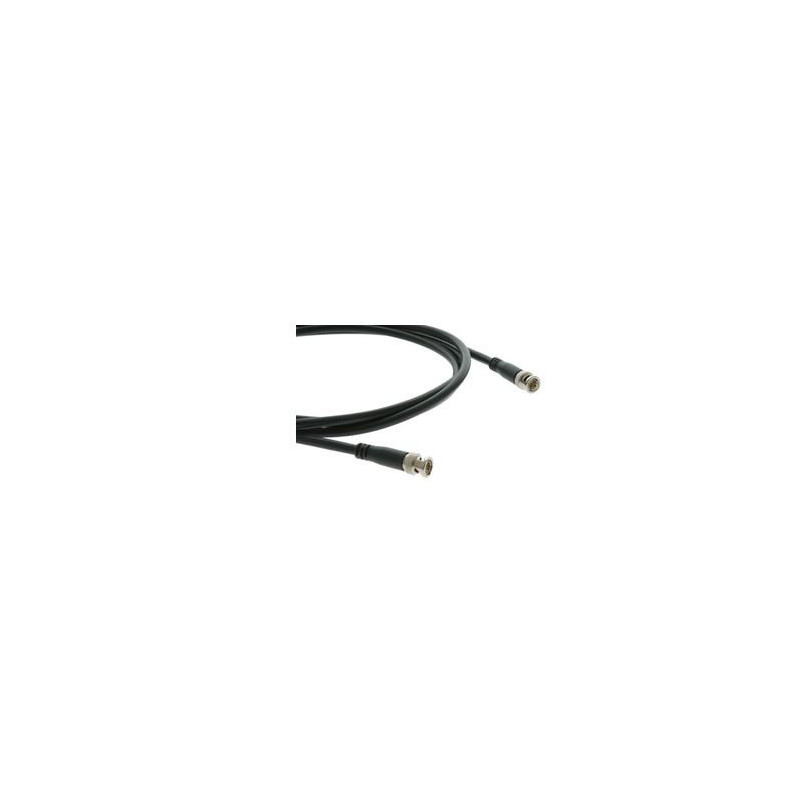

Kramer Moulded BNC Cable (Male - Male) (3')
Kramer's C−BM/BM is constructed with high-performance RG−6 cable with 75Ω BNC connectors at each end. It offers exceptional quality, durability and high performance for any video signal application.
Features
- Quality construction — RG–6 cable for the highest resolution signals.
- High-quality connectors — Genuine 75Ω BNC connectors maintaining correct end-to-end impedance.
- Varied length selection — Available in versions from 1.5 to 150 feet (0.5 to 45.7 m).
- Cable specifications — Tested up to 3G. For detailed cable specifications, see Kramer BC–1X.




Specifications



Conductor

18 AWG solid bare copper

Dielectric

Foam skin

Shielding

A: 61% braid 34 AWG aluminium wire
B: Dual foil/Mylar 25% overlap rate

Outer sheath

PVC

Centre conductor

1.02mm (0.0403in)

Dielectric

4.57mm (0.179in)

Outer diameter

6.95mm (0.391in)

Impedance

75Ω

DC resistance

21.8Ω/km (6.6Ω/1000ft)

Capacitance

53.1pF/m (16.1pF/ft)

Propagation velocity

82%

Temperature

–20° to 75°C (–4° to 167°F)

Attenuation (dB/100 ft.)

–0.3dB @1MHz
–0.6dB @5MHz
–0.8dB @10MHz
–1.6dB @50MHz
–2.0dB @100MHz
–2.8dB @180MHz
–4.4dB @400MHz
–5.7dB @750MHz
–6.7dB @1000MHz

Regulations

UL: CL2
CSA: C(UL) CL2
