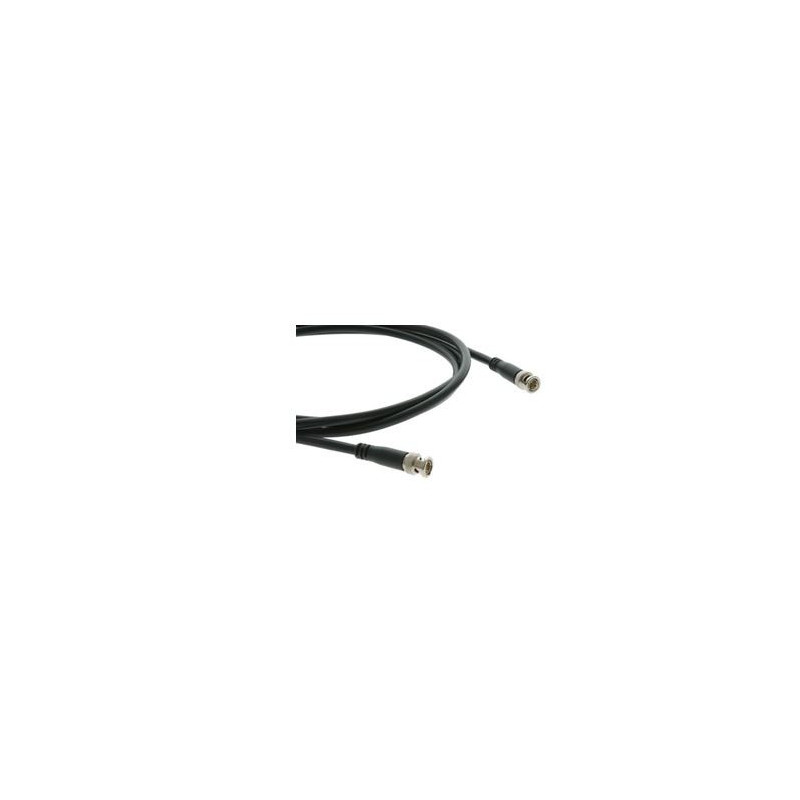

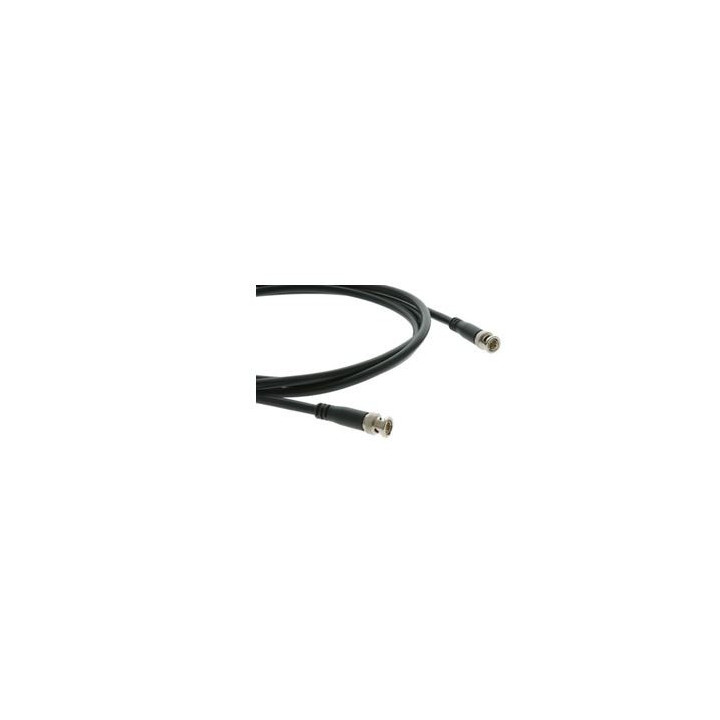

Kramer C-BM/BM-6 - Molded BNC (Male - Male) Cable (6')
1036139
Molded BNC (Male - Male) Cable (6')
Visuals Price
18.70 CHF
VAT excl.
20.21 CHF Inc. VAT
Manufacturer price 22,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer Moulded BNC Cable (Male - Male) (6')
Kramer's C-BM/BM is constructed with high-performance RG-6 cable fitted with 75Ω BNC connectors at each end. It provides exceptional quality, durability and high performance for all video signal applications.
Features
- Quality Construction — RG-6 cable for high-resolution signals.
- High-Quality Connectors — True 75Ω BNC connectors maintain correct end-to-end impedance.
- Wide Selection of Lengths — Available in 0.5 to 45.7m (1.5 to 150ft) versions.
- Cable Specifications — Tested to 3G. For detailed cable specifications, see Kramer BC-1X.
Kramer's C-BM/BM is constructed with high-performance RG-6 cable fitted with 75Ω BNC connectors at each end. It provides exceptional quality, durability and high performance for all video signal applications.
Features
- Quality Construction — RG-6 cable for high-resolution signals.
- High-Quality Connectors — True 75Ω BNC connectors maintain correct end-to-end impedance.
- Wide Selection of Lengths — Available in 0.5 to 45.7m (1.5 to 150ft) versions.
- Cable Specifications — Tested to 3G. For detailed cable specifications, see Kramer BC-1X.
|
|
Specifications |
|
|
Conductor |
Bare Solid Copper 18 AWG |
|
|
Dielectric |
Foam Skin |
|
|
Shield |
A: 61% Braid 34 AWG Aluminium Wire |
|
|
Outer Jacket |
PVC |
|
|
Centre Conductor |
1.02mm (0.0403in) |
|
|
Dielectric |
4.57mm (0.179in) |
|
|
Outer Diameter |
6.95mm (0.391in) |
|
|
Impedance |
75Ω |
|
|
DC Resistance |
21.8Ω/km (6.6Ω/1000ft) |
|
|
Capacitance |
53.1pF/m (16.1pF/ft) |
|
|
Propagation Velocity |
82% |
|
|
Temperature |
–20° to 75°C (–4° to 167°F) |
|
|
Attenuation (dB/100ft) |
–0.3dB @1MHz |
|
|
Regulations |
UL: CL2 |
Molded BNC (Male - Male) Cable (6')
