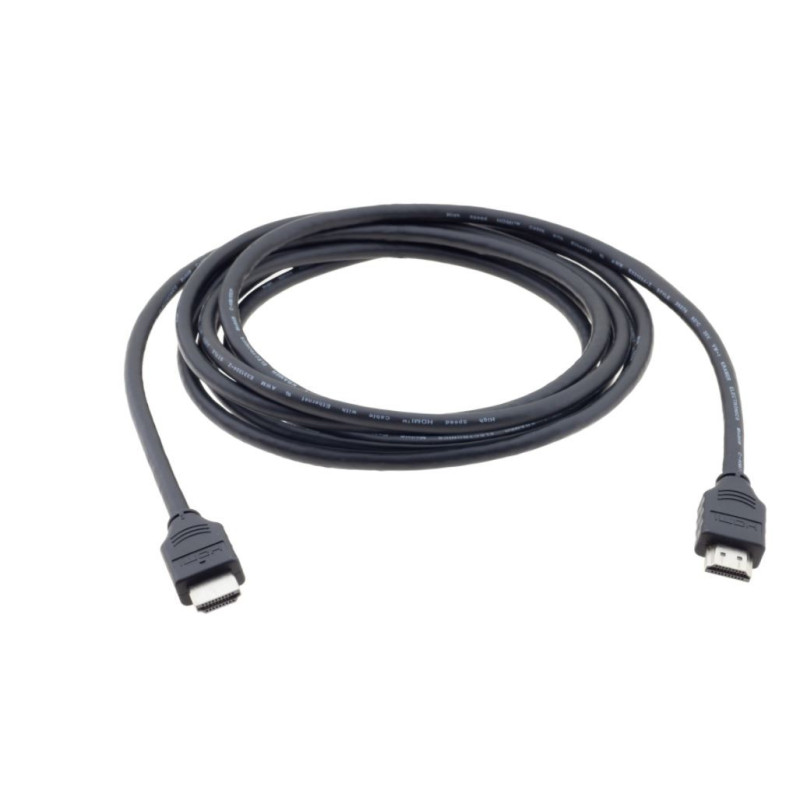

Kramer C-HM/EEP-10 - High speed HDMI cable with Ethernet Cable (10')
48.70 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
C−HM/EEP is a high-performance, high-speed HDMI cable with Ethernet and enhanced EMI protection. C−HM/EEP is specially designed for use with Kramer products in critical installations. The unique combination of a one-piece moulded HDMI connector, internal metal shell, triple shielding construction and lightweight, compact design offers unmatched installation flexibility and robustness.
Features
- High-performance cable — Transmits HDMI signal up to 4K@60Hz (4:4:4) resolution and data rates up to 18 Gbit/s.
- Integrated audio — 8-channel PCM, Dolby Digital True HD and DTS-HD Master Audio.
- Supports HDCP 2.2, HDR10, HLG, EDID and CEC.
- RoHS compliant 2011/65/EU.
- Different lengths — Available in 0.9 to 3.0 m (3 to 10 ft) versions.
|
|
Specifications |
|
|
Resolution |
Up to 4K@60Hz 4:4:4, 8-bit, Full HD, 3D, Deep Colour |
|
|
Data Rate |
Up to 18 Gbit/s |
|
|
Integrated Audio |
8-channel PCM, Dolby Digital True HD and DTS-HD Master Audio |
|
|
HDMI Compliance |
HDCP 2.2, HDR10, HLG, EDID and CEC |
|
|
HDMI Connector |
HDMI male Type — A, one-piece connector |
|
|
Internal Metal Shell |
Yes |
|
|
Cable Shielding |
Triple shielding eliminates RF and EM interference |
|
|
AWG |
0.9-3 m — 30AWG (7/0.10) |
|
|
Material |
Tinned Copper |
|
|
Diameter |
0.9-3 m: 6 ± 0.19 |
|
|
Rated Temperature |
80°C |
|
|
Rated Voltage |
30V |
|
|
Conductor Resistance |
30AWG: 379.96Ω/km at 25℃ |
|
|
Dielectric Strength |
AC — 750V/1sec MIN |
|
|
Insulation Resistance |
FOAM–SKIN–PE,PP:DC–500V 100 MΩ/KM MIN. at 20℃ |
|
|
Differential Impedance |
100±10Ω |
|
|
Regulation |
Classification: VW-1 |
