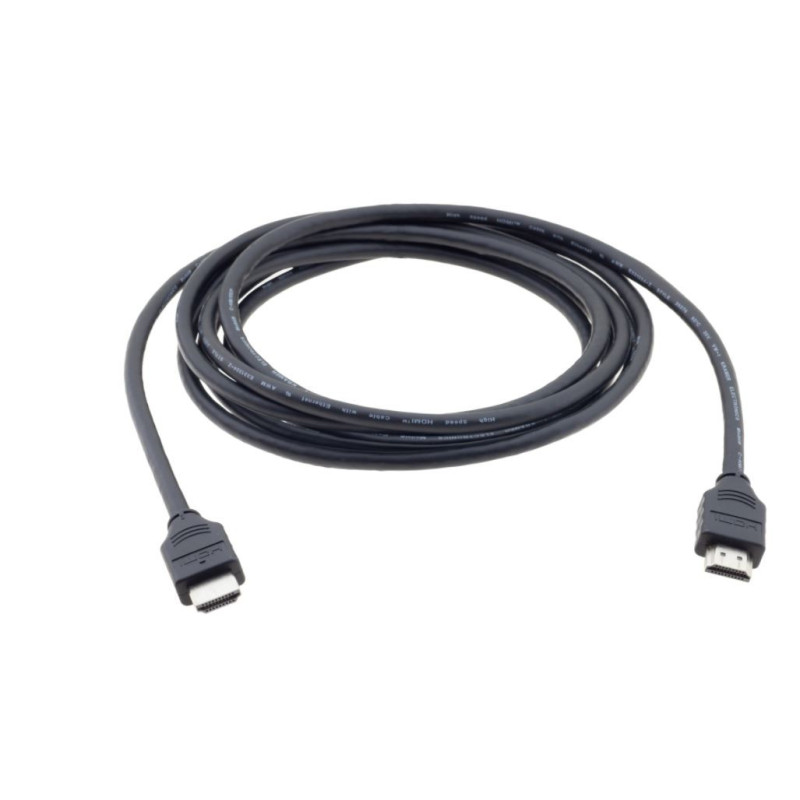

Kramer C-HM/EEP-6 - High Speed HDMI cable with Ethernet Cable (6')
39.51 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
C−HM/EEP is a high-performance, high-speed HDMI cable with Ethernet and enhanced EMI protection. C−HM/EEP is specially designed for use with Kramer products in critical installations. The unique combination of a one-piece moulded HDMI connector, internal metal housing, triple-shield construction and lightweight, compact design offers unmatched installation flexibility and robustness.
Features
- High-performance cable — Transmits HDMI signal up to 4K@60Hz (4:4:4) resolution and data rates up to 18 Gbps.
- Embedded audio — 8-channel PCM, Dolby Digital True HD and DTS–HD Master Audio.
- Supports HDCP 2.2, HDR10, HLG, EDID and CEC.
- RoHS 2011/65/EU compliant.
- Different lengths — Available in 0.9 to 3.0 m (3 to 10 ft) versions.
|
|
Specifications |
|
|
Resolution |
Up to 4K@60Hz 4:4:4, 8-bit, Full HD, 3D, Deep Colour |
|
|
Data rate |
Up to 18 Gbps |
|
|
Embedded audio |
8-channel PCM, Dolby Digital True HD and DTS–HD Master Audio |
|
|
HDMI compliance |
HDCP 2.2, HDR10, HLG, EDID and CEC |
|
|
HDMI connector |
HDMI Type A male, one-piece connector |
|
|
Internal metal housing |
Yes |
|
|
Cable shielding |
Triple shielding eliminates RF and EM interference |
|
|
AWG |
3-10 ft — 30AWG (7/0.10) |
|
|
Material |
Tinned copper |
|
|
Diameter |
3-10 ft: 6 ± 0.19 |
|
|
Rated temperature |
80°C |
|
|
Rated voltage |
30V |
|
|
Conductor resistance |
30AWG: 379.96Ω/km at 25℃ |
|
|
Dielectric strength |
AC — 750V/1sec MIN |
|
|
Insulation resistance |
FOAM–SKIN–PE,PP:DC–500V 100 MΩ/KM MIN. at 20℃ |
|
|
Differential impedance |
100±10Ω |
|
|
Regulation |
Classification: VW-1 |
