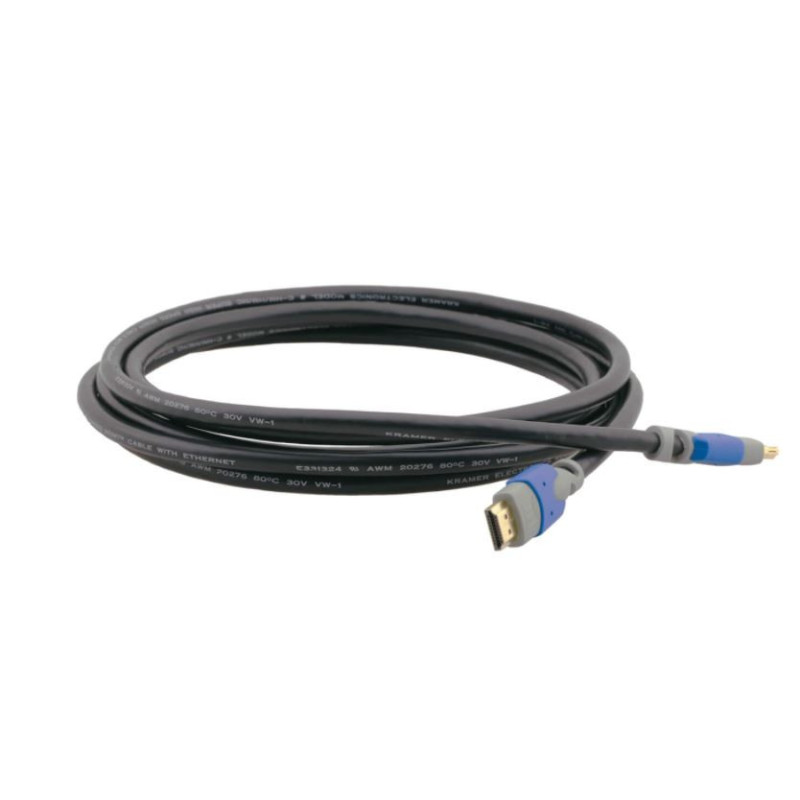

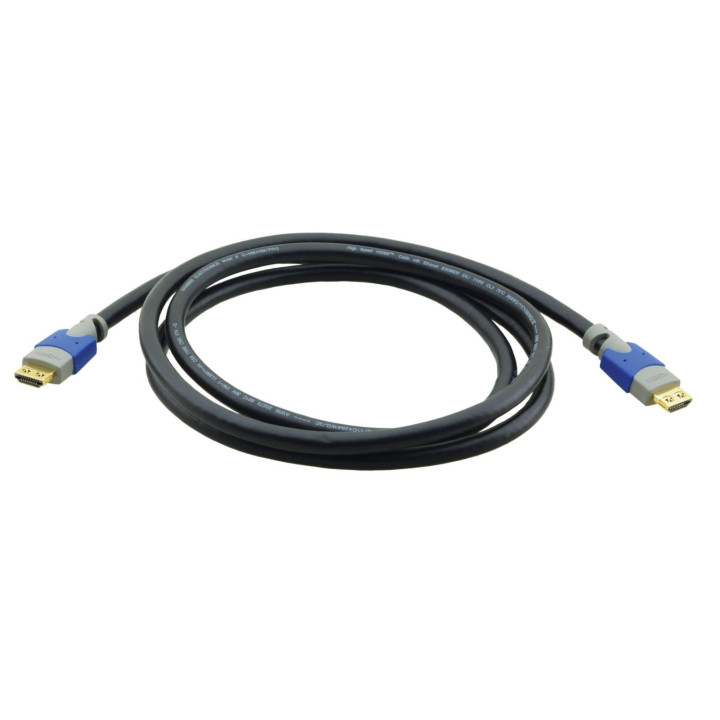

Kramer C-HM/HM/PRO-40 - HDMI Home Cinema (Male - Male) with Ethernet Cable (40')
132.31 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Kramer's C-HM/HM/PRO HDMI cable delivers high-speed, high-performance digital audio and video transmission with flawless impedance stability, low distortion, high signal integrity and noise immunity up to 4K@60Hz (4:4:4). With its robust professional construction, triple-shielded pairs and K-Lock connectors, PRO series cables are rugged and reliable for the most demanding applications.
Features
- Max. data rate — 18 Gbit/s.
- Max. resolution — 4K@60Hz (4:4:4).
- Deep Colour — Supports 24-bit, 30-bit, 36-bit and 48-bit (RGB or YCbCr) colour depths. Ideal for multimedia applications or home theatre and surround sound systems.
- Multichannel audio support — Supports audio stream for external decoding by AV receivers and automatic audio synchronisation capabilities.
- High-quality connectors — 24K gold-plated, corrosion-resistant and providing the best possible connectivity.
- Pull-resistant K-Lock connectors — Provides 6.8 kg retention force for an anti-slip connection.
- Shielding — Triple overall shielding against EMI/RFI interference
|
|
Specifications |
|
|
Maximum data rate for 7.6 to 12 m (25 to 40 feet) |
10.2 Gbit/s (3.4 Gbit/s per channel) |
|
|
Maximum resolution for lengths 7.6 to 12 m (25 to 40 feet) |
4K@30Hz (4:4:4) |
|
|
Supported colour spaces |
RGB, YCbCr, xvYCC, Adobe sRGB, sYCC601, BT.2020 |
|
|
HDMI compliance |
HDR, HDCP 2.2, EDID and CEC, ARC and ETH |
|
|
Supported audio formats |
Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio, DVD Audio, SA–CD |
|
|
HDMI source |
On a 24K gold-plated HDMI Type A male connector with K-Lock |
|
|
HDMI display |
On a 24K gold-plated HDMI Type A male connector with K-Lock |
|
|
Material |
Bare copper |
|
|
Lengths 0.9 to 12 m (3 to 40 feet) |
26AWG (7/0.160) |
|
|
Type |
Triple shielding |
|
|
Diameter for lengths 0.9 to 12 m (3 to 40 feet) |
8 ± 0.19mm |
|
|
Cable bend radius for lengths 0.9 to 12 m (3 to 40 feet) |
80mm |
|
|
Rated temperature |
80°C |
|
|
Rated voltage |
30V |
|
|
Conductor resistance – 26AWG |
148Ω/km |
|
|
Standards compliance |
Safety: Flame rating — CL3/FT4 |
