Kramer C-HM/HM/PICO/BK-2 - Slim High-Speed HDMI Cable with Ethernet - Black - 0.6m

185639
Kramer C-HM/HM/PICO/BK-2 - Slim High-Speed HDMI Cable with Ethernet - Black - 0.6m
Kramer C-HM/HM/PICO/BK-2 - Slim High-Speed HDMI Cable with Ethernet - Black - 0.6m
Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
... learn more
Visuals Price
18.70 CHF VAT excl.

20.21 CHF Inc. VAT

Manufacturer price 22,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

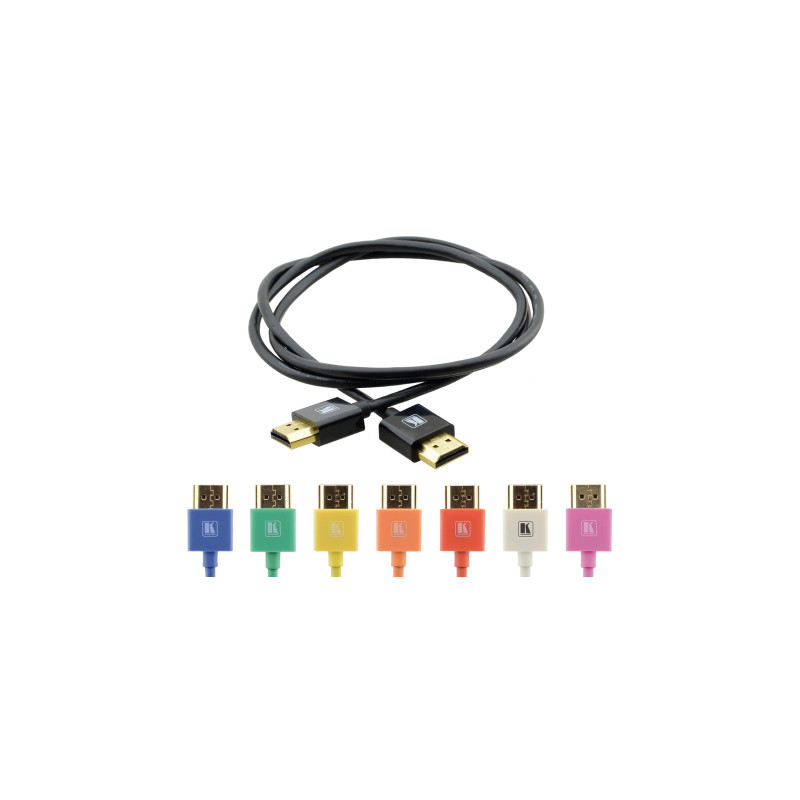

Kramer High-Speed Slim HDMI Cable with Ethernet - Black - 0.6 m
Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fit more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
- Maximum resolution - 4K@60Hz (4:4:4).
- Quality performance - Kramer's new HDMI cables provide an uncompressed digital link between consumer electronics such as DVD players, set-top boxes and audio/video monitors such as plasma displays for high-definition televisions.
- High-quality connectors - Slim HDMI connector heads measuring 16.0 mm wide and 8.0 mm thick.
- Space saving - A tighter bend radius combined with the low-profile connector saves up to 2.5 cm of depth behind equipment.
- HDMI support - Signals up to ultra-HD 4K, HDMI Ethernet channel, 3D, x.v.Color™, Deep Color, Lip Sync, PCM 7.1, Dolby TrueHD, DTS-HD, CEC.
- Available colours - Black, blue, green, yellow, orange, red, pink and white.
- Wide choice of lengths - Available in versions from 0.3 to 3.0 m (1, 2, 3, 6 and 10 feet).



Specifications



VIDEO

Maximum resolution for 0.9 to 1.8 m (3-6 feet) lengths: 4K60Hz (4:4:4)

Maximum resolution for 3 m (10 feet) length: 4K60Hz (4:2:0)

Maximum data rate for 0.9 to 1.8 m (3-6 feet) lengths: 18 Gbps (6 Gbps per channel)

Maximum data rate for 3 m (10 feet) length: 10.2 Gbps (3.4 Gbps per channel)

HDMI support: HDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision

AUDIO

Supported audio formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD

PHYSICAL CHARACTERISTICS

Connectors: 2 HDMI Type A male, 24K gold-plated connector

Bend radius: 36 mm

CONDUCTORS

Diameter: 34AWG(7/0.06)

Material: Tinned copper

SHIELDING

Type: Triple shielding

JACKET

Material: PVC

Available colours: Black, blue, green, yellow, orange, red, pink and white

Diameter: 3.6 ± 0.15 mm

ELECTRICAL CHARACTERISTICS

Rated temperature: 80⁰C

Rated voltage: 30V

Conductor resistance: 34AWG–1.08KΩ/KM MAX. at 20℃

REGULATION

Rating (NEC/UL/CSA): VW-1



Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
