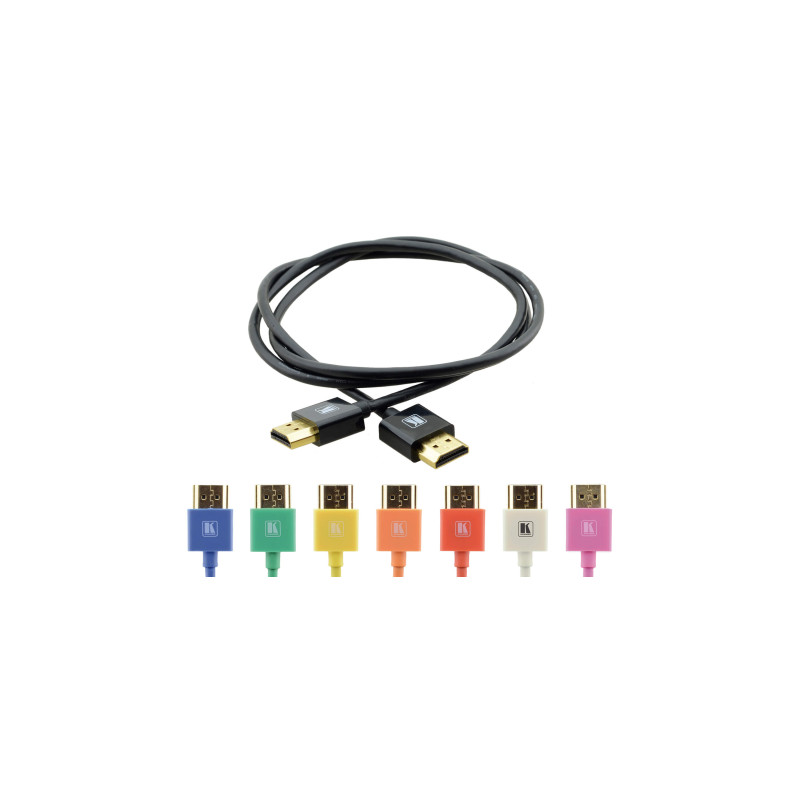

Kramer C-HM/HM/PICO/OR-10 - Slim High-Speed HDMI Cable with Ethernet - Orange - 3m

185645
Kramer C-HM/HM/PICO/OR-10 - Slim High-Speed HDMI Cable with Ethernet - Orange - 3m
Kramer C-HM/HM/PICO/OR-10 - Slim High-Speed HDMI Cable with Ethernet - Orange - 3m
Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
... learn more
Visuals Price
35.70 CHF VAT excl.

38.59 CHF Inc. VAT

Manufacturer price 42,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Slim High Speed HDMI Cable with Ethernet. Orange, 3m
Kramer's C-HM/HM/PICO is an ultra-thin High Speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fit more easily into confined spaces behind TVs or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
- Maximum resolution — 4K@60Hz (4:4:4).
- Quality performance — Kramer's new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as plasma displays for high-definition televisions.
- High-quality connectors — Slim HDMI connector heads measuring 16.0 mm wide and 8.0 mm thick (5/8" wide and 5/16" thick).
- Space saving — The tighter bend radius combined with the low-profile connector can save up to 2.54 cm of depth behind equipment.
- HDMI support — Signals up to ultra-HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, PCM 7.1, Dolby TrueHD, DTS-HD, CEC.



Specification



VIDEO

Max resolution for 0.9-1.8 m (3-6 ft) lengths: 4K60Hz (4:4:4)

Max resolution for 3 m (10 ft) length: 4K60Hz (4:2:0)

Max data rate for 0.9-1.8 m (3-6 ft) lengths: 18 Gbit/s (6 Gbit/s per channel)

Max data rate for 3 m (10 ft) length: 10.2 Gbit/s (3.4 Gbit/s per channel)

HDMI support: HDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision

AUDIO

Supported audio formats: Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio™, DVD Audio, SA-CD

PHYSICAL

Connectors: 2 Type A male HDMI, 24-carat gold-plated connector

Bend radius: 36 mm

CONDUCTORS

Diameter: 34AWG(7/0.06)

Material: Tinned copper

SHIELDING

Type: Triple shielding

JACKET

Material: PVC

Available colours: Black, blue, green, yellow, orange, red, pink and white

Diameter: 3.6 ± 0.15 mm

ELECTRICAL

Rated temperature: 80⁰C

Rated voltage: 30V

Conductor resistance: 34AWG–1.08KΩ/KM MAX. at 20℃

REGULATORY

Rating (NEC/UL/CSA): VW-1



Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
