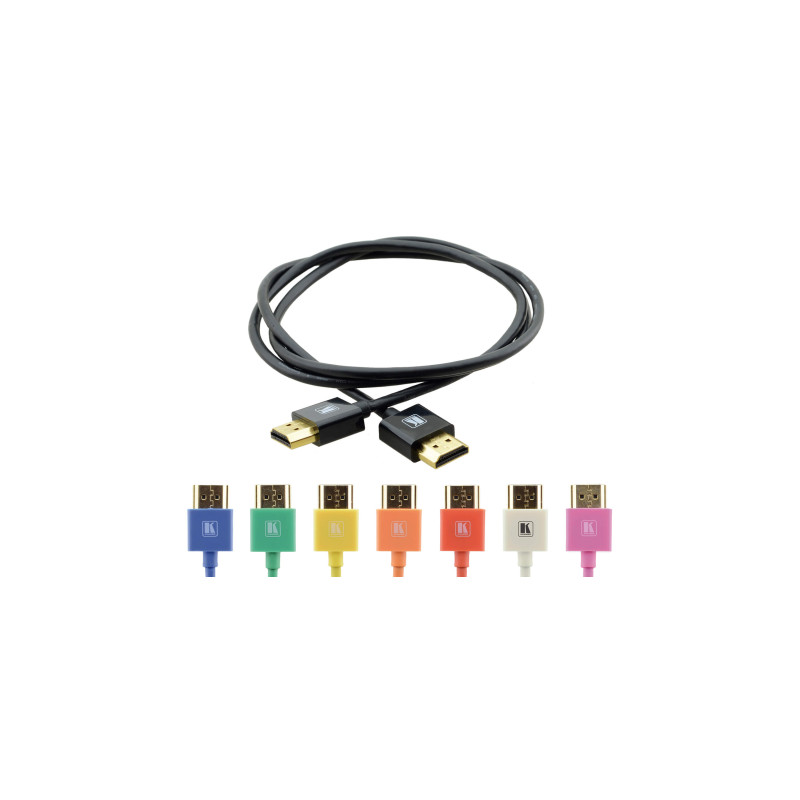

Kramer C-HM/HM/PICO/OR-6 - Slim High-Speed HDMI Cable with Ethernet - Orange - 1.8m

185647
Kramer C-HM/HM/PICO/OR-6 - Slim High-Speed HDMI Cable with Ethernet - Orange - 1.8m
Kramer C-HM/HM/PICO/OR-6 - Slim High-Speed HDMI Cable with Ethernet - Orange - 1.8m
Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
... learn more
Visuals Price
30.60 CHF VAT excl.

33.08 CHF Inc. VAT

Manufacturer price 36,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Slim High Speed HDMI Cable with Ethernet. Orange, 1.8m
Kramer's C−HM/HM/PICO is an ultra-thin High Speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fit more easily into confined spaces behind TVs or in cabinets. It supports resolutions up to 4K@60Hz (4:4:4).
- Maximum resolution — 4K@60Hz (4:4:4).
- Quality performance — Kramer's new HDMI cables provide an uncompressed digital link between consumer electronics equipment such as DVD players, set-top boxes and audio/video monitors such as plasma displays for high-definition televisions.
- High-quality connectors — Slim HDMI connector heads measuring 16.0mm wide and 8.0mm thick (5/8" wide and 5/16" thick).
- Space saving — A tighter bend radius combined with the low-profile connector saves up to 2.54cm of depth behind equipment.
- HDMI support — Signals up to ultra-HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, PCM 7.1, Dolby TrueHD, DTS–HD, CEC.



Specification



VIDEO

Maximum resolution for 0.9-1.8m (3-6 ft) lengths: 4K60Hz (4:4:4)

Maximum resolution for 3m (10 ft) length: 4K60Hz (4:2:0)

Maximum data rate for 0.9-1.8m (3-6 ft) lengths: 18Gbps (6 Gbps per channel)

Maximum data rate for 3m (10 ft) length: 10.2Gbps (3.4 Gbps per channel)

HDMI support: HDCP 2.2, EDID, CEC, HDR-10, HLG, Dolby Vision

AUDIO

Supported audio formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL

Connectors: 2 HDMI male Type A, 24-carat gold-plated connector

Bend radius: 36mm

CONDUCTORS

Diameter: 34AWG(7/0.06)

Material: Tinned copper

SHIELDING

Type: Triple shielding

JACKET

Material: PVC

Available colours: Black, blue, green, yellow, orange, red, pink and white

Diameter: 3.6± 0.15mm

ELECTRICAL

Rated temperature: 80⁰C

Rated voltage: 30V

Conductor resistance: 34AWG-1.08KΩ/KM MAX. at 20℃

REGULATORY

Rating (NEC/UL/CSA): VW-1



Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
