Kramer C-HM/HM/PICO/WH-6 - Slim High-Speed HDMI Cable with Ethernet - White - 1.8m

185656
Kramer C-HM/HM/PICO/WH-6 - Slim High-Speed HDMI Cable with Ethernet - White - 1.8m
Kramer C-HM/HM/PICO/WH-6 - Slim High-Speed HDMI Cable with Ethernet - White - 1.8m

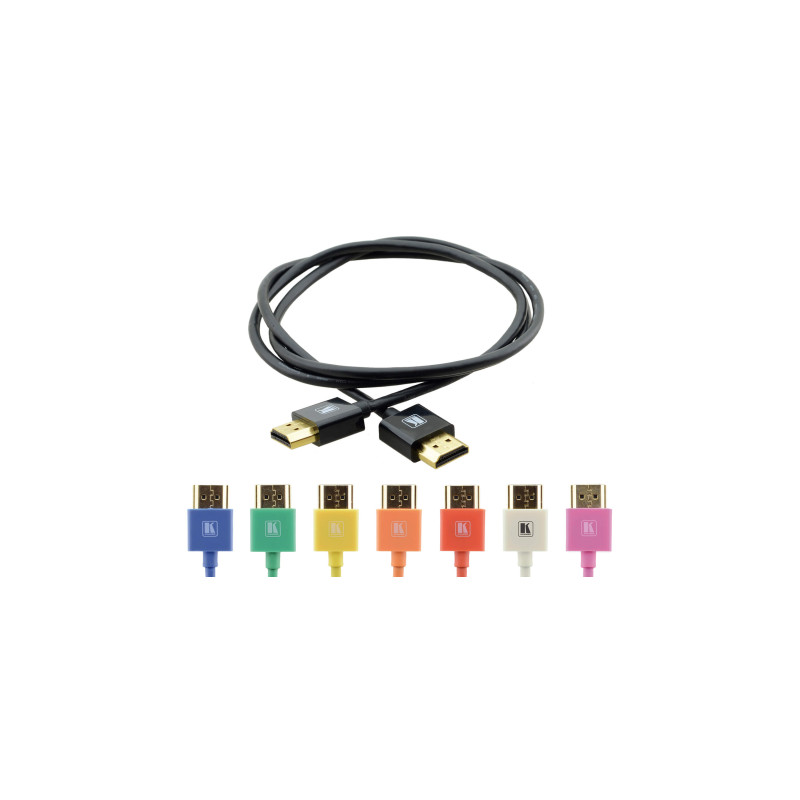

Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
... learn more
Visuals Price
30.60 CHF VAT excl.

33.08 CHF Inc. VAT

Manufacturer price 36,00 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Kramer Slim High Speed HDMI Cable with Ethernet - White - 1.8 m
Kramer's C-HM/HM/PICO is an ultra-slim high speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fit more easily into restricted spaces behind televisions or in cabinets. It supports resolutions up to 4K@60Hz (4:4:4).
- Maximum resolution - 4K@60Hz (4:4:4).
- Quality performance - Kramer's new HDMI cables provide an uncompressed digital link between consumer electronic equipment such as DVD players, set-top boxes and audio/video monitors such as plasma displays for high-definition television.
- High-quality connectors - Slim HDMI connector heads 16.0 mm wide and 8.0 mm thick (5/8" wide and 5/16" thick).
- Space saving - A tighter bend radius combined with the low-profile connector can save up to 2.5 cm depth behind equipment.
- HDMI support - Signals up to ultra-HD 4K, HDMI Ethernet Channel, 3D, x.v.Color™, Deep Color, Lip Sync, PCM 7.1, Dolby TrueHD, DTS-HD, CEC.
- Available colours - Black, blue, green, yellow, orange, red, pink and white.
- Wide choice of lengths - Available in versions from 0.3 to 3.0 m (1, 2, 3, 6 and 10 feet).



Specifications



VIDEO

Maximum resolution for lengths of 0.9-1.8 m (3-6 feet): 4K60Hz (4:4:4)

Maximum resolution for 3 m (10 feet) length: 4K60Hz (4:2:0)

Max. data rate for lengths of 0.9-1.8 m (3-6 feet): 18 Gbps (6 Gbps per channel)

Max. data rate for 3 m (10 feet) length: 10.2 Gbps (3.4 Gbps per channel)

HDMI support: HDCP 2.2, EDID, CEC, HDR–10, HLG, Dolby Vision

AUDIO

Supported audio formats: Dolby Digital Plus, Dolby TrueHD, DTS–HD Master Audio™, DVD Audio, SA–CD

PHYSICAL CHARACTERISTICS

Connectors: 2 HDMI Type A male, 24K gold-plated connector

Bend radius: 36 mm

CONDUCTORS

Diameter: 34AWG(7/0.06)

Material: Tinned copper

SHIELDING

Type: Triple shielding

SHEATH

Material: PVC

Available colours: Black, blue, green, yellow, orange, red, pink and white

Diameter: 3.6 ± 0.15 mm

ELECTRICAL

Rated temperature: 80°C

Rated voltage: 30V

Conductor resistance: 34AWG–1.08KΩ/KM MAX. at 20℃

REGULATION

Classification (NEC/UL/CSA): VW–1



Kramer's C-HM/HM/PICO is an ultra-slim high-speed HDMI cable with Ethernet. The slim HDMI connector and narrower cable diameter fits more easily into tight spaces behind televisions or in a cabinet. It supports resolutions up to 4K@60Hz (4:4:4).
