Adder - 1 Year Enhanced Warranty CCS-MV4228
Adder EW-MV8 - 1 Year Enhanced Warranty CCS-MV4228
1079719
1 Year Enhanced Warranty CCS-MV4228
Visuals Price
869.00 CHF
VAT excl.
939.39 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
|
|
Specifications |
|
| Video information (For 1 screen) | ||
| Maximum resolution | UHD 4k (3840x2160) in 4:4:4 | |
| Frame rate | 30 | |
| Colour depth | 8 bpc | |
| Video information (For 2 screens) | ||
| Maximum resolution | UHD 4k (3840x2160) in 4:4:4 | |
| Frame rate | 30 | |
| Colour depth | 8 bpc | |
| Computer connections | ||
| USB B | 8× 2.0 True emulation (HID only) | |
| USB B | 8× 2.0 High Speed | |
| Dual port (DP+HDMI) | 8× 1.2 (dual mode) | |
| Console connections | ||
| USB A | 2× 2.0 HID emulation | |
| USB A | 1× 2.0 High Speed | |
| Dual port (DP & HDMI) | 2× 1.2 (dual mode) | |
| Serial ports | ||
| Serial connection | 1× | |
| Serial standard | RS232 | |
| Additional serial information | For remote control | |
| Serial connection type (console) | RJ12 (6p6c) | |
| Audio connections | ||
| Audio type | Analogue/Digital | |
| Channels | 2 | |
| Audio output ports | 1× 3.5mm jack | |
| Audio direction | Output only | |
| Network support | ||
| 10/100 support | No | |
| Environment | ||
| Operating temperature | 0 - 40 °C / 32 - 104 °F | |
| Storage temperature | -20 - 60 °C / -4 - 140 °F | |
| Operating humidity (%) | 0% - 80% (non-condensing) | |
| Storage humidity (%) | 0% - 80% (non-condensing) | |
| Warranty | 2 years | |
| Temperature regulation | Built-in fan | |
| Power source | ||
| 12V 3-pin | 1× | |
| Input power supply | PSU 4A | |
| Additional power information | 100-240V AC, 47/63Hz. 12V DC 48W output from power supply unit | |
| Power consumption | ||
| Maximum power (Watts) | 36 | |
| Maximum power (Volts) | 12 | |
| Maximum power (Current) | 3 | |
| Physical design | ||
| Construction material | Robust metal construction | |
| U size | 2 | |
| Width | 439mm / 17.3in | |
| Height | 58mm / 2.3in | |
| Depth | 237mm / 9.30in | |
| Weight | 3.8kg / 8.4lb | |
| Front panel features | ||
| Multi-coloured status LEDs | 8× | |
| E-Paper display | 1× | |
| Compatibility | ||
| OS compatibility | Windows, Linux, macOS | |
| Approvals and standards | ||
| Approvals | CE, cTUVus, FCC, ICES, UKCA | |
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B | |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH | |
| Ordering information | ||
| Code | Description | |

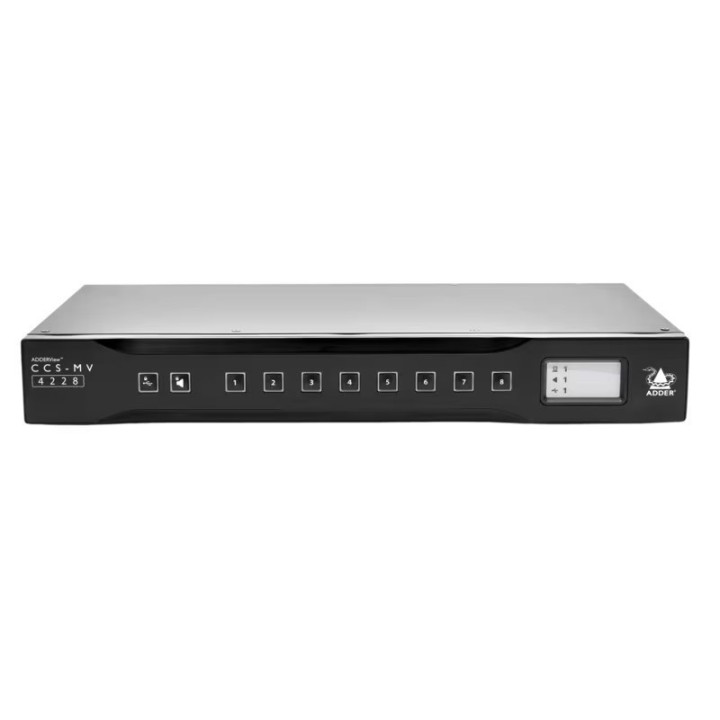

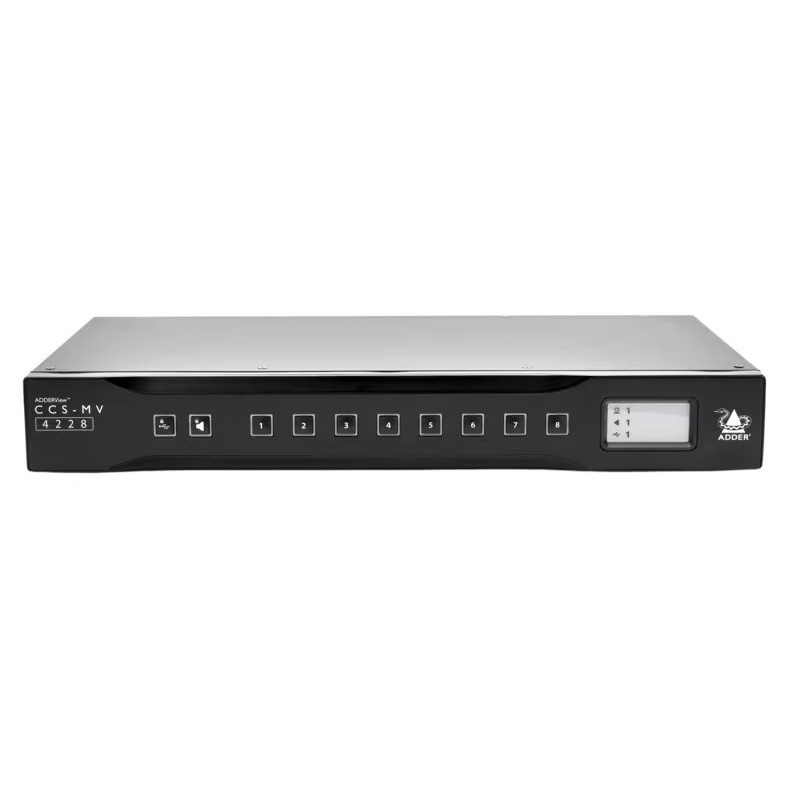

| CCS-MV4228 | ADDERView® CCS Multi-Viewer 8-port 4K Switch | |
1 Year Enhanced Warranty CCS-MV4228
