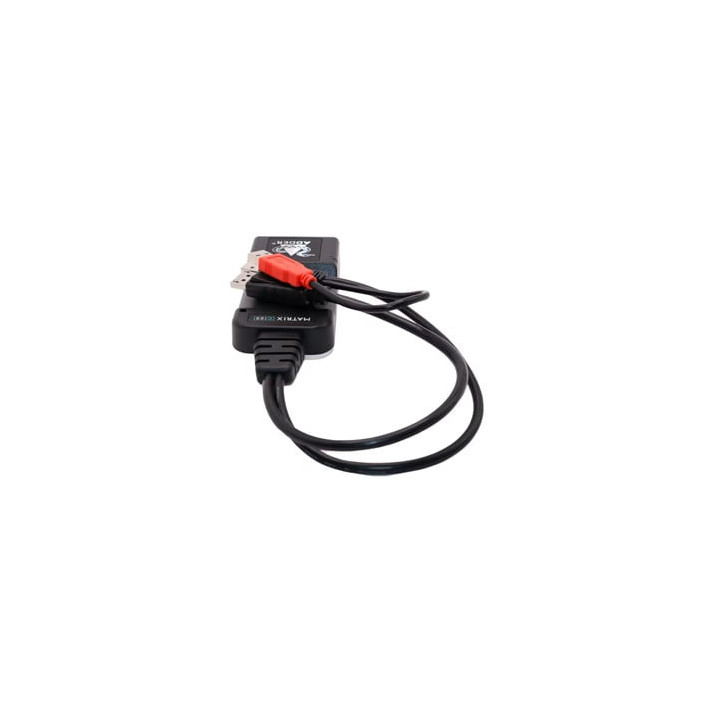

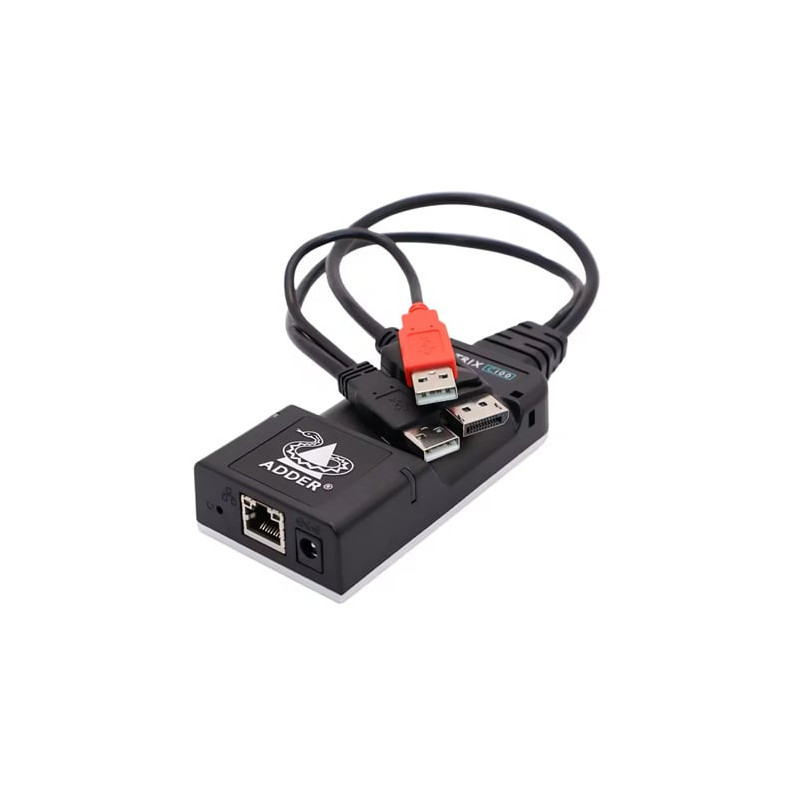

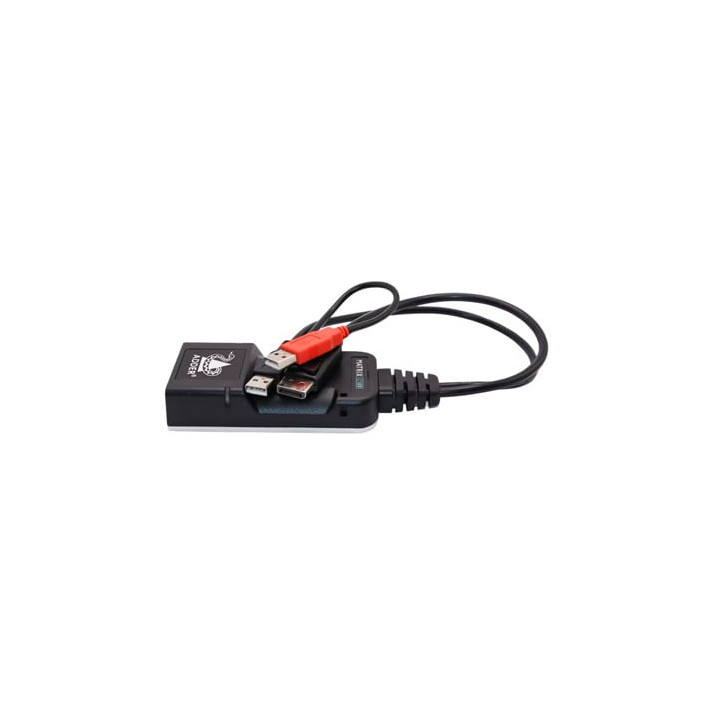

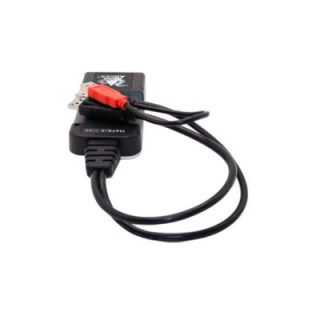

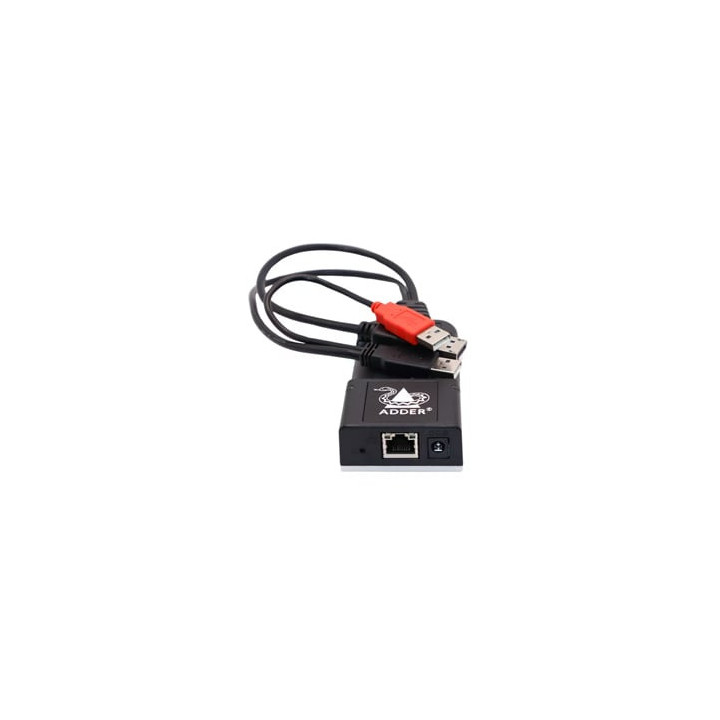

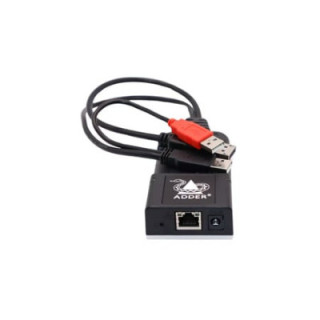

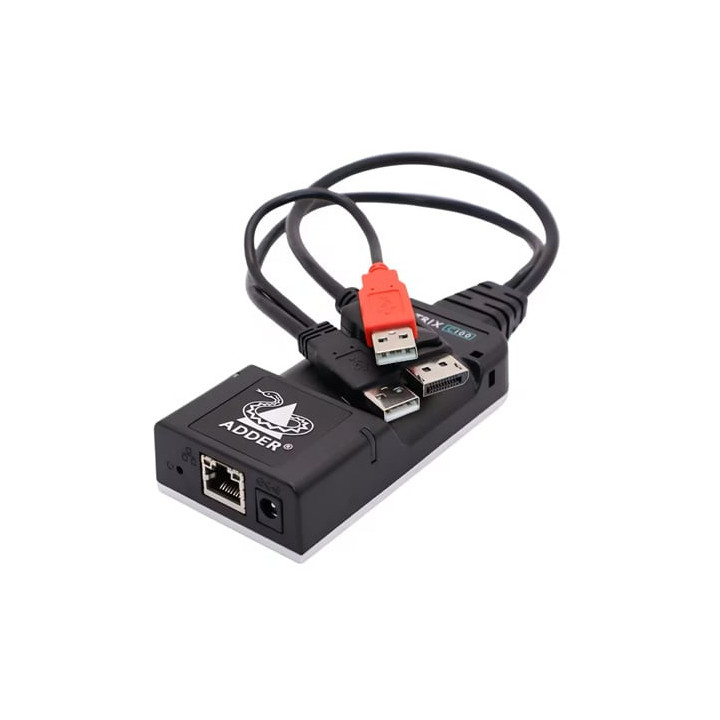

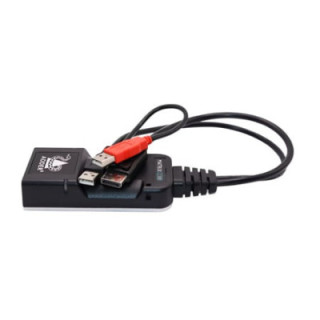

Adder ES-AVM110-CAM - 1 year Elite Service AVM-C110-CAM-DP and AVM-C110-CAM-HM
1086400
1 year Elite Service AVM-C110-CAM-DP and AVM-C110-CAM-HM
Visuals Price
49.00 CHF
VAT excl.
52.97 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Features of the Adder ES-AVM110-CAM
| Video information (for 1 screen) | |
| Maximum resolution | 2560 x 1600 |
| Refresh rate | 60 |
| Colour depth | 8 bpc |
| Computer connections | |
| USB A | 2x 2.0 Full emulation, High speed, Low speed, Full speed |
| Full-size DisplayPort | 1x 1.1 (dual mode) |
| Link ports | |
| 8p8c | 1x RJ45 |
| Audio connections | |
| Audio type | Digital |
| Channels | 2 |
| Audio input ports | 1x USB |
| Audio direction | Bidirectional |
| Dimensions | 16 bits |
| Speed | 48 kHz |
| Additional information | 2-channel linear PCM digital audio |
| Cabling requirements | |
| Recommended cable type | CAT5e and above |
| Maximum cable length | 100 m (328 ft) |
| Network support | |
| Bandwidth | 1GbE |
| 10/100 support | No |
| Environment | |
| Operating temperature | 0°C - 50°C (32°F - 122°F) |
| Storage temperature | 0°C - 50°C (32°F - 122°F) |
| Operating humidity | 10% - 90% (non-condensing) |
| Storage humidity | 10% - 90% (non-condensing) |
| Altitude | 2000 m (6562 ft) |
| Mean time between failures (MTBF) | 868,000 |
| MTBF standard | Telcordia SR332 Issue 4 March 2016 Calculated at 55°C |
| Temperature control | Without fan |
| Power source | |
| USB power | 2x |
| 5 V | 1x |
| Additional power information | |
| Power consumption | |
| Maximum power | 5 W |
| Typical power | 3 W |
| Physical design | |
| Construction material | ABS and aluminium construction |
| UK size | 0 |
| Width | 55 mm (2.2") |
| Height | 25 mm (1") |
| Depth | 110 mm (4.30") |
| Flexible cable length | 300 mm |
| Weight | 0.2 kg (0.4 lb) |
| Compatibility | |
| Operating system compatibility | All known operating systems |
| System requirements | Requires a DisplayPort source compatible with dual mode (DP++) |
| Certifications and standards | |
| Certifications | CE, cULus - E476334, FCC, ICES, UKCA |
| Standards | ANSI 63.4, EN55032/CISPR 32, EN55035/CISPR 35, EN63000, FCC pt15B, ICES003 |
| Other | Cal Prop 65, China RoHS, EU REACH, UK REACH |
| Packaging box | |
| Length | 292 mm (11.5") |
| Width | 245 mm (9.6") |
| Depth | 55 mm (2.2") |
| Weight | 0.5 kg (1.1 lb) |
1 year Elite Service AVM-C110-CAM-DP and AVM-C110-CAM-HM
