Rode - RF-bias Long Shotgun Microphone

Rode NTG8 - RF-bias Long Shotgun Microphone

1001238
0698813002283
Rode NTG8 - RF-bias Long Shotgun Microphone
Rode NTG8 - RF-bias Long Shotgun Microphone
Rode NTG8 - RF-bias Long Shotgun Microphone
Rode NTG8 - RF-bias Long Shotgun Microphone
NTG8 is a broadcast quality RF-bias shotgun microphone that exhibits increased directionality across a wide frequency response range. This makes the NTG8 the perfect microphone for film, television, sports and outdoor broadcasting, live performance, and any professional distance miking application
... learn more
Visuals Price
739.46 CHF VAT excl.

799.36 CHF Inc. VAT

Manufacturer price 840,30 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

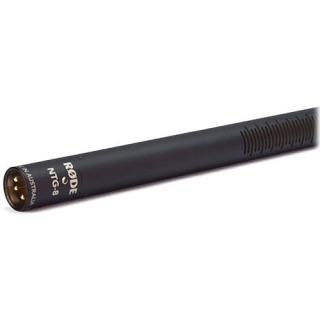

Rode NTG8 Broadcast-Quality Long-Range Shotgun Microphone

The Rode NTG8 broadcast-quality long-range shotgun microphone follows in the tradition of the NTG3 shotgun microphone with broadcast-quality performance, uniform directionality and robust construction. The NTG8 measures 559 mm (22") in length and features an externally RF-biased supercardioid condenser, offering high resistance to moisture and adverse weather conditions.

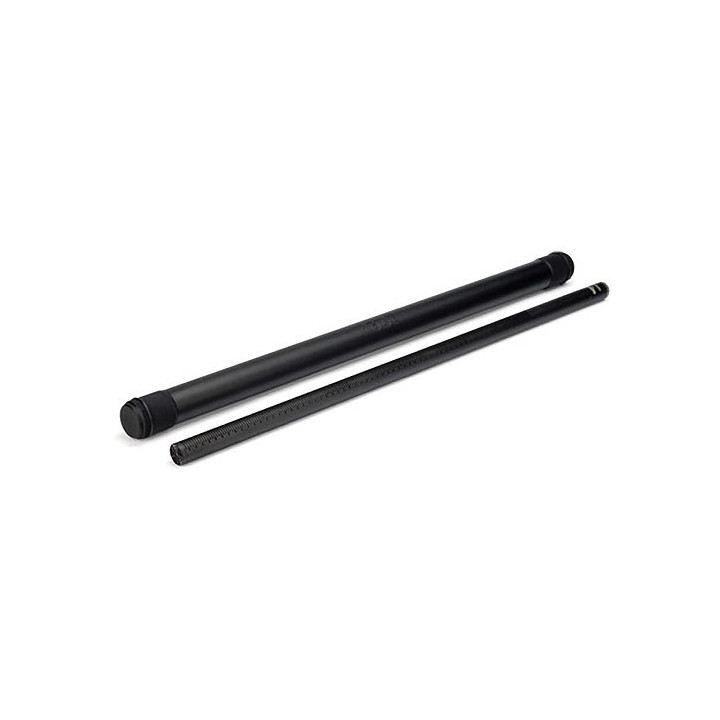

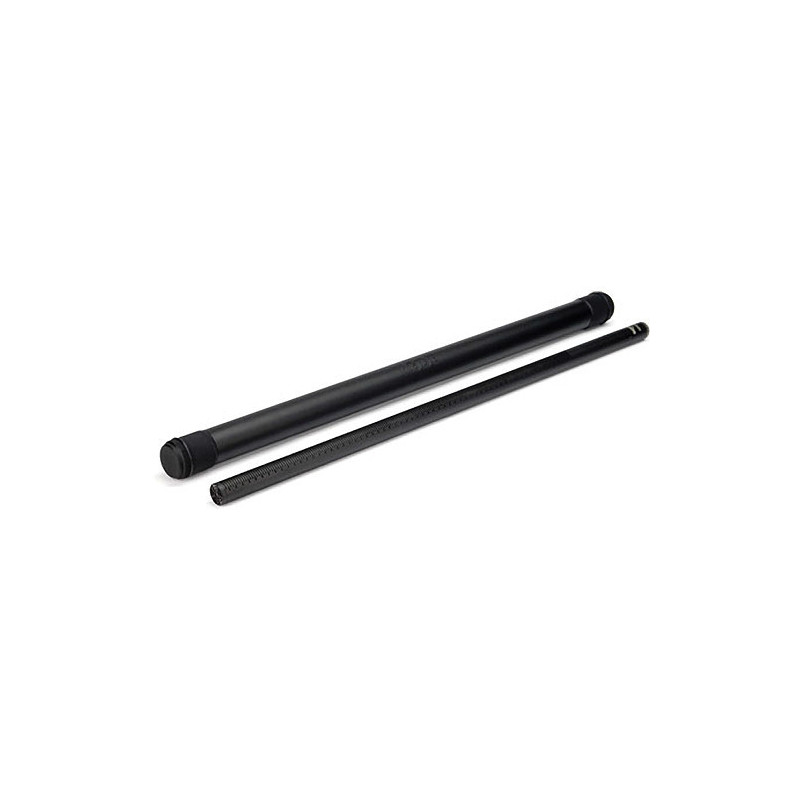

Its extended length makes the NTG8 a viable choice for achieving high levels of intelligibility, detail and low noise during wide shots, or when positioned further away from the signal source. The NTG8's frequency response, sensitivity and dynamic range make it an ideal choice for video audio, feature films, documentaries, live broadcasts and much more. The microphone is powered by (external) phantom power and includes a windshield, shock mount and aluminium storage case.
- High level of intelligibility for wide shots and long distances
- Highly directional polar response
- Natural on-axis and off-axis sound
- Designed to withstand harsh environmental conditions
- Extremely low handling noise
- High level of immunity to radio frequency interference
- Condenser (external RF bias)
- High sensitivity
- Enhanced broadcast sound quality



Technical specifications





Transducer

Line gradient



Frequency response

40 ~ 20,000 Hz



Nominal impedance

25 ohms



Maximum output

+8.2 dBu
(@ 1% THD into 1 kOhm)



Directionality

Supercardioid



Sensitivity

-20 dB ±2 dB re 1 V/Pa @ 1 kHz



Dynamic range (typical)

116 dB (per IEC651)



Signal-to-noise ratio

81 dB SPL (A-weighted per IEC651)



Equivalent noise

8 dBA SPL (A-weighted per IEC651)



Maximum input sound level

124 dB (@ 1 kHz, 1% THD into a 1 kOhm load)



Power requirement

48 V phantom power (44-52 V min 2.5 mA)



Output connectors

3-pin XLR, balanced output on pin 2 (+), pin 3 (-) and pin 1 (ground)



Dimensions (L x Diameter)

559 x 19 mm (22 x 0.74")



Weight

345 g (12.07 oz)
