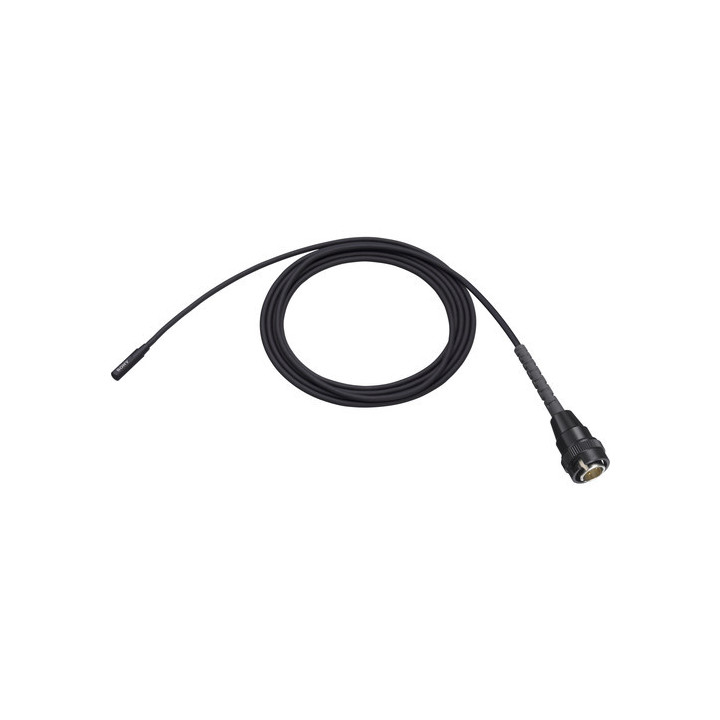

Sony ECM-90BC - Electret condenser microphone

1009873
0027242915299
Sony ECM-90BC - Electret condenser microphone
Sony ECM-90BC - Electret condenser microphone
Electret Condenser super miniature lavalier microphone, omni-dir, 4-pin Hirose SCM
... learn more
Visuals Price
408.60 CHF VAT excl.

441.70 CHF Inc. VAT

Manufacturer price 430,11 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

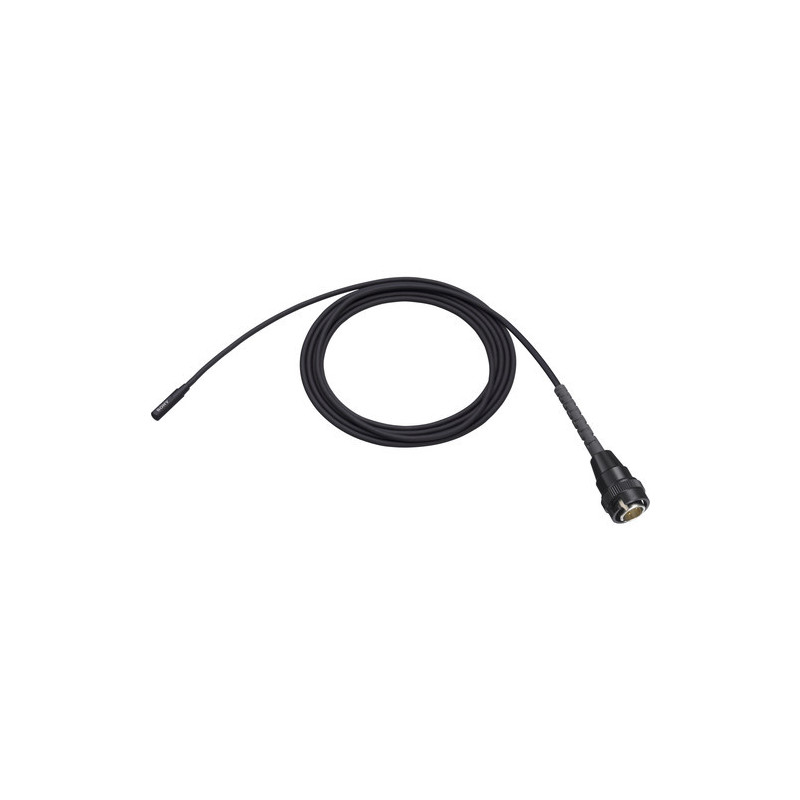

Sony ECM-90BC Ultra-Compact Dual Capsule Electret Condenser Microphone
The Sony ECM-90BC Ultra-Compact Dual Capsule Electret Condenser Microphone is an omnidirectional microphone with a flat and wide frequency response and splash-resistant design, terminating in a Sony 4-pin connector (SMC9-4P). It can be used to capture audio for stage, theatre, broadcast and television applications when paired with a wireless transmitter (sold separately). Additionally, the microphone includes a 1.2-metre cable, a urethane windshield and vertical and horizontal mounting clips.



Specifications



Audio Section



Capsule Type

Electret Condenser

Frequency Response

20 Hz to 20 kHz

Directionality

Omnidirectional

Sensitivity

−38 dB (12.6 mV)

Output Impedance

2.5 kΩ (unbalanced)

Dynamic Range (typ.)

99 dB

Signal-to-Noise Ratio (typ.)

68 dB

Inherent Noise (typ.)

26 dB SPL

Wind Noise

45 dB SPL or less (with supplied windshield)

Maximum Input Sound Pressure Level (typ.)

125 dB SPL

General Section



Connector

BC Type. Supplied with Sony 4-pin connector (SMC9-4P)

Microphone Cable

1.2 metres

1.2 m

1.2 m



Power Requirements

DC 1.1 V to 10.0 V

Dimensions

5/32 x 5/32 x 21/26 inches (microphone head)

3.5 x 3.5 x 20.5 mm (microphone head)

Weight (microphone body, cable not included)

Approximately 0.035 oz

Approximately 1 g
