Eartec HUB953MXD - UltraLITE & HUB 9 person system

Name: Eartec HUB953MXD - UltraLITE & HUB 9 person system
Brand: Eartec
SKU: 1009960
Price: 2016 CHF
Availability: BackOrder

SKU 1009960

Eartec HUB953MXD - UltraLITE & HUB 9 person system

UltraLITE & HUB 9 person system w/ 5 Single 3 Double 1 Max 4G Double, batteries, charger & case

... learn more

Visuals Price

2,016.00 CHF VAT excl.

2,179.30 CHF Inc. VAT

Manufacturer price 2 520,00 CHF VAT excluded

Made to order

Delivery
- Shipped in 2 to 3 weeks
In-store pickup
- Available in 2 to 3 weeks

Description

Description

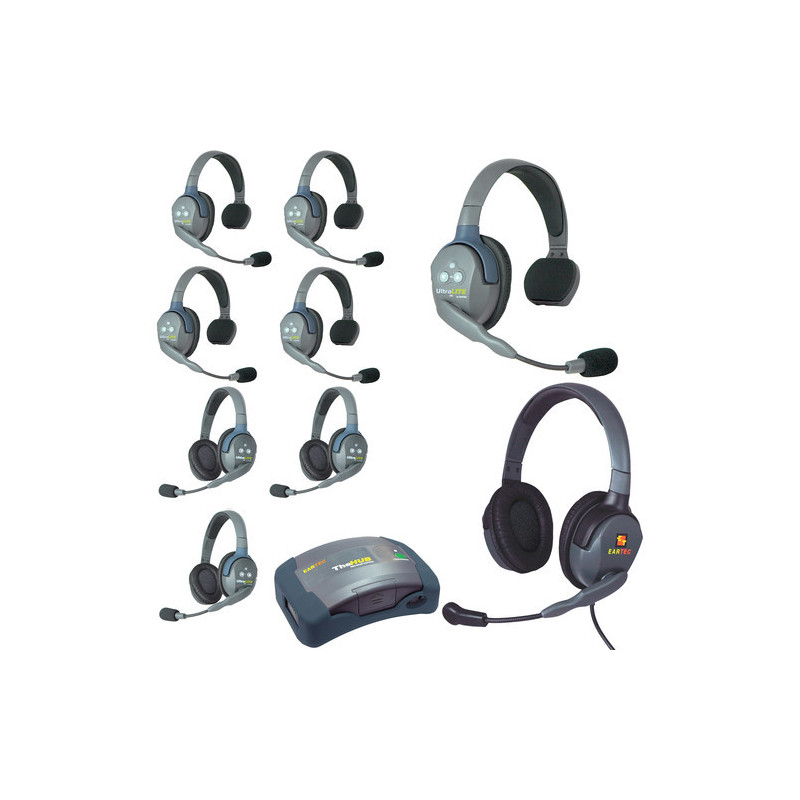

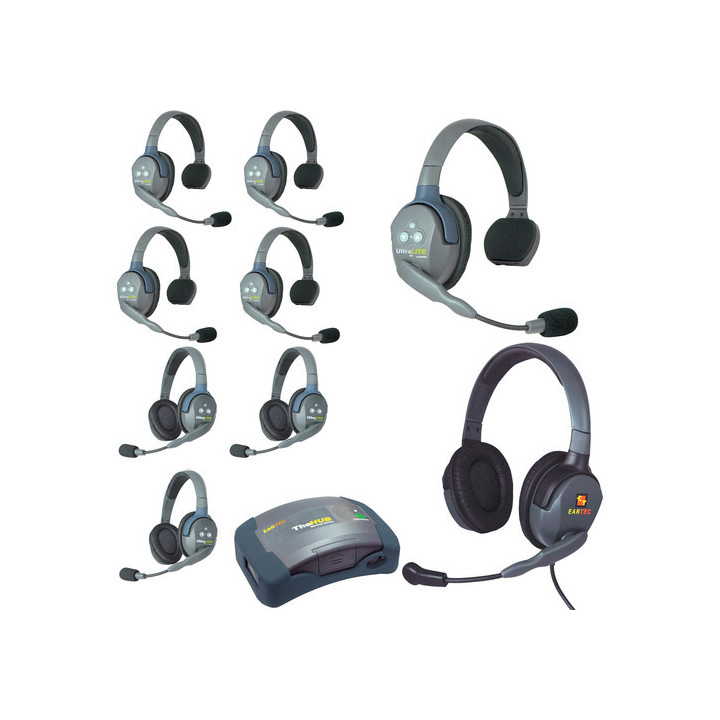

Eartec HUB953MXD - UltraLITE & HUB System for 9 people
The Eartec HUB953MXD is a professional full-duplex intercom for 9 people who need to communicate and work with their hands. This compact system includes the HUB Mini belt base with a pluggable Max4G dual-ear headset. Also included are 5 UltraLITE Remote single-ear wireless headsets and 3 UltraLITE Remote dual-ear wireless headsets. UltraLITE uses DECT (Digital Enhanced Cordless Technology) technology to provide professional simultaneous two-way wireless communication within a range of approximately 400 metres.

The UltraLITE series represents a major breakthrough as all the electronics, including the battery, are integrated directly into the headset earpieces, eliminating cables and belt-worn radios. The system requires no base station and the headsets are field-programmable, meaning the system can be expanded at any time. No FCC licence is required.

UltraLITE Headset

UltraLITE headsets outperform all other full-duplex wireless systems in terms of performance and convenience because the transceiver is integrated directly into the earpiece. This "all-in-one" standalone design eliminates headset cables and even belt-worn radios. They provide simultaneous two-way voice communication for users who need to work with their hands while keeping one ear free to listen to what is happening around them. The microphone boom rotates 270 degrees, allowing the headset to be worn on the left or right. The microphone mutes when in the vertical position.

	Specification
	UltraLITE Headset
	Standard	DECT 6.0 (Digital Enhanced Cordless Telecommunications)
	Frequency	1920-1930MHz (USA)
	European frequency	1880-1900MHz (EURO)
	Connector	2.5 mm, 3.5 mm Jack
	Channel bandwidth	1.728 GHz
	Modulation type	GFSK
	Transmission rate	1.152 Mbps (transmission rate)
	Duplexing	Time Division Duplexing (TDD)
	Voice encoding	ADPCM / 32 bit/s
	RF access	Time Division Multiple Access (TDMA)
	Range	400 m in open space
	Headset power supply	Rechargeable lithium (3.7V, 800mAh, 3.0Wh)
	Charger power supply	Power adapter: Input: 110-240Vac Output: 5.0V - 1A (1000mA)
	Charge time	3 hours
	Battery life	6 hours
	Storage temperature	-10 to 60 °C (14 to 140 °F)
	Weight	113.40 g (4 oz)

Max4G dual-ear headset

The Max4G headset is a remarkable accessory for your system. Available in single-ear or double-ear models, these medium-weight headsets feature a fully adjustable headband and luxurious foam padding for a firm and comfortable fit. The microphone boom rotates 270 degrees and, when placed in the vertical position, automatically cuts the microphone gain.

The "AutoMUTE" boom is an entirely new technology developed by Eartec engineers and is included with all Max4G headsets. These special microphone booms incorporate an internal micro-switch that automatically cuts the headset microphone gain when placed in the vertical position. Using AutoMute is a simpler and more effective way to mute your microphone than searching for and pressing the mute button on your belt pack.

Field-replaceable lithium battery

Each UltraLITE wireless headset comes with a rechargeable lithium battery installed in a special compartment in the headset housing. The batteries are lightweight and barely larger than a matchbox. They recharge in approximately 3 hours and power the headset for 6 hours. Since they are removable and recharge externally in the multi-port charger, they can be swapped in a matter of seconds.

Multi-port charger

All complete UltraLITE wireless systems include a multi-port charger (2 or 8 ports) that charges headset batteries in individual compartments. When each battery reaches full charge, the corresponding LED changes from red to green, indicating that the battery is ready for use. This feature allows users to have spare batteries on hand in the charger if needed.

Soft case

The Eartec soft case is included to keep your wireless system safe. Made from waterproof nylon, this headset bag/case includes internal compartments to organise the headsets. There is also a Velcro-closure pocket for the charger and spare batteries. The moulded hard plastic handle makes it easy to carry for "field" work.

	Specification
	HUB master base
	Standard	DECT 6.0 (Digital Enhanced Cordless Telecommunications)
	Frequency	1920-1930MHz (USA)
	European frequency	1880-1900MHz (EURO)
	Connector	2.5 mm, 3.5 mm Jack
	Channel bandwidth	1.728 GHz
	Modulation type	GFSK
	Transmission rate	1.152 Mbps (transmission rate)
	Duplexing	Time Division Duplexing (TDD)
	Voice encoding	ADPCM / 32 bit/s
	RF access	Time Division Multiple Access (TDMA)
	Range	400 m in open space
	Headset power supply	Rechargeable lithium (3.7V, 800mAh, 3.0Wh)
	Charger power supply	Power adapter: Input: 110-240Vac Output: 5.0V - 1A (1000mA)
	Charge time	3 hours
	Battery life	4 hours
	Storage temperature	-10 to 60 °C (14 to 140 °F)
	Dimensions (LxWxH)	13.97 x 3.81 x 9.53 cm (5.5 x 1.5 x 3.75")
	Weight	113.40 g (4 oz)
