Eartec HUB9DMXS - UltraLITE and HUB 9 person system

Name: Eartec HUB9DMXS - UltraLITE and HUB 9 person system
Brand: Eartec
SKU: 1009973
Price: 2107.2 CHF
Availability: BackOrder

SKU 1009973

Eartec HUB9DMXS - UltraLITE and HUB 9 person system

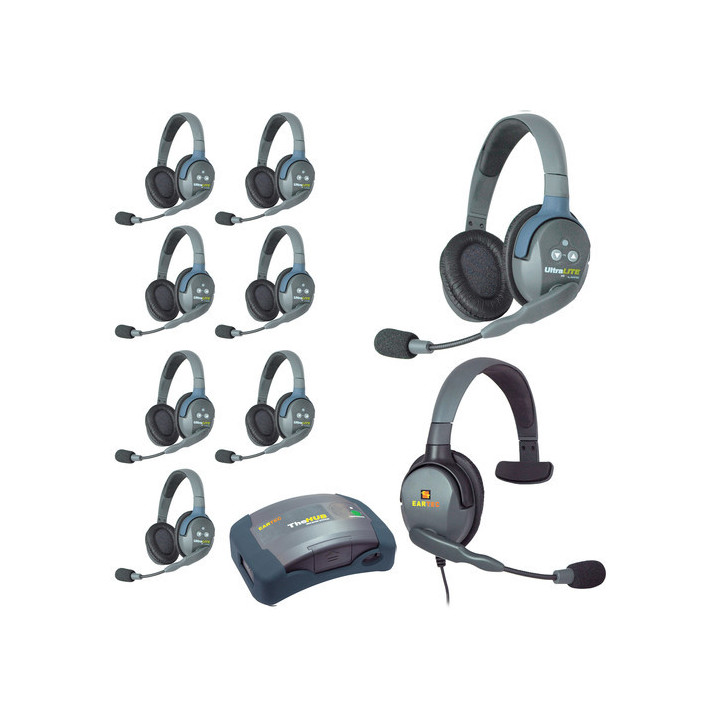

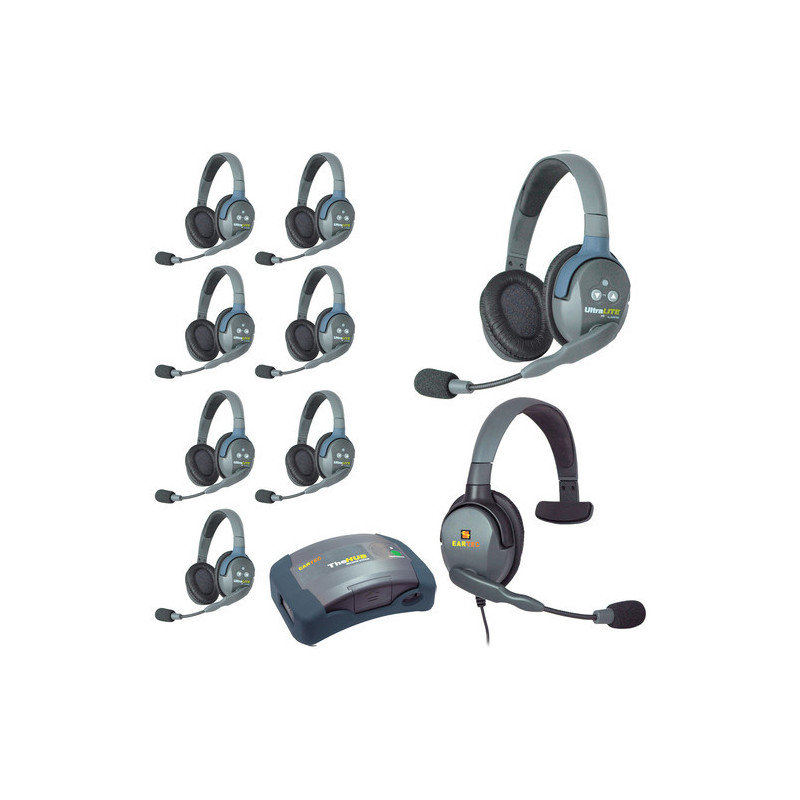

UltraLITE & HUB 9 person system w/ 8 Double 1 Max 4G Single, batteries, charger & case

... learn more

Visuals Price

2,107.20 CHF VAT excl.

2,277.88 CHF Inc. VAT

Manufacturer price 2 634,00 CHF VAT excluded

Made to order

Delivery
- Shipped in 2 to 3 weeks
In-store pickup
- Available in 2 to 3 weeks

Description

Description

Eartec HUB9DMXS - UltraLITE & HUB System for 9 People
The Eartec HUB9DMXS is a professional full-duplex intercom for 9 people who need to communicate and work with their hands. This compact system includes the belt-worn mini HUB base with one pluggable Max4G single headset. Also included are 8 remote UltraLITE double-ear wireless headsets. UltraLITE uses Digital Enhanced Cordless Telecommunications (DECT) technology to provide professional wireless communication, with simultaneous conversation, within a quarter-mile radius.

The UltraLITE series represents a major breakthrough, as all the electronics, including the battery, are integrated directly into the headset shells, eliminating cables and belt-worn radios. The system requires no base station and the headsets are field-programmable, meaning the system can be expanded at any time. No FCC licence required.

UltraLITE Headset

UltraLITE headsets outperform all other full-duplex wireless systems in terms of performance and convenience, as the transceiver is integrated directly into the shell. This "all-in-one" self-contained design eliminates headset cables and even belt-worn radios. They provide simultaneous two-way voice communication for users who need to work with their hands while keeping one ear free to listen to what is happening around them. The microphone boom pivots 270 degrees, allowing the headset to be worn on the left or right. The microphone cuts out in the up position.

	Specifications
	UltraLITE Headset
	Standard	DECT 6.0 (Digital Enhanced Cordless Telecommunications)
	Frequency	1920-1930 MHz (USA)
	European frequency	1880-1900 MHz (EURO)
	Connector	2.5 mm, 3.5 mm Jack
	Channel bandwidth	1.728 GHz
	Modulation type	GFSK
	Transmission speed	1.152 Mbps (baud rate)
	Duplexing	Time Division Duplex (TDD)
	Voice encoding	ADPCM / 32 kbps
	RF access	Time Division Multiple Access (TDMA)
	Range	400 m in open space
	Headset power supply	Rechargeable lithium (3.7 V, 800 mAh, 3.0 Wh)
	Charger power supply	AC adapter: Input: 110-240 VAC Output: 5.0 V - 1 A (1000 mA)
	Charging time	3 hours
	Operating time	6 hours
	Storage temperature	-10 to 60 °C (14 to 140 °F)
	Weight	113.40 g (4 oz)

Single Max4G headset

The Max4G headset is a remarkable accessory for your system. Available in single or double ear models, these medium-weight headsets feature a fully adjustable headband and luxury foam padding for a firm and comfortable fit. The microphone boom pivots 270 degrees and, when placed in the up position, automatically cuts the microphone gain.

"Boom AutoMUTE" is a brand new technology developed by Eartec's engineers and is included with all Max4G headsets. These special microphone assemblies feature an internal microswitch that automatically cuts the headset microphone gain when placed in the up position. Using AutoMute is a simpler and more effective way to mute the microphone than searching for and pressing the mute button on your belt pack.

Field-replaceable lithium battery

Each UltraLITE wireless headset comes with a rechargeable lithium battery installed in a special compartment of the headset. The batteries are lightweight and barely larger than a matchbox. They recharge in approximately 3 hours and allow the headset to be used for 6 hours. As they are removable and recharge externally in the multi-port charger, they can be swapped in a matter of seconds.

Multi-port charger

All complete UltraLITE wireless systems include a multi-port charger (2 or 8 ports) that charges headset batteries in individual compartments. When each battery reaches full charge, the corresponding LED indicator changes from red to green, indicating that the battery is ready for use. This feature allows users to have spare batteries on hand in the charger when needed.

Soft carry case

Eartec's soft carry case is included to protect your wireless system. Made from waterproof nylon, this headset bag/case includes internal compartments to keep headsets organised. There is also a velcro-fastened pocket for the charger and spare batteries. The rigid moulded plastic handle makes it easy to carry and is handy for "field" work.

	Specifications
	HUB master base
	Standard	DECT 6.0 (Digital Enhanced Cordless Telecommunications)
	Frequency	1920-1930 MHz (USA)
	European frequency	1880-1900 MHz (EURO)
	Connector	2.5 mm, 3.5 mm Jack
	Channel bandwidth	1.728 GHz
	Modulation type	GFSK
	Transmission speed	1.152 Mbps (baud rate)
	Duplexing	Time Division Duplex (TDD)
	Voice encoding	ADPCM / 32 kbps
	RF access	Time Division Multiple Access (TDMA)
	Range	400 m in open space
	Headset power supply	Rechargeable lithium (3.7 V, 800 mAh, 3.0 Wh)
	Charger power supply	AC adapter: Input: 110-240 VAC Output: 5.0 V - 1 A (1000 mA)
	Charging time	3 hours
	Operating time	4 hours
	Storage temperature	-10 to 60 °C (14 to 140 °F)
	Dimensions (L×W×H)	13.97 x 3.81 x 9.53 cm (5.5 x 1.5 x 3.75")
	Weight	113.40 g (4 oz)
