Eartec HUB9SMXD - UltraLITE & HUB 9 person system
1009976
UltraLITE & HUB 9 person system w/ 8 Single 1 Max 4G Double, batteries, charger & case
Visuals Price
1,968.00 CHF
VAT excl.
2,127.41 CHF Inc. VAT
Manufacturer price 2 460,00 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks

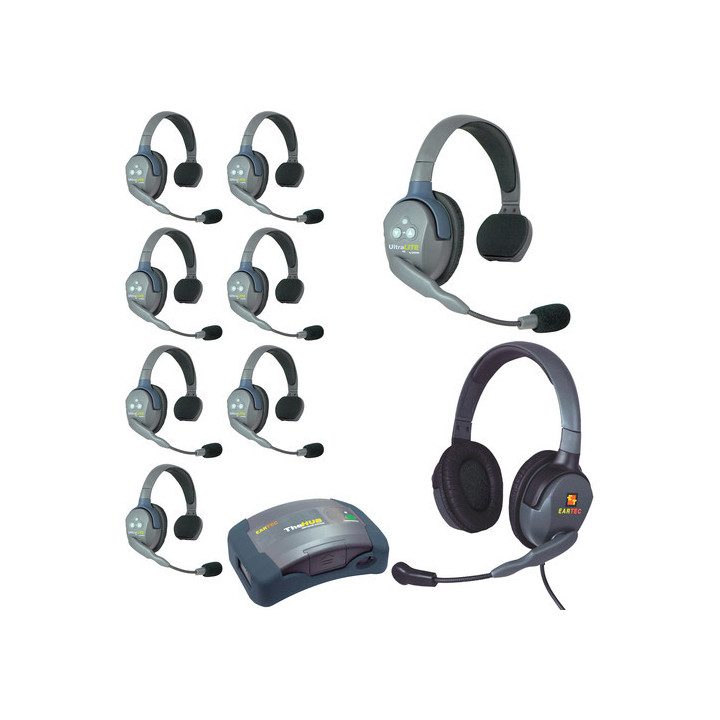

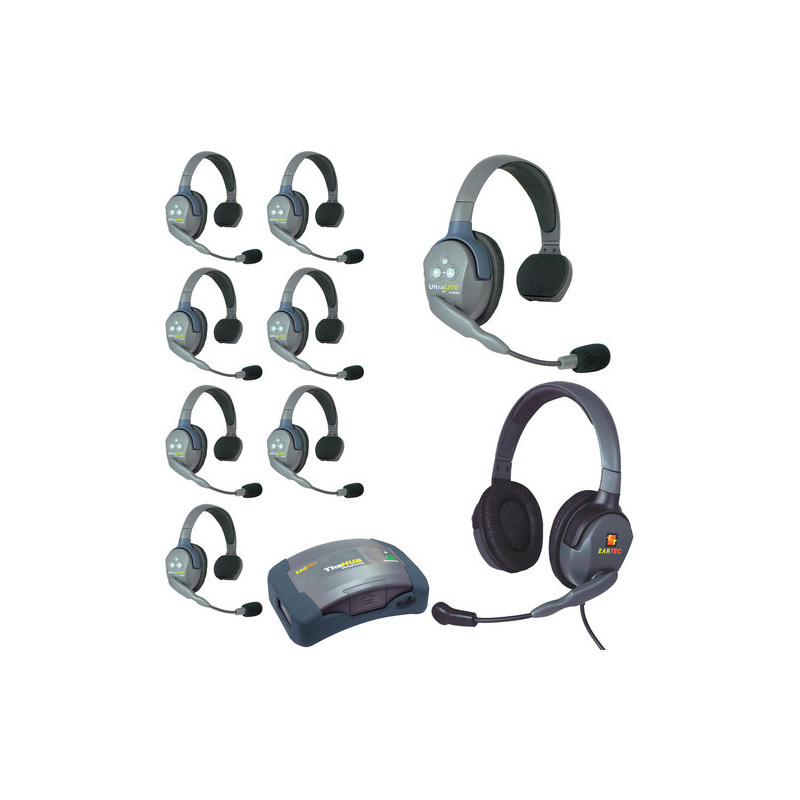

Eartec HUB9SMXD - UltraLITE and HUB System for 9 people
The Eartec HUB9SMXD is a full-duplex professional intercom for 9 people who need to communicate while keeping their hands free. This compact system includes the HUB Mini base that can be worn on the belt with a plug-in Max4G double headset. Also included are 8 UltraLITE single-ear wireless headsets. The UltraLITE uses DECT (Digital Enhanced Cordless Telecommunications) technology to provide simultaneous professional wireless communication within a range of approximately 400 metres.
The UltraLITE series represents a major advancement as all the electronics, including the battery, are integrated directly into the headset earcups, eliminating cables and belt-worn radios. The system requires no base station and the headsets are programmable in the field, meaning the system can be expanded at any time. No FCC licence is required.
UltraLITE headset
UltraLITE headsets outperform all other full-duplex wireless systems in terms of performance and convenience as the transceiver is integrated directly into the earcup. This self-contained "all-in-one" design eliminates headset cables and even belt-worn radios. They enable simultaneous two-way voice communication for users who need to work with their hands while keeping one ear free to listen to what is happening around them. The microphone boom rotates 270 degrees so the headset can be worn on the left or right. The microphone mutes when in the upright position.
|
|
Technical specifications |
|
|
UltraLITE headset |
|
|
|
Standard |
DECT 6.0 (Digital Enhanced Cordless Telecommunications) |
|
|
Frequency |
1920-1930 MHz (USA) |
|
|
European frequency |
1880-1900 MHz (EURO) |
|
|
Connector |
2.5 mm, 3.5 mm jack |
|
|
Channel bandwidth |
1.728 GHz |
|
|
Modulation type |
GFSK |
|
|
Transmission rate |
1.152 Mbps (bit rate) |
|
|
Duplex |
Time Division Duplex (TDD) |
|
|
Voice encoding |
ADPCM / 32 kbps |
|
|
RF access |
Time Division Multiple Access (TDMA) |
|
|
Range |
400 m in open space |
|
|
Headset power supply |
Rechargeable lithium (3.7 V, 800 mAh, 3.0 Wh) |
|
|
Charger power supply |
Mains adapter: Input: 110-240 Vac |
|
|
Charging time |
3 hours |
|
|
Operating time |
6 hours |
|
|
Storage temperature |
-10 to 60°C (14 to 140°F) |
|
|
Weight |
113.40 g (4 oz) |
Max4G double headset
The Max4G headset is a remarkable accessory for your system. Available in single or double ear models, these medium-weight headsets feature a fully adjustable headband and luxury foam padding for a firm and comfortable fit. The microphone boom rotates 270 degrees and, when placed in the upright position, automatically cuts the microphone gain.
The "AutoMUTE boom" is a brand new technology developed by Eartec engineers and is included with all Max4G headsets. These special microphone assemblies incorporate an internal micro-switch that automatically cuts the headset microphone gain when placed in the upright position. Using AutoMute is a simpler and more effective way to mute your microphone than searching for and pressing the mute button on your belt pack.
Field-replaceable lithium battery
Each UltraLITE wireless headset comes with a rechargeable lithium battery installed in a special compartment in the headset. The batteries are lightweight and barely larger than a matchbox. They recharge in approximately 3 hours and allow the headset to operate for 6 hours. As they are removable and recharge externally in the multi-port charger, they can be swapped in seconds.
Multi-port charger
All complete UltraLITE wireless systems include a multi-port charger (2 or 8 ports) that charges the headset batteries in individual compartments. When each battery reaches full charge, the corresponding LED switches from red to green, indicating that the battery is ready for use. This feature allows users to have spare batteries available in the charger when needed.
Soft case
The Eartec soft case is included to safely store your wireless system. Made from waterproof nylon, this headset bag/case includes internal compartments to keep headsets well organised. There is also a hook-and-loop fastener pocket for the charger and spare batteries. The rigid moulded plastic handle makes it easy to carry for "on-site" work.
|
|
Technical specifications |
|
|
HUB master base |
|
|
|
Standard |
DECT 6.0 (Digital Enhanced Cordless Telecommunications) |
|
|
Frequency |
1920-1930 MHz (USA) |
|
|
European frequency |
1880-1900 MHz (EURO) |
|
|
Connector |
2.5 mm, 3.5 mm jack |
|
|
Channel bandwidth |
1.728 GHz |
|
|
Modulation type |
GFSK |
|
|
Transmission rate |
1.152 Mbps (bit rate) |
|
|
Duplex |
Time Division Duplex (TDD) |
|
|
Voice encoding |
ADPCM / 32 kbps |
|
|
RF access |
Time Division Multiple Access (TDMA) |
|
|
Range |
400 m in open space |
|
|
Headset power supply |
Rechargeable lithium (3.7 V, 800 mAh, 3.0 Wh) |
|
|
Charger power supply |
Mains adapter: Input: 110-240 Vac |
|
|
Charging time |
3 hours |
|
|
Operating time |
4 hours |
|
|
Storage temperature |
-10 to 60°C (14 to 140°F) |
|
|
Dimensions (L x W x H) |
13.97 x 3.81 x 9.53 cm (5.5 x 1.5 x 3.75") |
|
|
Weight |
113.40 g (4 oz) |
