Tilta Nucleus-M Wireless Lens Control System Partial Kit II (Right Handgrip)
... learn more
Visuals Price
572.62 CHF VAT excl.

619.00 CHF Inc. VAT

Made to order

Tilta Nucleus M Wireless Lens Control System Partial Kit II (right handle)

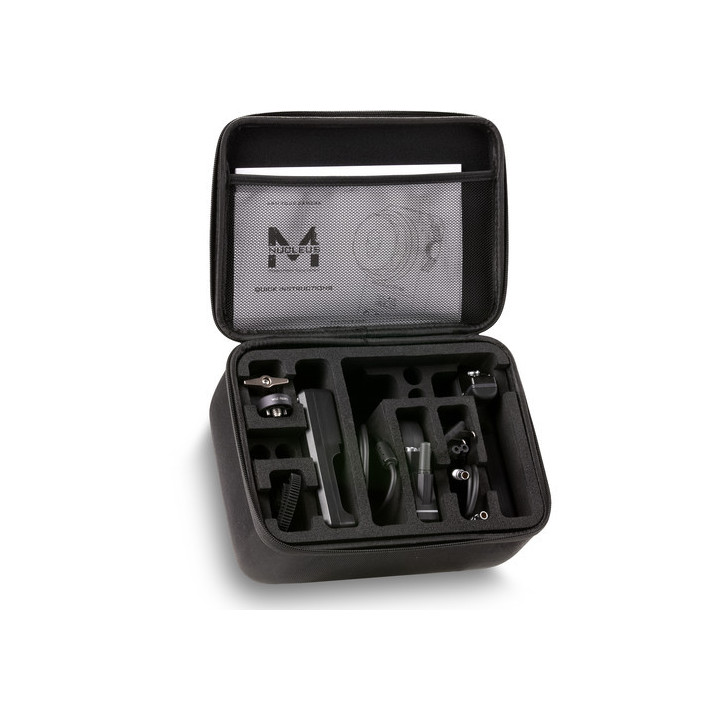

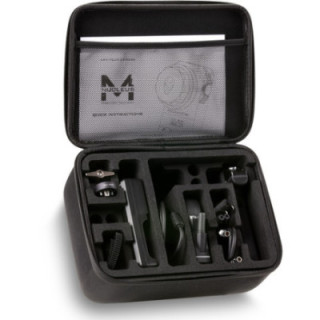

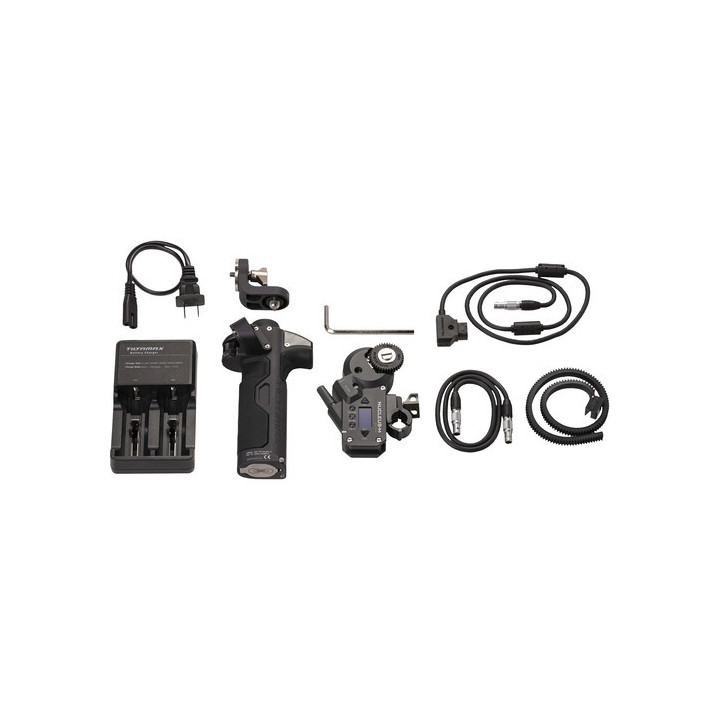

The Tilta Nucleus-M Wireless Lens Control System Partial Kit II contains the essentials for wireless focus control during handheld shooting. The kit includes the Nucleus-M right hand controller, a Nucleus-M motor, a removable lens belt, two motor power cables, a battery charger and two 18650 batteries. The hand controller offers wireless fingertip lens control whilst serving as a grip support for your camera rig, and the system allows focus, iris or zoom control on your lens. If you're using a lens that doesn't have standard cinema-style gears, use the included lens belt to add gears to your lens.

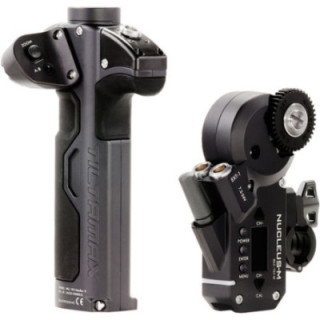

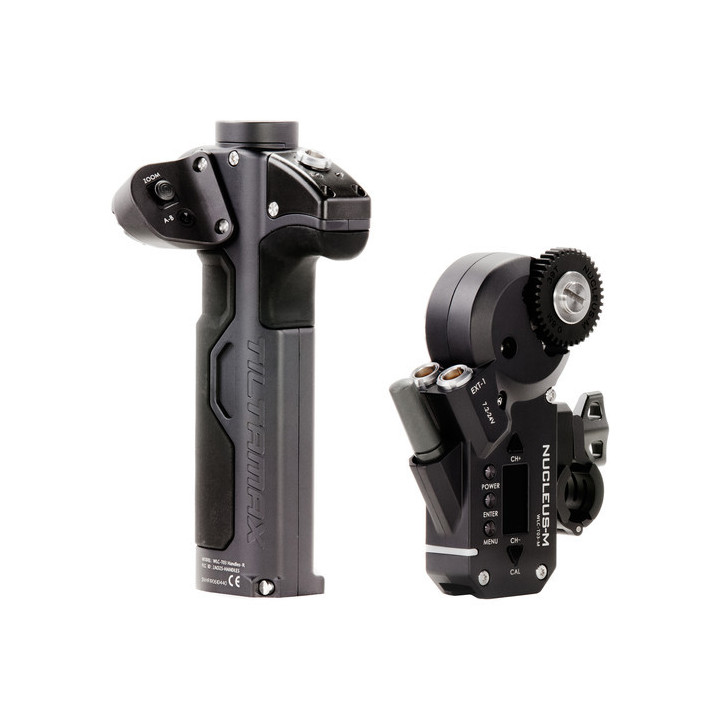

Tilta Nucleus-M handle (right)
The Tilta right wireless handle offers fingertip lens control whilst serving as a grip support for your camera rig. This separately available component of the Nucleus-M FIZ (focus/iris/zoom) system allows you to distribute control between the handle and the hand unit according to your preferences.
With a wireless control range of up to 300 metres, the wireless handle can be used for drone or vehicle-mounted shots in addition to handheld configurations. Mount the handle using its ARRI-type rosette or use an optional adapter to attach it to your gimbal. Use this handle with a separately available left handle for complete control of focus, iris and zoom on cinema-style lenses.
Handle features include three dial rotation settings, optional bar or ring gimbal adapters, LED indicators and an LCD display.
Features
- Customisable focus, iris and zoom control
- Start/stop control for certain cameras
- ARRI-type rosette mounting and optional gimbal adapter mounts
- 300 metre wireless control range
- Dial rotation settings at 85, 180 and 310°
- LCD display and LED indicators
Nucleus-M FIZ lens control motor
The compact Tilta Nucleus-M FIZ lens control motor integrates a motor controller, eliminating the bulk of a separate control box and enabling faster setup. Power the motor using a separately available D-Tap cable and power source, or connect it in series to another motor using a 7-pin cable.
Features
- Brushless motor with integrated motor controller
- Standard cinema gear 0.8 Mod, 35 teeth, 32 pitch
- Power via separately available D-Tap cable or series connection to additional motors
- Automatic and manual calibration
- For focus, iris or zoom control
- High, medium and low torque settings
- Status display window
Tilta focus tracking adapter for DSLR lens
Use this Tilta DSLR lens focus tracking adapter to attach it around your DSLR lens and control focus with any Tilta focus tracking system such as the Nucleus-Nano or Nucleus-M. The adjustable clamp-type adapter ring is made of silicone and plastic and attaches around most DSLR lenses. The teeth mesh with the focus motor gear for smooth adjustments.
Tilta Nucleus-M motor power cable D-Tap to 7-pin
This 58.4cm Nucleus-M D-Tap to 7-pin motor power cable from Tilta is designed to power your Nucleus-M lens control motor from a D-Tap power source.
After powering one motor with this cable, additional motors can be connected in series to each other.
Standard ARRI rosette adapters Tilta for Nucleus-M handle
This set of two Tilta standard ARRI rosette adapters is used to mount your Nucleus-M lens control handles onto standard ARRI rosettes.
Tilta Nucleus-M battery charger
The Tilta Nucleus-M battery charger can charge one to four batteries used in the housing and handles of the Nucleus-M wireless lens control system. This versatile charger can be powered by AC, 5V USB or 12V vehicle power.




Specifications



Nucleus-M handle (right)

Current

0.1 A

Voltage

Battery: 7.2 V
External: 7.2-14.8 V

Port

Power/Communication: 4-pin

Rotation

85, 180, 310°

Battery type

18650

Operating frequency

2.4 GHz

Transmission power

10-100 MW

Maximum transmission distance

10-100 m / 33-328'

Operating temperature range

-20 to 50°C / -4 to 122°F

Construction material

Aluminium alloy, stainless steel
ABS plastic, rubber

Dimensions

With thumb unit: 17.6 x 8.5 x 6 cm / 6.9 x 3.3 x 2.3"
Without thumb unit: 17.6 x 8.5 x 3.1 cm / 6.9 x 3.3 x 1.2"

Weight

With thumb unit: 355 g / 12.5 oz
Without thumb unit: 340 g / 12 oz

Nucleus-M FIZ lens control motor

Gear module

0.8

Gear pitch

32

Number of gear teeth

35

Face width

10 mm / 0.4"

Operating frequency

2.4 GHz

Maximum range

500 m / 1640' (unobstructed)

Transmission power

30-100 MW

Current

At rest: 0.10 A, 14.8 V
Conventional: 0.5 A, 14.8 V

Voltage

7.2-24 V

Rod compatibility

19, 15 mm

Noise

15 dB

Operating temperature range

-20 to 50°C / -4 to 122°F

Construction material

Aluminium alloy, stainless steel, ABS plastic

Dimensions

11.43 x 8.26 x 3.49 cm / 4.50 x 3.25 x 1.38"

Weight

190 g / 6.7 oz (motor only)
225 g / 7.9 oz (with 15mm rod adapter)
221 g / 7.8 oz (with 19mm rod adapter)

Focus tracking adapter for DSLR lens

Construction material

Silicone and plastic

Compatibility

Tilta Nucleus-M, Nucleus-Nano
Most DSLR lenses

Nucleus-M motor power cable D-Tap to 7-pin

Connectors

D-Tap, 7-pin LEMO

Length

58.4 cm / 23"

Weight

32 g / 1.1 oz

Standard ARRI rosette adapters for Nucleus-M handle

Construction material

Aluminium alloy, stainless steel

Dimensions (L x W x D)

5.7 x 5.1 x 3.8 cm / 2.3 x 2 x 1.5"

Weight

72 g / 2.5 oz

Nucleus-M battery charger

Power input

100-240 V AC, 50/60 Hz, 0.15 A
5 V DC, 2 A

Output power

4.2 V DC, 650 mAh

Construction material

Plastic
