The UWP-D21 bodypack wireless microphone package includes the UTX-B40 bodypack transmitter, URX-P40 receiver, ECM-V1BMP omni-directional lavalier microphone and accessories.
... learn more
Visuals Price
558.13 CHF VAT excl.

603.33 CHF Inc. VAT

Manufacturer price 587,50 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Sony UWP-D bodypack wireless microphone kit
The demand for high-quality audio increases as high-resolution content becomes predominant in the video production industry. Today's content creators face the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true dual diversity reception and user-friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.

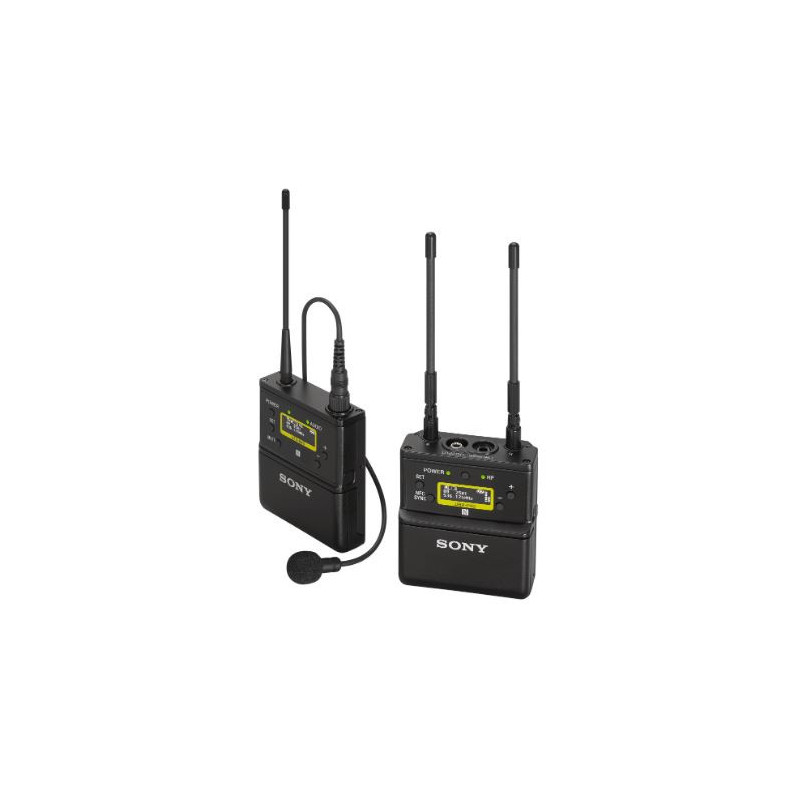

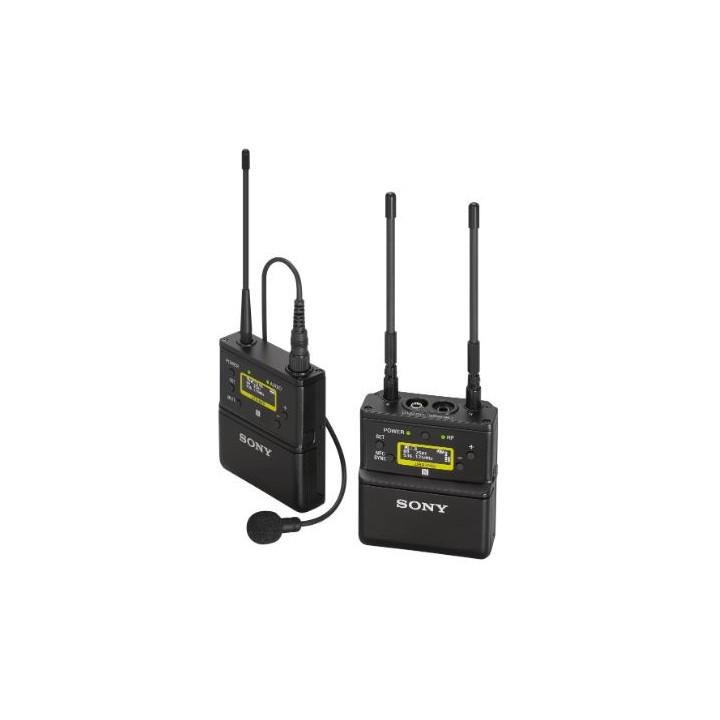

The UWP-D21 bodypack wireless microphone kit includes the UTX-B40 bodypack transmitter, URX-P40 receiver, ECM-V1BMP omnidirectional lavalier microphone and accessories.
- High-quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setup (IR synchronisation capability with UTX-B40 transmitter from URX-P03, URX-P03D and URX-S03D receivers)
- True dual diversity tuner for stable signal reception
- Volume control in automatic gain mode
- +15 dB volume boost mode for off-mic audio
- Line input
- Channel memory for quick switching between receiver frequencies for operation with two transmitters
- Transmitter frequency sent to receiver for pairing multiple receivers to one transmitter
- Headphone output for monitoring
- Monitor mode for using a receiver as in-ear monitor
- Variable mute function
- Compatibility with Sony WL-800/UWP/UWP-D series
- Receiver output level control
- High-visibility OLED display, ideal for indoor/outdoor use
- USB connector for power supply
- Digital audio interface support with SMAD-P5 multi-interface (MI) shoe adapter (optional)
Features
Digital audio processing for high-quality sound
Sony's advanced digital audio processing technology ensures high-quality sound with improved transient response performance. A new digital audio interface [optional] enables direct digital audio recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the MI SMAD-P5 multi-interface shoe adapter, bypassing A/D and D/A conversion stages to further guarantee excellent sound quality.
Seamless integration with camcorder
Integration with compatible Sony camcorders (requires SMAD-P5 multi-interface shoe adapter) displays audio information such as RF level, audio mute status and transmitter low battery alert in the camera viewfinder. Via the SMAD-P5, audio signals are transmitted from receiver to camera without requiring cable connection. The wireless receiver can also receive power from the camera, with power on/off synchronisation between camera and receiver for more efficient power management.
Quick and easy frequency setting
Sony's unique and user-friendly NFC SYNC function enables quick and intuitive secure channel setup between transmitter and receiver.
Lightweight and compact design
The reduced size and weight of the system enable superior mobility in a wide range of applications, including news, documentaries, weddings and remote production. The compact size and low weight of the receiver make it an ideal partner for use with small camcorders and digital interchangeable lens cameras.




Specifications

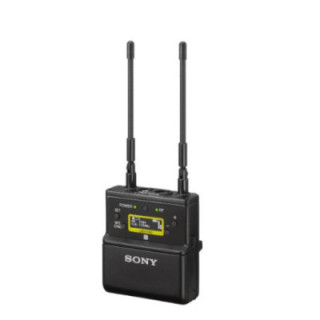

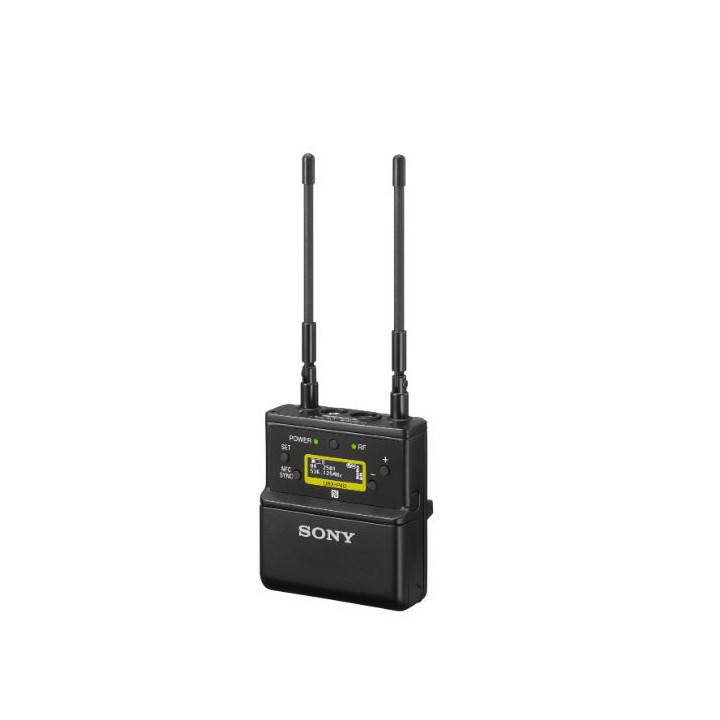

URX-P40 portable receiver

Oscillator type

Quartz PLL synthesiser

Reception type

True diversity method

Antenna type

1/4 λ wavelength wire antenna (adjustable angle)

Carrier frequencies

638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

Frequency response

23 Hz to 18 kHz (typical)

Signal-to-noise ratio

60 dB (1 kHz sine wave, 5 kHz modulation)

Distortion (T.H.D)

0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio delay

Approximately 0.35 ms (analogue output)
Approximately 0.24 ms (digital output)

Audio output connector

3.5 mm diameter 3-pole locking mini-jack, external connection

Audio output level

–60 dBV (3.5 mm diameter 3-pole locking mini-jack, analogue output, 0 dB audio output level)
–20 dBFS (external connection, digital output, 0 dB audio output level)
–50 dBFS (external connection, analogue output, 0 dB audio output level)

Analogue audio output adjustment range

-12dB - +12dB (in 3dB steps)

Headphone output connector

3.5 mm diameter mini-jack

Headphone output level

Max. 10mW (16 ohms)

Tone signal frequency

In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display

OLED

Power supply

DC 3.0 V (two LR6/AA alkaline batteries)
DC 5.0 V (supplied via USB Type-C connector)

Battery life*

Approximately six hours
*Battery life was measured with two Sony LR6/AA alkaline batteries at 25°C (77°F) with DISPLAY MODE set to AUTO OFF.

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage/transport temperature

–20°C to +55°C (–4°F to +131°F)

Dimensions

63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in) (W / H / D) (antenna not included)

Weight

Approximately 131 g (4.6 oz) (without batteries)

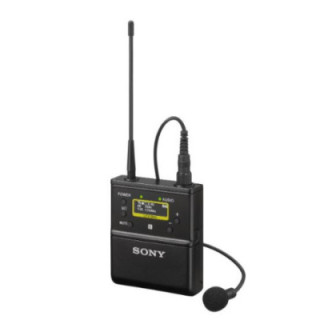

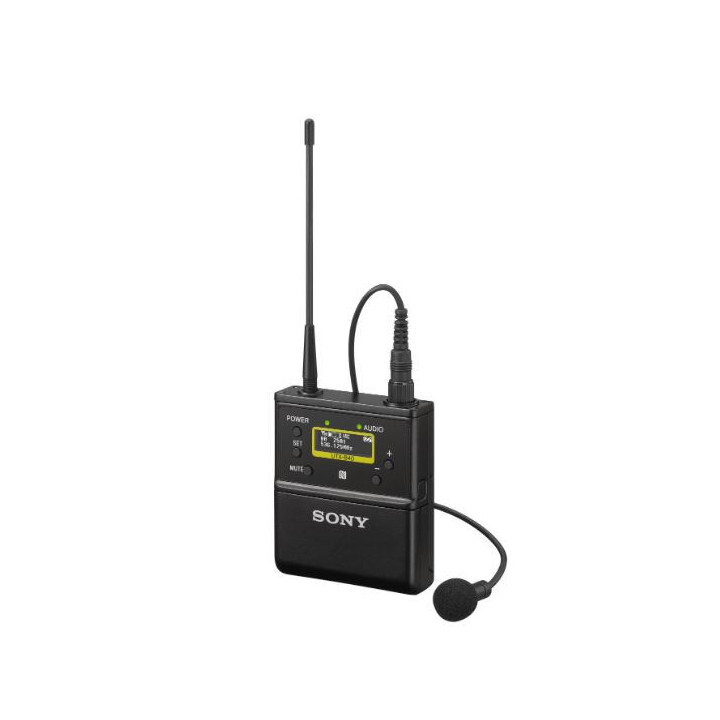

UTX-B40 bodypack transmitter

Oscillator type

Quartz PLL synthesiser

Antenna type

1/4 λ wavelength wire antenna

Carrier frequencies

638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

RF output power

30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule type

Electret condenser

Directivity

Omnidirectional

Input connector

3.5 mm diameter 3-pole locking mini-jack

Reference audio input level

–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation)
+4 dBu (LINE input)

Audio attenuator adjustment range

0 dB to 27 dB (in 3 dB steps)

Frequency response

23 Hz to 18 kHz (Typical)

Signal-to-noise ratio

60 dB (–60 dBV, 1 kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)C

Distortion

0.9% or less (–60 dBV, 1 kHz input)

Audio delay

Approximately 0.35 msC

Tone signal frequency

In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display

OLED

Power supply

DC 3.0 V (two LR6/AA alkaline batteries)
DC 5.0 V (supplied via USB Type-C connector)

Battery life*

depending on model approximately 8-10 hours (measured when using two AA alkaline batteries at 25°C and AUTO OFF display mode)

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage/transport temperature

-20°C to +55°C (–4°F to +131°F)

Dimensions

63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in) (W / H / D) (antenna not included)

Weight

Approximately 83 g (2.9 oz) (without batteries)
