The UWP-D22 bodypack wireless microphone package includes the UTX-M40 handheld microphone and URX-P40 receiver, plus accessories.
... learn more
Visuals Price
558.13 CHF VAT excl.

603.33 CHF Inc. VAT

Manufacturer price 587,50 CHF VAT excluded
Made to order
  • Delivery
    • Shipped in 1 to 2 weeks
  • In-store pickup
    • Available in 1 to 2 weeks

Sony UWP-D handheld wireless microphone pack
The demand for high-quality audio content is increasing as high-resolution content becomes widespread in the video production industry. Today's content creators face the challenge of capturing high-quality sound quickly, reliably, and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true dual-tuner diversity reception and user-friendly functionality, the UWP-D series is an ideal partner for ENG (Electronic News Gathering), EFP (Electronic Field Production), as well as documentaries and weddings.

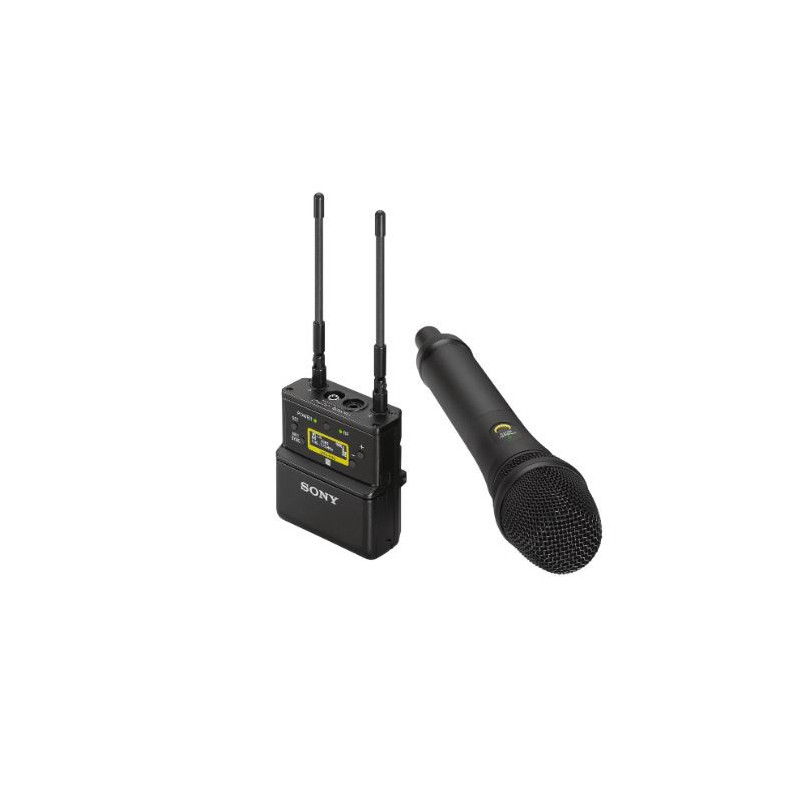

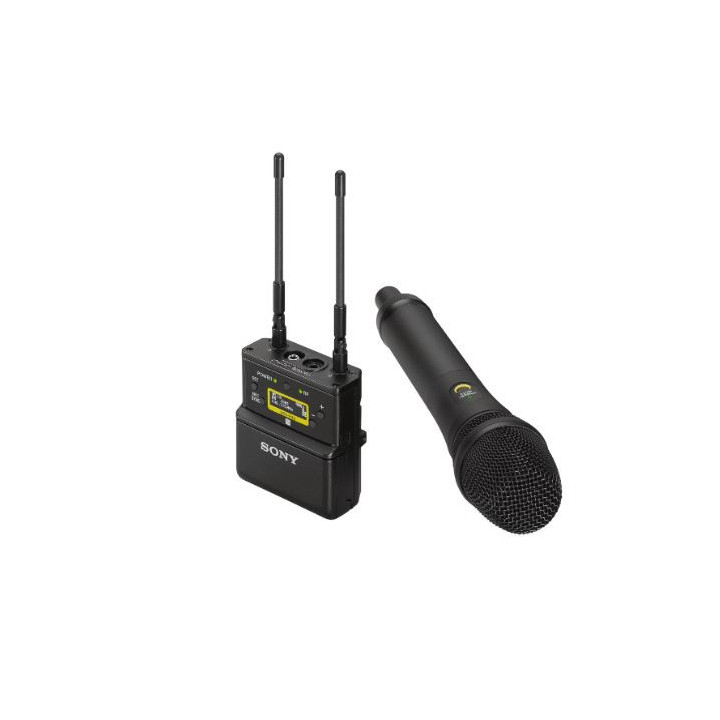

The UWP-D22 handheld wireless microphone pack includes the UTX-M40 handheld microphone and the URX-P40 receiver, along with the accessories.
– High-quality sound with Sony digital audio processing
– NFC SYNC function for quick and easy setup of a secure channel (IR sync capability with UTX-M40 transmitter from URX-P03, URX-P03D and URX-S03D receivers)
– True dual-tuner diversity for stable signal reception
– Interchangeable head for a wide choice of microphone capsules
– Volume control in automatic gain mode
– +15 dB volume boost mode for non-microphone audio
– Channel memory for quick switching between receiver frequencies for operation with two transmitters
– Transmitter frequency sent to receiver to match multiple receivers to one transmitter
– Headphone output for monitoring
– Monitor mode to use a receiver as an in-ear monitor
– Variable mute function
– Compatibility with Sony WL-800/UWP/UWP-D series
– Receiver output level control
– High-visibility OLED display, ideal for indoor/outdoor use
– USB connector for power supply (URX-P40 only)
– Digital audio interface support with SMAD-P5 Multi-Interface Shoe adapter (optional)
Specifications
Digital audio processing for high-quality sound
Sony's advanced digital audio processing technology ensures high-quality sound with improved transient response performance. A new digital audio interface |optional| enables direct digital audio recording with many Sony professional camcorders and Alpha interchangeable-lens cameras via the SMAD-P5 Multi-Interface Shoe adapter, bypassing the A/D and D/A conversion steps to ensure excellent sound quality.
Seamless integration with camcorder
Integration with compatible Sony camcorders (requires SMAD-P5 Multi-Interface Shoe adapter) displays audio information such as RF level, audio mute status and low battery alert from the transmitter in the camera's viewfinder. Via the SMAD-P5, audio signals are transmitted from the receiver to the camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with start/stop synchronisation between the camera and receiver for more efficient power management.
Quick and easy frequency setting
Sony's unique and user-friendly NFC SYNC function enables quick and intuitive setup of a secure channel between the transmitter and receiver.
Lightweight and compact design
The compact dimensions and light weight of the system provide superior mobility across a wide range of applications, including news reporting, documentaries, weddings and remote production. The compact dimensions and light weight of the receiver make it an ideal partner for use with small camcorders and interchangeable-lens digital cameras.




Specifications

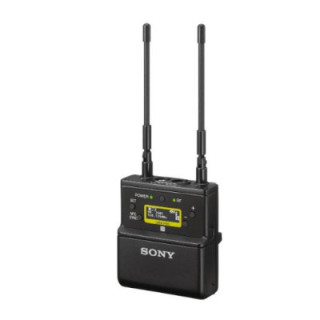

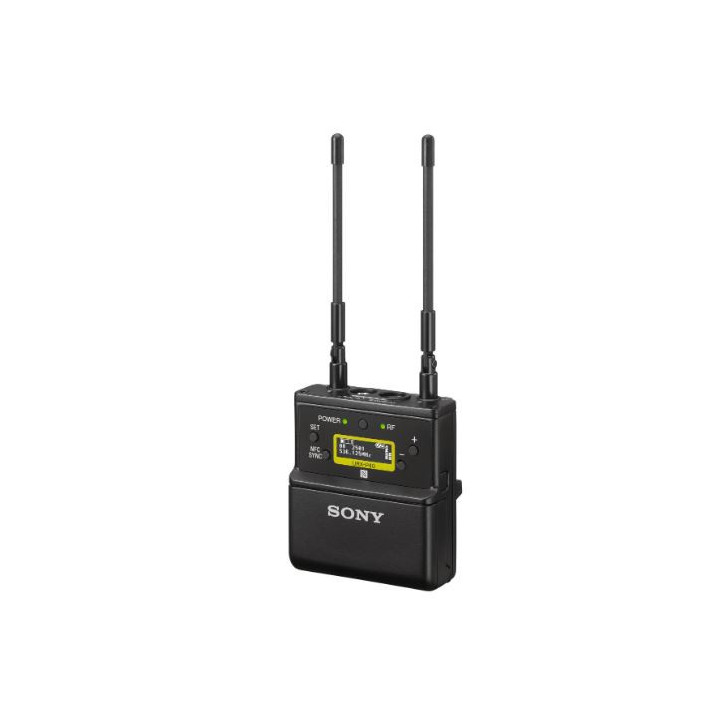

URX-P40 portable receiver

Oscillator type

Quartz PLL synthesiser

Reception type

True diversity method

Antenna type

1/4 λ quarter-wave wire antenna (adjustable angle)

Carrier frequencies

638.025 MHz to 694.000 MHz (UHF TV channels 42 to 48)

Frequency response

23 Hz to 18 kHz (typical)

Signal-to-noise ratio

60 dB (1 kHz sine wave, 5 kHz deviation)

Distortion (T.H.D)

0.9% or less (1 kHz sine wave, 5 kHz deviation)

Audio delay

Approx. 0.35 ms (analogue output) Approx. 0.24 ms (digital output)

Audio output connector

3.5 mm diameter 3-pole lockable mini jack, external connection

Audio output level

–60 dBV (3.5 mm diameter 3-pole lockable mini jack, analogue output, audio output level 0 dB) –20 dBFS (external connection, digital output, audio output level 0 dB) –50 dBFS (external connection, analogue output, audio output level 0 dB)

Analogue audio output adjustment range

–12 dB to +12 dB (in 3 dB steps)

Headphone output connector

3.5 mm diameter mini jack

Headphone output level

Max. 10 mW (16 ohms)

Pilot tone signal frequency

In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz

Display

OLED

Power supply

DC 3.0 V (two LR6/AA alkaline batteries) DC 5.0 V (supplied via USB Type-C connector)

Battery life*

Approx. six hours * Battery life measured using two Sony LR6/AA alkaline batteries at 25 °C (77 °F) with DISPLAY MODE set to AUTO OFF.

Operating temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage/transport temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions

63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in) (W / H / D) (antenna not included)

Weight

Approx. 131 g (4.6 oz) (batteries not included)

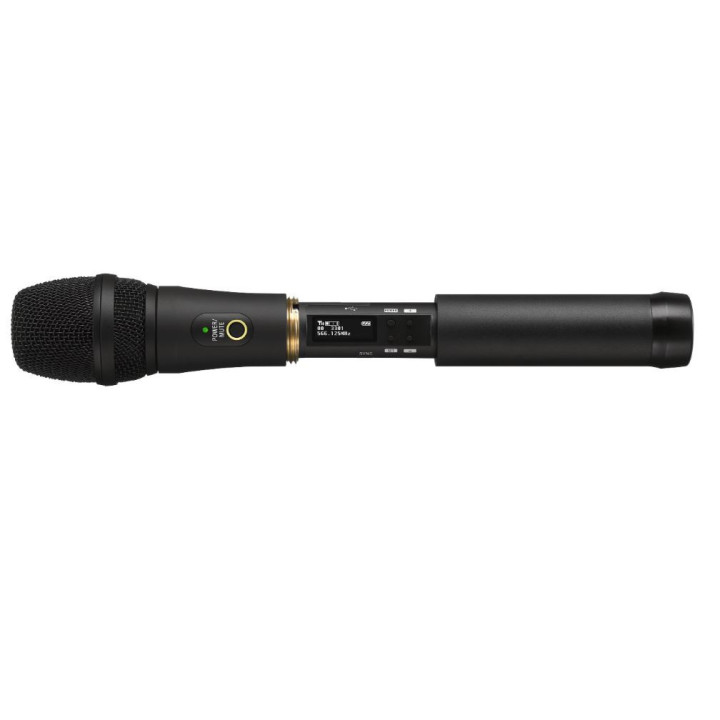

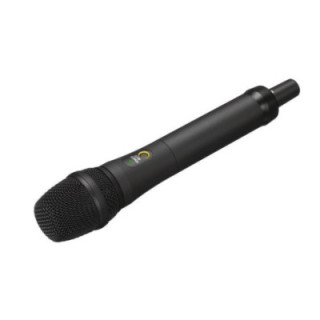

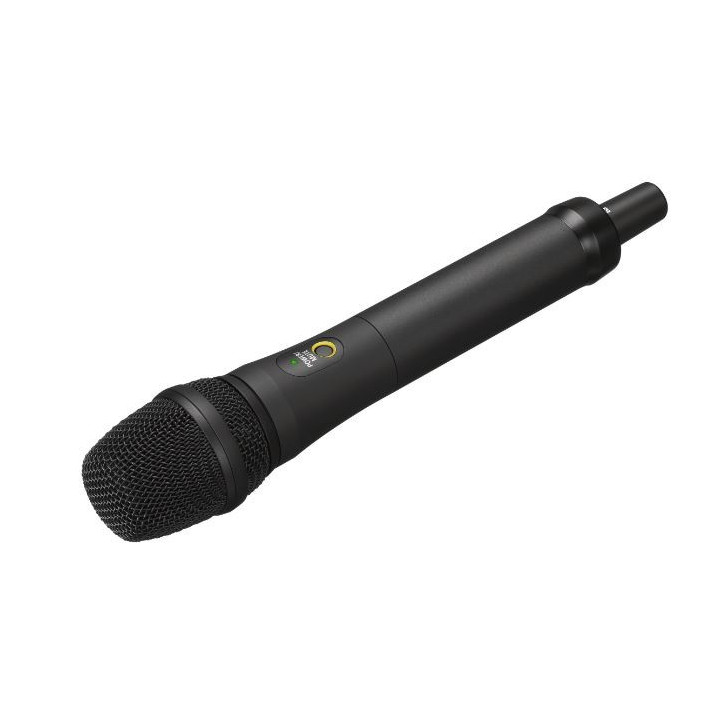

UTX-M40 handheld microphone with unidirectional capsule

Oscillator type

Quartz PLL synthesiser

Antenna type

1/4 λ quarter-wave wire antenna

Carrier frequencies

638.025 MHz to 694.000 MHz (UHF TV channels 42 to 48)

RF output power

30 mW/5 mW selectable

Capsule type

Dynamic range

Directivity

Unidirectional

Reference audio input level

–55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

Maximum audio input level

151 dB SPL (21 dB attenuation, with supplied microphone unit)

Audio attenuator adjustment range

0 dB to 21 dB (in 3 dB steps)

Frequency response

70 Hz to 18 kHz (typical)

Signal-to-noise ratio

60 dB (–60 dBV, 1 kHz sine wave input) 102 dB (GAIN MODE set to AUTO GAIN, maximum deviation, A-weighted) 96 dB (GAIN MODE set to NORMAL, maximum deviation, A-weighted)

Distortion

0.9% or less (–60 dBV, 1 kHz input)

Audio delay

Approx. 0.35 ms

Pilot tone signal frequency

In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz

Display

OLED

Power supply

DC 3.0 V (two LR6/AA alkaline batteries) DC 5.0 V (supplied via USB Type-C connector)

Battery life*

Depending on the model, approx. 8 to 10 hours (measured using two AA alkaline batteries at 25 °C with display mode set to AUTO OFF)

Operating temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage/transport temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions

ø48 x 258 mm (1 15/16 x 10 1/4 in) (diameter / length)

Weight

Approx. 255 g (9.0 oz) (batteries not included)



The UWP-D22 bodypack wireless microphone package includes the UTX-M40 handheld microphone and URX-P40 receiver, plus accessories.
