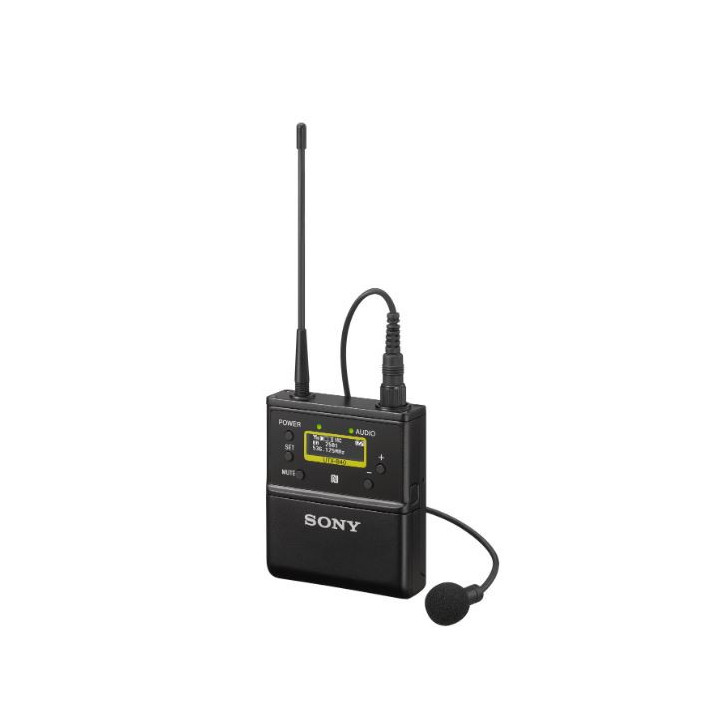

Sony UWP-D26/K42 - UWP-D bodypack wireless microphone package
1018232
4548736106581

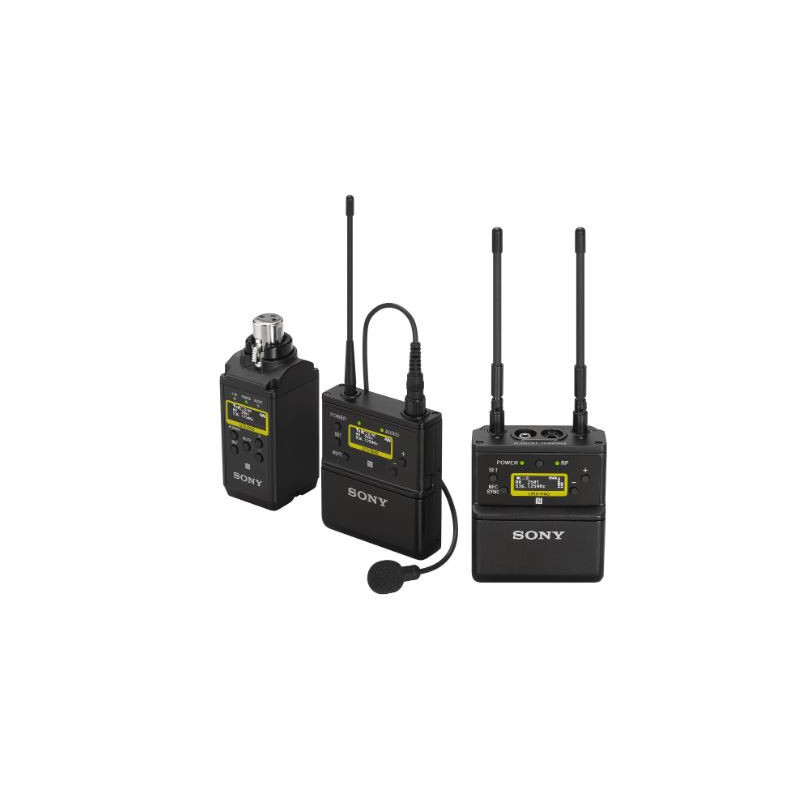

The UWP-D26 package includes the UTX-B40 bodypack transmitter, UTX-P40 XLR plug-on transmitter and URX-P40 receiver, plus accessories.
Visuals Price
739.66 CHF
VAT excl.
799.58 CHF Inc. VAT
Manufacturer price 778,59 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Try the product in our showroom?
Sony UWP-D wireless microphone pack with bodypack transmitter
The demand for high-quality audio is increasing as high-resolution content becomes widespread in the video production industry. Today's content creators face the challenge of capturing high-quality audio quickly, reliably and with limited resources. Offering exceptional sound quality with digital processing, reliable RF transmission, true dual diversity reception and user-friendly features, the UWP-D series is an ideal partner for ENG (Electronic News Gathering) and EFP (Electronic Field Production), as well as for documentaries and weddings. The UWP-D26 pack includes the UTX-B40 bodypack transmitter, the UTX-P40 XLR plug-on transmitter and the URX-P40 receiver, along with accessories.
– High-quality sound thanks to Sony digital audio processing
– NFC SYNC function for quick and easy secure channel setup (IR synchronisation capability with UTX-B40 and UTX-P40 transmitters from URX-P03, URX-P03D and URX-S03D receivers)
– True dual-tuner diversity for stable signal reception
– Volume control in automatic gain mode
– +15 dB boost mode for non-microphone audio
– Line input
+48 V phantom power (plug-on transmitter)
– Channel memory for quick switching between receiver frequencies for use with two transmitters
– Transmitter frequency sent to receiver to synchronise multiple receivers with one transmitter
– Headphone output for monitoring
– Monitor mode to use a receiver as a return
– Variable mute function
– Compatibility with Sony WL-800/UWP series
– Receiver output level control
– High-visibility OLED display, ideal for indoor/outdoor use
– USB connector for power supply (URX-P40 only)
– Support for digital audio interface with the SMAD-P5 Multi Interface (MI) shoe adapter (optional)*
– Includes ECM-V1BMP lavalier microphone
Specifications
Digital audio processing for high-quality sound
Sony's advanced digital audio processing technology ensures high-quality sound with improved transient response performance. A new digital audio interface [optional] enables direct digital audio recording with many Sony professional camcorders and Alpha interchangeable-lens cameras via the MI (Multi Interface) shoe adapter SMAD-P5, bypassing the A/D and D/A conversion steps to guarantee excellent sound quality.
Seamless camcorder integration
Integration with compatible Sony camcorders* (requires the SMAD-P5 Multi Interface shoe adapter) displays audio information such as RF level, mute status and low battery alert from the transmitter in the camera viewfinder. Via the SMAD-P5, audio signals are transferred from the receiver to the camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with on/off synchronisation between the camera and receiver for more efficient power management.
Quick and easy frequency setup
Sony's unique and user-friendly NFC SYNC function enables quick and intuitive setup of the secure channel between transmitter and receiver.
Lightweight and compact design
The reduced size and weight of the system enable superior mobility across a wide range of applications, including news gathering, documentaries, weddings and remote production. The compact size and light weight of the receiver make it an ideal partner for use with compact camcorders and interchangeable-lens digital cameras.
|
|
Technical specifications |
|
|

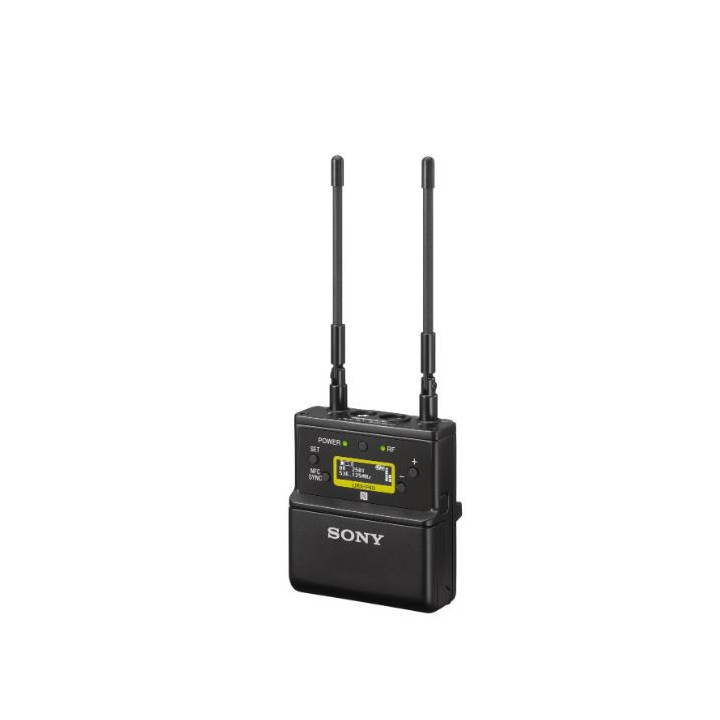

URX-P40 portable receiver |
||
|
Oscillator type |
Quartz PLL synthesiser |
|
|
Reception type |
True diversity method |
|
|
Antenna type |
|
|
|
Carrier frequencies |
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) |
|
|
Frequency response |
23 Hz to 18 kHz (typical) |
|
|
Signal-to-noise ratio |
60 dB (1 kHz sine wave, 5 kHz modulation) |
|
|
Distortion (T.H.D) |
0.9% or less (1 kHz sine wave, 5 kHz modulation) |
|
|
Audio delay |
Approx. 0.35 ms (analogue output) |
|
|
Audio output connector |
3.5 mm diameter 3-pole locking mini-jack, external connection |
|
|
Audio output level |
–60 dBV (3.5 mm diameter 3-pole locking mini-jack, analogue output, audio output level 0 dB) |
|
|
Analogue audio output adjustment range |
–12 dB to +12 dB (in 3 dB steps) |
|
|
Headphone output connector |
3.5 mm diameter mini-jack |
|
|
Headphone output level |
Max. 10 mW (16 ohms) |
|
|
Tone signal frequency
|
In UWP-D compander mode: 32.382 kHz |
|
|
Display |
OLED |
|
|
Power requirement |
DC 3.0 V (two LR6/AA alkaline batteries) |
|
|
Battery life* |
Approximately six hours |
|
|
Operating temperature |
0 °C to 50 °C (32 °F to 122 °F) |
|
|
Storage/transport temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
|
|
Dimensions |
63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in) (W / H / D) (antenna not included) |
|
|
Weight |
Approx. 131 g (4.6 oz) (without batteries) |
|
|
UTX-B40 bodypack transmitter |
||
|
Oscillator type |
Quartz PLL synthesiser |
|
|
Antenna type |
1/4 λ wire antenna |
|
|
Carrier frequencies |
638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) |
|
|
RF output power |
30 mW/5 mW selectable (UC, U, CE, LA, CN models) |
|
|
Capsule type |
Electret condenser |
|
|
Directivity |
Omnidirectional |
|
|
Input connector |
3.5 mm diameter 3-pole locking mini-jack |
|
|
Reference audio input level |
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) |
|
|
Audio attenuator adjustment range |
0 dB to 27 dB (in 3 dB steps) |
|
|
Frequency response |
23 Hz to 18 kHz (typical) |
|
|
Distortion |
0.9% or less (–60 dBV, 1 kHz input) |
|
|
Audio delay |
Approx. 0.35 ms |
|
|
Tone signal frequency
|
In UWP-D compander mode: 32.382 kHz |
|
|
Display |
OLED |
|
|
Power requirement |
DC 3.0 V (two LR6/AA alkaline batteries) |
|
|
Battery life* |
Depending on model, approx. 8 to 10 hours (measured with two AA alkaline batteries at 25 °C and AUTO OFF display mode) |
|
|
Operating temperature |
0 °C to 50 °C (32 °F to 122 °F) |
|
|
Storage/transport temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
|
|
Dimensions |
63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in) (W / H / D) (antenna not included) |
|
|
Weight |
Approx. 83 g (2.9 oz) (without batteries) |
|
|

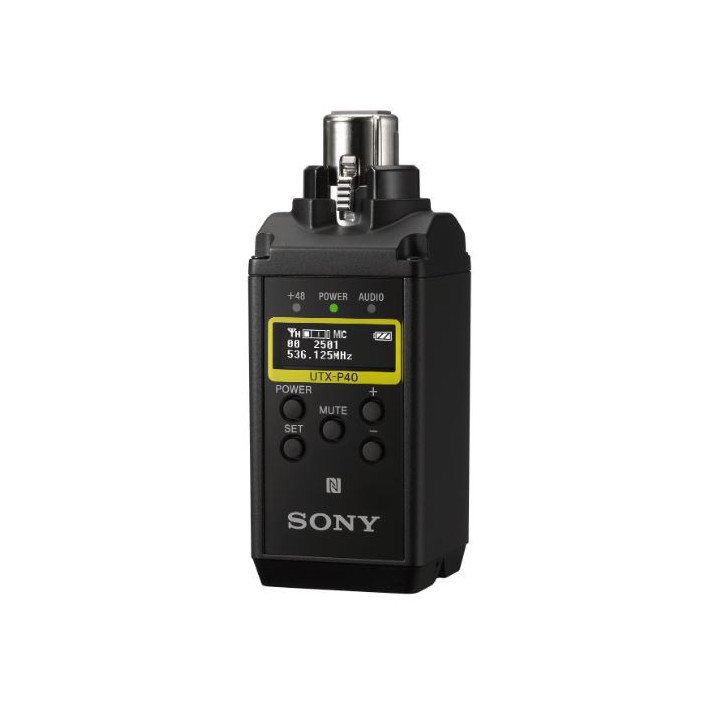

UTX-P40 XLR plug-on transmitter |
||
|
Oscillator type |
Quartz PLL synthesiser |
|
|
Carrier frequencies |
638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) |
|
|
RF output power |
30 mW/5 mW selectable |
|
|
Input connector |
XLR-3-11C type (female) |
|
|
Reference audio input level |
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) |
|
|
Audio attenuator adjustment range |
0 dB to 48 dB (in 3 dB steps) |
|
|
Frequency response |
23 Hz to 18 kHz (typical) |
|
|
Signal-to-noise ratio |
60 dB (–60 dBV, 1 kHz input) |
|
|
Distortion |
0.9% or less (–60 dBV, 1 kHz input) |
|
|
Audio delay |
Approx. 0.35 ms |
|
|
Tone signal frequency |
In UWP-D compander mode: 32.382 kHz |
|
|
Display |
OLED |
|
|
Power requirement |
DC 3.0 V (two LR6/AA alkaline batteries) |
|
|
Battery life* |
Without phantom power: approximately 7 to 10 hours depending on the model (measured with two AA alkaline batteries at 25 °C and AUTO OFF display mode) |
|
|
Operating temperature |
0 °C to 50 °C (32 °F to 122 °F) |
|
|
Storage/transport temperature |
–20 °C to +55 °C (–4 °F to +131 °F) |
|
|
Dimensions |
38 x 98 x 38 mm (1 1/2 x 3 7/8 x 1 1/2 in) (W/H/D) (including audio input connector) |
|
|
Weight |
Approx. 139 g (4.9 oz) (without batteries) |
|
