Sony - Dual Channel UWP-D Kit
Sony UWP-D27/K42 - Dual Channel UWP-D Kit
1053384
4548736131866

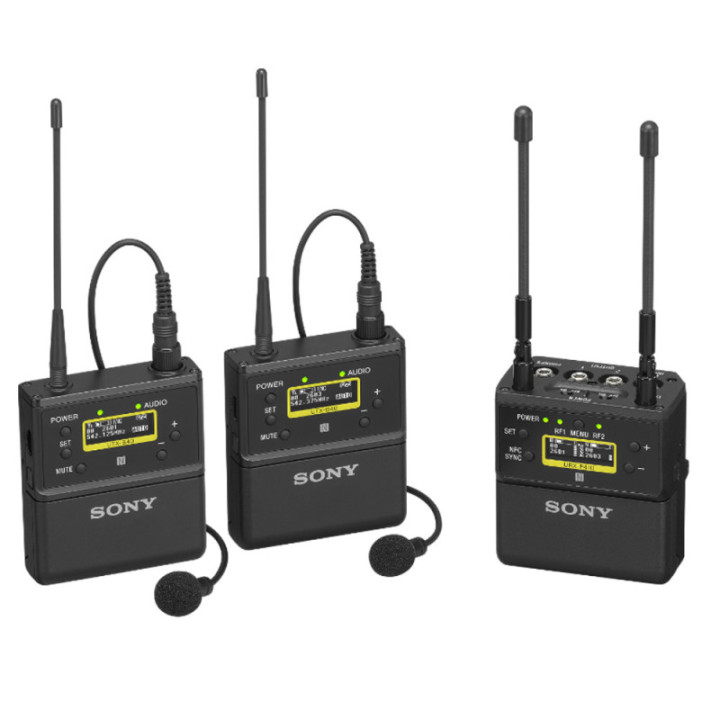

Dual Channel UWP-D Kit. 1 x URX-P41D/K42 & 2 x UTX-B40/K42 transmitter (TV-channel 42-48, 638,025-694,000 MHz)
Visuals Price
1,410.51 CHF
VAT excl.
1,524.76 CHF Inc. VAT
Manufacturer price 1 410,00 CHF VAT excluded
2 piece(s) in stock
-
Delivery
- Available, shipped today
-
In-store pickup
- Geneva, pickup available within 1H
- Zurich, pickup available within 24H
|
|
Specifications |
|
| UTX-B40 bodypack transmitter | ||
| Oscillator Type | Crystal-controlled PLL synthesizer | |
| Antenna Type | 1/4 λ wave length wire antenna | |
| Carrier Frequencies | 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) | |
| RF Output Power | 30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models) |
|
| Capsule Type | Electret condenser | |
| Directivity | Omni-directional | |
| Input Connector | 3.5 mm diameter 3-pole locking mini jack | |
| Reference Audio Input Level | –60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) 4 dBu (LINE input) |
|
| Audio Attenuator Adjustment Range | 0 dB to 27 dB (3 dB steps) | |
| Frequency Response | 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model) |
|
| Signal-to-Noise Ratio | 60 dB (–60 dBV, 1 kHz input) 102 dB (GAIN MODE set to AUTO GAIN, max.) 96 dB (GAIN MODE set to NORMAL, max.) |
|
| Distortion | 0.9% or less (–60 dBV, 1 kHz input) | |
| Audio Delay | Approx. 0.35 ms | |
| Tone Signal Frequency | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
|
| Display | OLED | |
| Power Requirements | DC 3.0 V (two LR6/AA size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector) |
|
| Battery life* | Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F). |
|
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) | |
| Storage/Transport Temperature | -20 °C to +55 °C (–4 °F to +131 °F) | |
| Dimensions | 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna) | |
| Mass | Approx. 83 g (2.9 oz) (excluding batteries) | |

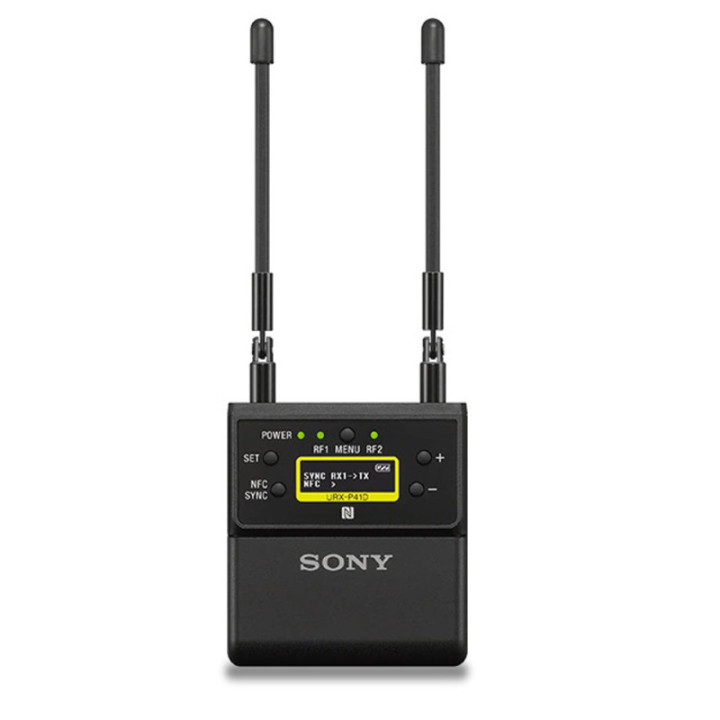

| URX-P41D Dual Channel Portable Receiver | ||
| Oscillator Type | Crystal-controlled PLL Synthesizer | |
| Reception Type | Space diversity* | |
| Antenna Type | 1/4 λ wavelength wire antenna (angle-adjustable) | |
| Carrier Frequencies | 42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42-48) | |
| Frequency Response | 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models) +40 Hz to 15 kHz (typical) (J model) |
|
| Distortion (T.H.D) | 0.9% or less (1 kHz sine wave, 5kHz modulation) | |
| Signal-to-Noise Ratio | 60 dB (1 kHz sine wave, 5 kHz modulation) 96 dB (max deviation, A-weighted) |
|
| Audio Delay | Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output) |
|
| Analog Input | 3.5-mm diameter 3-pole locking mini jack (unbalanced) | |
| Analog Input Level | -50dBV (±12dB Adjustable, 3-dB step) | |
| Audio Output level | –60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output) –20 dBFS (external connection, digital output) –50 dBV (external connection, analog output) |
|
| Audio Output Adjust Range | -12dB to +12dB (3dB step) | |
| Audio Output connector | 3.5mm diameter 3-pole locking mini jack (balanced), External connection |
|
| Headphone Output Connector | 3.5mm diameter mini jack | |
| Headphone Output Level | Max. 10 mW (16-ohm) | |
| Tone signal frequency | In UWP-D compander mode: 32.382 kHz In UWP compander mode: 32 kHz In WL800 compander mode: 32.768 kHz |
|
| Display | OLED | |
| Power Requirements | DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 5.0 V (supplied from USB Type-C connector) |
|
| Battery Life | Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF | |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) | |
| Storage/ Transport Temperature | -20ºC to +55ºC (-4ºF to +131ºF) | |
| Dimensions | 63 × 70 × 35 mm (2 1/2 × 2 7/8 × 1 7/16 in.) (W / H / D) (excluding antenna) | |
| Mass | Approx. 159 g (5.6 oz) (excluding batteries) | |
