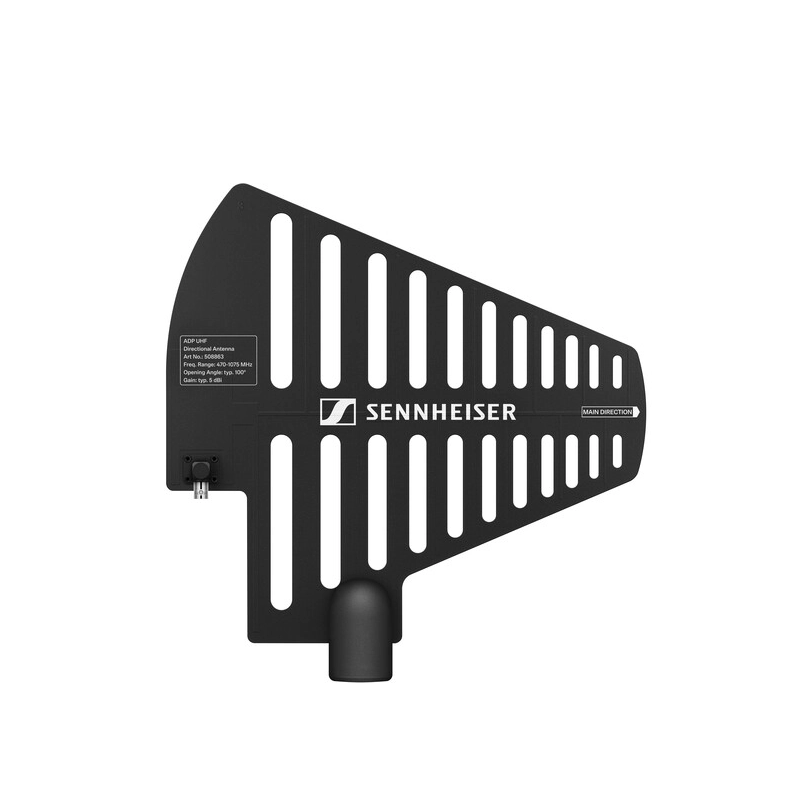

Sennheiser - Passive external directional antenna

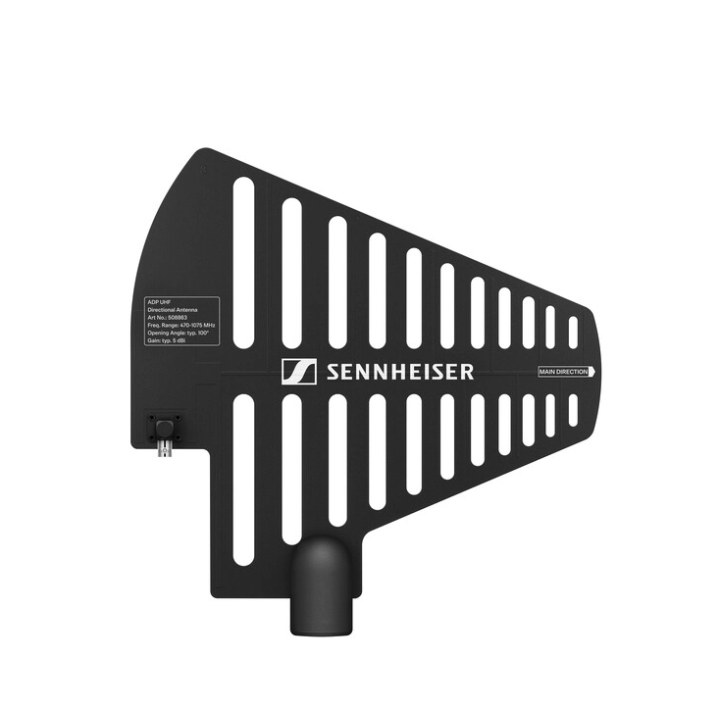

Sennheiser ADP UHF Antenna - Passive external directional antenna
1063080
4044155250671
Passive external directional antenna. UHF transmission greatly enhances range, reliability and scalability. Built-in 3/8" and 5/8" threads allow for easy mic stand mounting
Visuals Price
359.85 CHF
VAT excl.
389.00 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
|
|
Specifications |
|
| Frequency Range | 470 to 1075 MHz | |
| Beam Angle | Approximately 100° (-3 dB) | |
| Front-to-Back Ratio | > 14 dB | |
| Gain | 5 dBi (Typical) | |
| Impedance | 50 Ohms | |
| Connection | BNC female, no DC pass | |
| Thread | 3/8"-16 and 5/8"-27 | |
| Relative Humidity | 5 to 95% | |
| Temperature | Operating temperature range: 14 to 131°F / -10 to 55°C Storage temperature range: -4 to 185°F / -20 to 85°C |
|
| Dimensions | 12.5 x 12.2" / 319 x 310 mm | |
| Weight | 11.2 oz / 320 g | |
| Packaging Information | ||
| Package Weight | 1.355 lb | |
| Package Dimensions (LxWxH) | 14.3 x 12.9 x 1.6" | |
Passive external directional antenna. UHF transmission greatly enhances range, reliability and scalability. Built-in 3/8" and 5/8" threads allow for easy mic stand mounting
