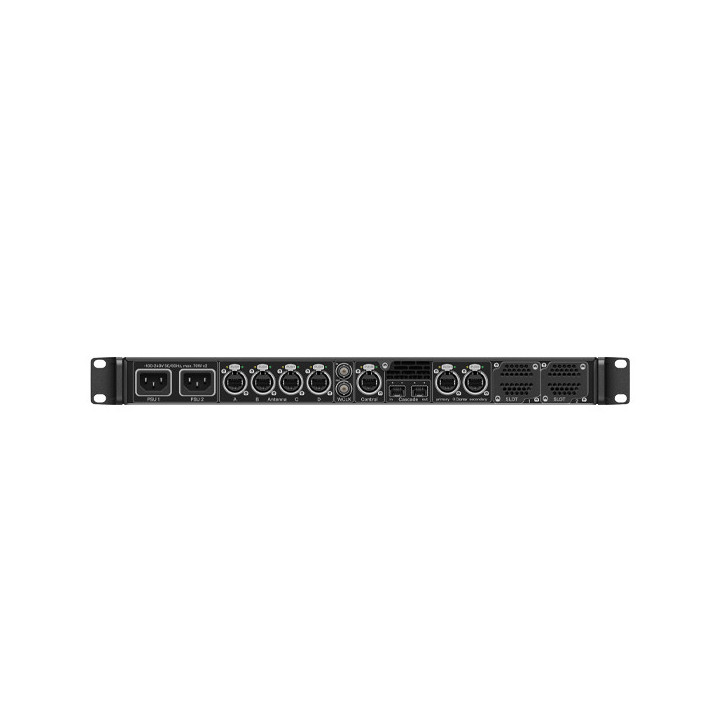

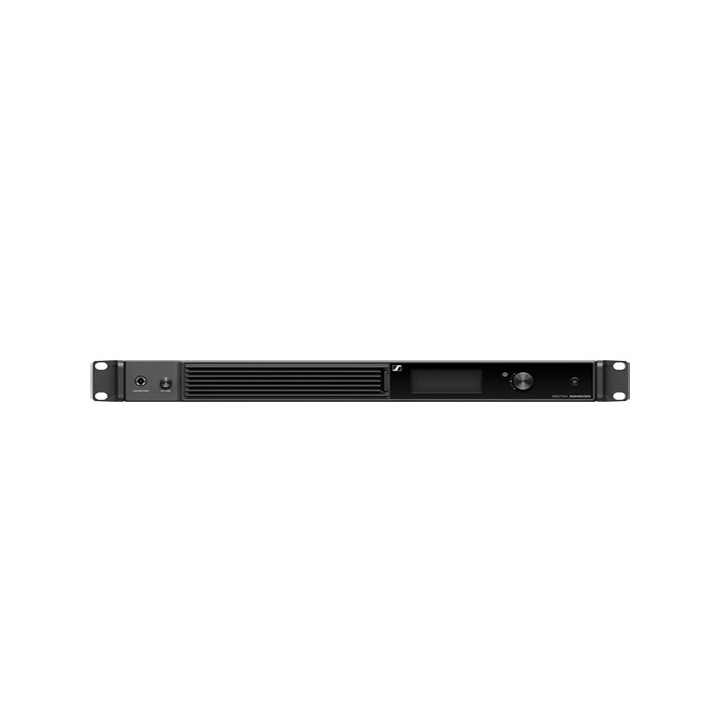

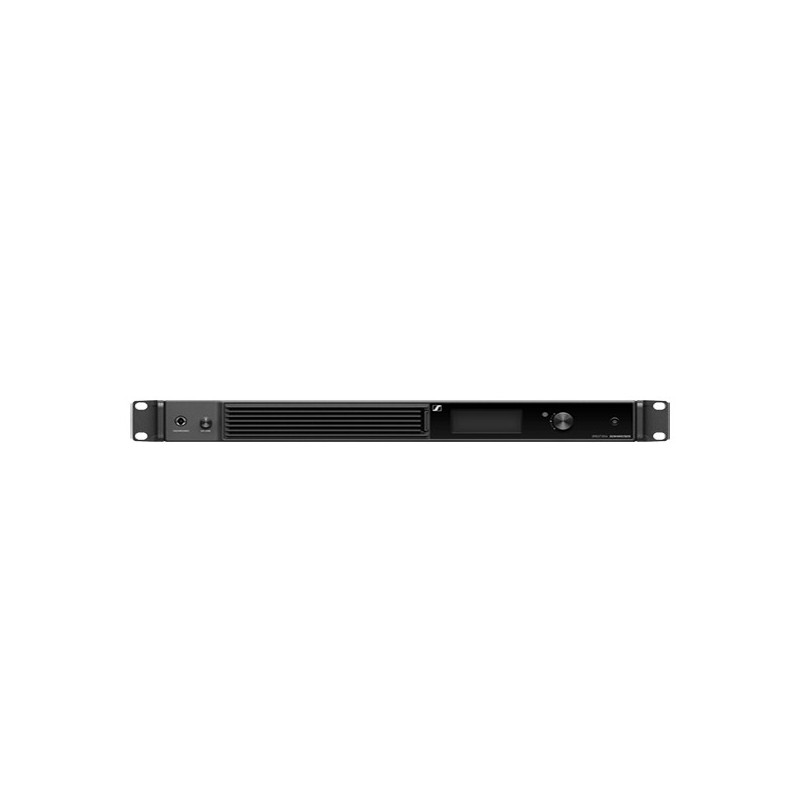

Sennheiser - Rackmount 64-Channel Bidirectional Wireless Transceiver
Sennheiser Spectera Base Station - Rackmount 64-Channel Bidirectional Wireless Transceiver
1075029
The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit's wireless transmission.
Visuals Price
8,165.58 CHF
VAT excl.
8,827.00 CHF Inc. VAT
Manufacturer price 8 973,17 CHF VAT excluded
Made to order
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
Key features
19'' 1 RU base station with redundant power supplies.
Offers up to 64 channels (32 inputs / 32 outputs) and supports up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) — region-specific licence required.
4 Ethernet antenna ports for redundancy, extended coverage and additional spectrum use.
Redundant Dante audio interface.
Two optional slots for redundant MADI (OM or BNC).
Sample rates of 48 and 96 kHz (24-bit).
Individual sample rate converters for all audio interfaces.
BNC Wordclock input/output.
Synchronised clock for all RF audio signals enabling 3D recordings and playback.
Adjustable RF power from 10 to 100 mW (country dependent).
RJ45 network interface for full remote control with secure interface.
11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM.
Secure transmission of confidential content with AES-256 encryption.
Ready for expansion via the Cascade port.
Selective headphone output with volume control on the front panel.
OLED display, rotary navigation and robust metal housing.
Base station activation via LinkDesk: the Spectera licence defines the respective frequency spectrum per region (licence available separately).
19'' 1 RU base station with redundant power supplies.
Offers up to 64 channels (32 inputs / 32 outputs) and supports up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) — region-specific licence required.
4 Ethernet antenna ports for redundancy, extended coverage and additional spectrum use.
Redundant Dante audio interface.
Two optional slots for redundant MADI (OM or BNC).
Sample rates of 48 and 96 kHz (24-bit).
Individual sample rate converters for all audio interfaces.
BNC Wordclock input/output.
Synchronised clock for all RF audio signals enabling 3D recordings and playback.
Adjustable RF power from 10 to 100 mW (country dependent).
RJ45 network interface for full remote control with secure interface.
11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM.
Secure transmission of confidential content with AES-256 encryption.
Ready for expansion via the Cascade port.
Selective headphone output with volume control on the front panel.
OLED display, rotary navigation and robust metal housing.
Base station activation via LinkDesk: the Spectera licence defines the respective frequency spectrum per region (licence available separately).
|
|
Specifications |
|
| Configuration: | Receiver | |
| Analogue/Digital: | Digital | |
| Receiver type: | Rack mount, Desktop | |
| Rack spaces: | 1U | |
| Power supply: | Standard IEC mains power cable | |
| Manufacturer reference: | 509162 | |
The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit's wireless transmission.
