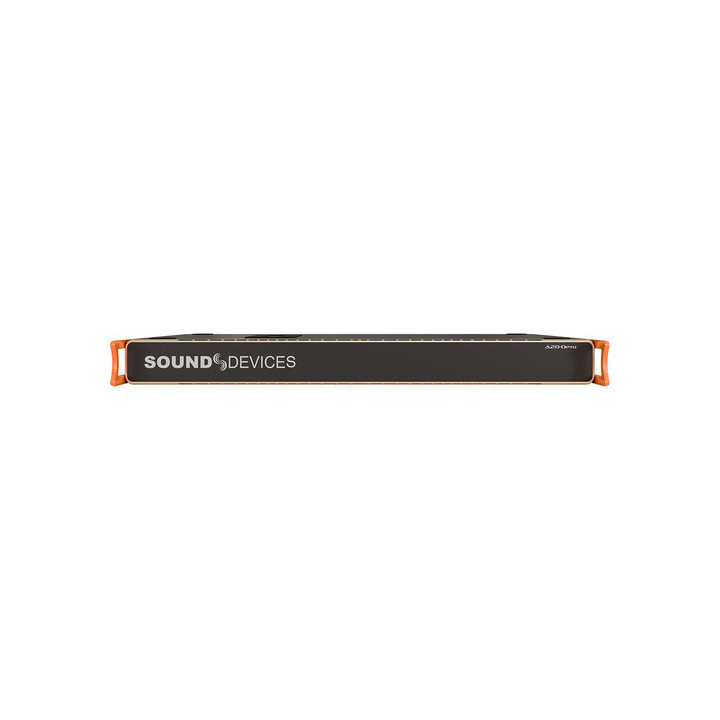

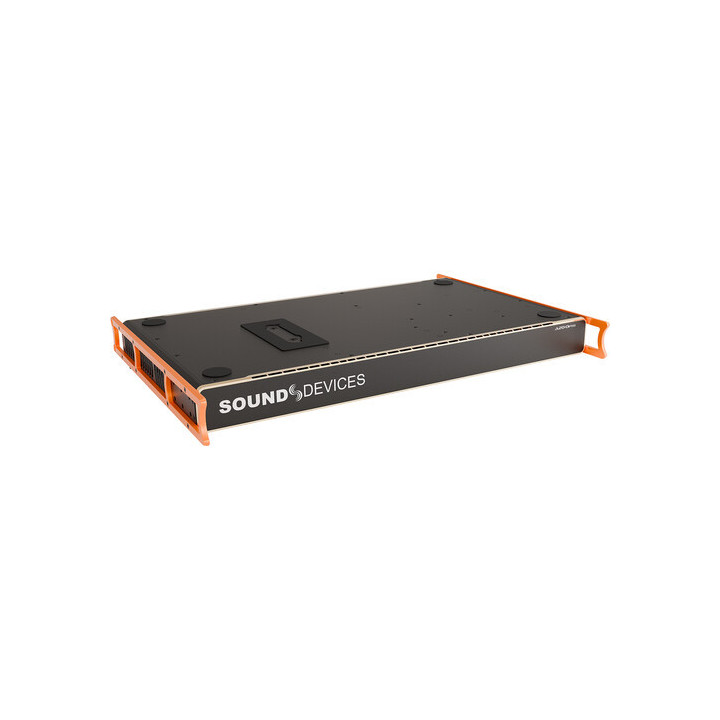

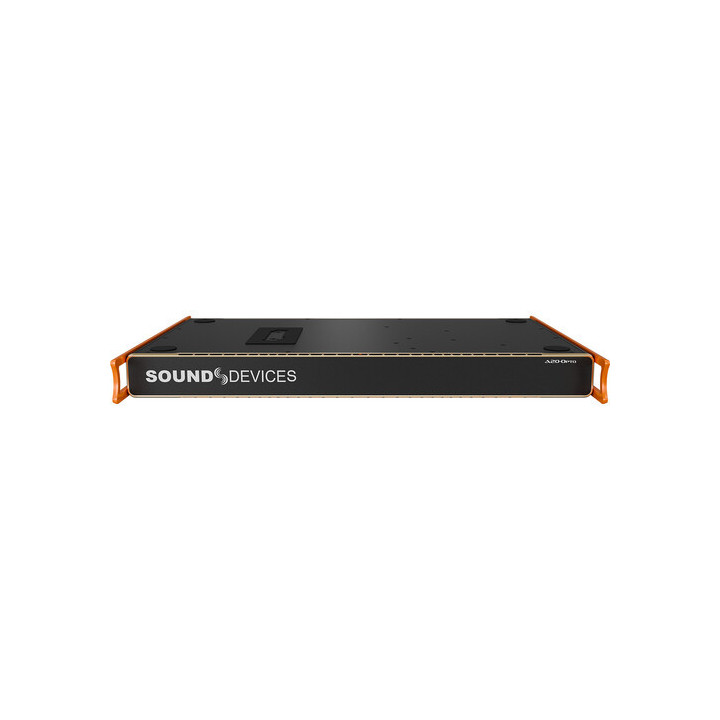

Sound-Devices Astral Opto - ARX32 OptoCore expansion unit with Optocore
1082334
ARX32 OptoCore expansion unit with Optocore
Visuals Price
8,495.00 CHF
VAT excl.
9,183.10 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Designed for high-channel-count sound reinforcement applications, the Sound Devices Astral Opto serves as a compact 1U rack-mountable expansion box for the Astral ARX32, effectively addressing the need for increased connectivity in high-demand scenarios. Its primary addition is Optocore support, enabling seamless integration with an Optocore network to provide native audio connectivity to a DiGiCo mixing console.
In addition to Optocore connectivity, the Astral Opto offers essential redundancy through a comprehensive set of analogue and AES72 digital audio outputs, two additional MADI outputs, 16 flexible GPIO I/Os, and fully redundant AC mains power, ensuring robust and reliable performance for complex sound reinforcement productions requiring numerous channels.
In brief
Adds 2 native Optocore audio loops to route up to 32 RX channels to DiGiCo consoles.
Equipped with Optocore HMA connectors.
Dual BNC connectors for 48 or 96 kHz MADI output. High-speed MADI and 96 kHz SMUX streams are supported.
BNC connector for Wordclock sync reference input for MADI outputs.
8 RJ45 connectors for up to 32 channels of analogue mic/line outputs.
4 RJ45 connectors for up to 32 channels of AES72 digital audio output.
Adds 16 user-configurable GPIO connectors.
Adds fully redundant AC mains power capable of powering both the Astral Opto and the ARX32.
Optocore inputs/outputs
Optocore audio output channels are hard-wired to receive channels (i.e. RX1 to Optocore output 1, RX2 to Optocore output 2, RX3 to Optocore output 3, etc.
When connected to the A20-SuperNexus
Power is shared between the two units. Each is capable of powering the complete set. Both can be connected to mains power for redundancy.
Control of the Astral Opto is performed from the ARX32 menus.
In addition to Optocore connectivity, the Astral Opto offers essential redundancy through a comprehensive set of analogue and AES72 digital audio outputs, two additional MADI outputs, 16 flexible GPIO I/Os, and fully redundant AC mains power, ensuring robust and reliable performance for complex sound reinforcement productions requiring numerous channels.
In brief
Adds 2 native Optocore audio loops to route up to 32 RX channels to DiGiCo consoles.
Equipped with Optocore HMA connectors.
Dual BNC connectors for 48 or 96 kHz MADI output. High-speed MADI and 96 kHz SMUX streams are supported.
BNC connector for Wordclock sync reference input for MADI outputs.
8 RJ45 connectors for up to 32 channels of analogue mic/line outputs.
4 RJ45 connectors for up to 32 channels of AES72 digital audio output.
Adds 16 user-configurable GPIO connectors.
Adds fully redundant AC mains power capable of powering both the Astral Opto and the ARX32.
Optocore inputs/outputs
Optocore audio output channels are hard-wired to receive channels (i.e. RX1 to Optocore output 1, RX2 to Optocore output 2, RX3 to Optocore output 3, etc.
When connected to the A20-SuperNexus
Power is shared between the two units. Each is capable of powering the complete set. Both can be connected to mains power for redundancy.
Control of the Astral Opto is performed from the ARX32 menus.
