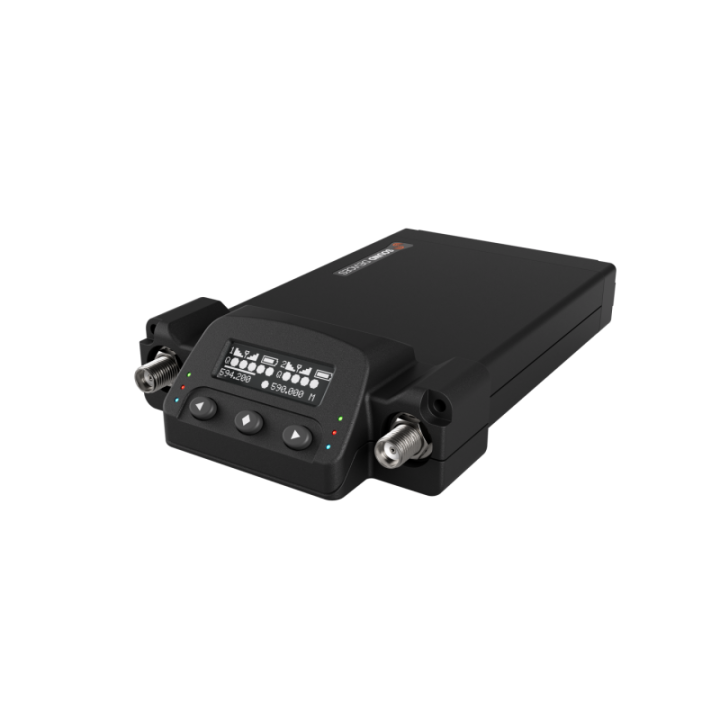

Sound-Devices Astral ARX2 - 2-channel, SpectraBand + VHF
1082336
2-channel, SpectraBand + VHF
Visuals Price
2,250.00 CHF
VAT excl.
2,432.25 CHF Inc. VAT
Made to order
-
Delivery
- Shipped in 2 to 3 weeks
-
In-store pickup
- Available in 2 to 3 weeks
Specifications
| RF tuning | 169 to 1525 MHz |
| SpectraBand technology | Transmitters tunable in 25 kHz steps |
| Available frequencies depend on country of use | |
| Modulation | Proprietary digital RF modulation |
| Standard or long range, selectable | |
| Latency | Standard modulation = 2 ms |
| Long range modulation = 3.9 ms | |
| Measured at analogue output | |
| Audio frequency response | 10 Hz–20 kHz |
| Maximum output level | +14 dBu, +2 dBu, -10 dBu or -22 dBu, menu-selectable, with a 0 dBFS signal at the transmitter input, 130 ohm output impedance |
| Digital audio output | Balanced AES3 connection, 110 ohm output impedance, left=channel 1, right=channel 2 |
| Menu and controls | OLED menu screen, 3-button navigation |
| Privacy | User-configurable 4-digit PIN code |
| Power supply | 6–18 VDC |
| Operating temperature range | -10 °C to +55 °C |
| Weight | 165 g, 5.8 oz, Measured without backplate accessories |
| Dimensions (H x W x D) | 113.7 mm x 78.5 mm x 26.6 mm, 4.48 in x 3.09 in x 1.05 in, Measured without backplate accessories |
2-channel, SpectraBand + VHF
