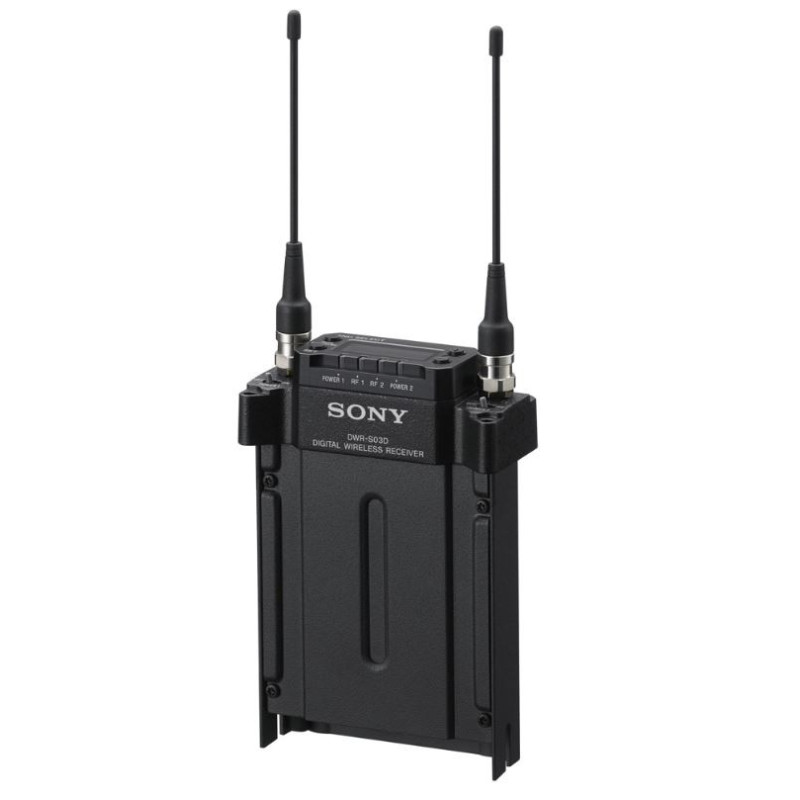

Sony DWR-S03D/LS1 - DWX Series Gen3 Slot-in Receiver
2,736.72 CHF Inc. VAT
-
Delivery
- Shipped in 1 to 2 weeks
-
In-store pickup
- Available in 1 to 2 weeks
The DWR-S03D is a 2-channel slot-in type digital wireless radio receiver from the DWX series, particularly suited for high-density multi-channel operations in large productions. The receiver belongs to the 3rd generation of the professional DWX series and features four different codec modes for various applications. MODE1 is compatible with 1st generation DWX series devices, MODE2 prioritises short latency times while maintaining transmission stability and high audio quality, MODE3 provides additional signal processing and suppresses noise caused by unexpected impulse interference, and MODE4 prioritises audio quality while maintaining transmission stability and low latency. It transmits high-quality 24-bit audio in certain frequency bands (depending on the country). The Cross Remote™ monitoring and control functions allow remote control via the receiver of the input attenuation, RF frequency selection, RF output power, audio low-pass filter cut-off frequency and standby mode of the associated Sony DWT-B30 bodypack transmitter. This eliminates shooting interruptions and unexpected movements. The DWA-SLAS1 interface adapter with D-Sub 15-pin connector, which can be attached to Sony camcorders, is included in the delivery. Optionally, the DWA-SLAU1 interface adapter with D-Sub 25-pin connector is also available, enabling attachment to devices with UniSlot.
Features
- Carrier frequencies from 470.025 to 614.000 MHz (UHF TV channels 21 - 38)
- Includes the DWA-SLAS1 interface adapter with D-Sub 15-pin for connection to Sony camcorders
- Wireless transmission of high-quality 24-bit audio (depending on the country)
- Wide bandwidth of up to 148 MHz (depending on the region)
- Four selectable codec modes for different applications
- X-Dimension Diversity reception system and RF circuit with high dynamic range for reliable transmissions
- Automatic channel search and synchronisation
- Low audio latency and high sound quality
- Advanced integration with XDCAM shoulder camcorder
|
|
Specifications |
|
|
Oscillator type |
Quartz PLL synthesiser |
|
|
Antenna type |
Removable |
|
|
Screen |
OLED |
|
|
Carrier frequencies |
470.025 - 614.000 MHz (UHF TV channels 21 - 38) |
|
|
Circuit system |
Double superheterodyne receiver |
|
|
Receiver type |
True Diversity method, slot-in (2 channels) |
|
|
Transmission method |
WiDIF-HP (2x) |
|
|
Sensitivity |
20 dBμ or less (bit error rate of 1 x 10 - 5 at 25° C, signal-to-noise ratio does not decrease) |
|
|
Reference output level |
-40 dBu (analogue), -36 dBFS / -29 dBFS (switchable, digital) |
|
|
Dynamic range |
106 dB or more (A-weighted) |
|
|
Total harmonic distortion (THD) |
MODE1, MODE2, MODE3 (0.03% or less), MODE4 (0.3% or less) |
|
|
Audio delay |
Analogue output with optional DWA-01D/F01D: 2.1 ms (MODE1) / 1.7 ms (MODE2) / 3 ms (MODE3) / 1.7 ms (MODE4) |
|
|
Wireless remote control |
2.4 GHz, compliant with IEEE802.15.4 |
|
|
RF input |
SMA-R, 50 Ohms |
|
|
Connection |
D-Sub 15-pin (via included DWA-SLAS1 adapter) |
|
|
Operating temperature |
0° to +50° C (+32° to +122° F) |
|
|
Storage temperature |
-20° to +60° C (-4° to +140° F) |
|
|
Operating voltage |
6 - 18 V DC (via connected camcorder / adapter) |
