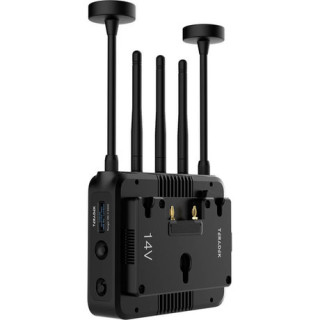

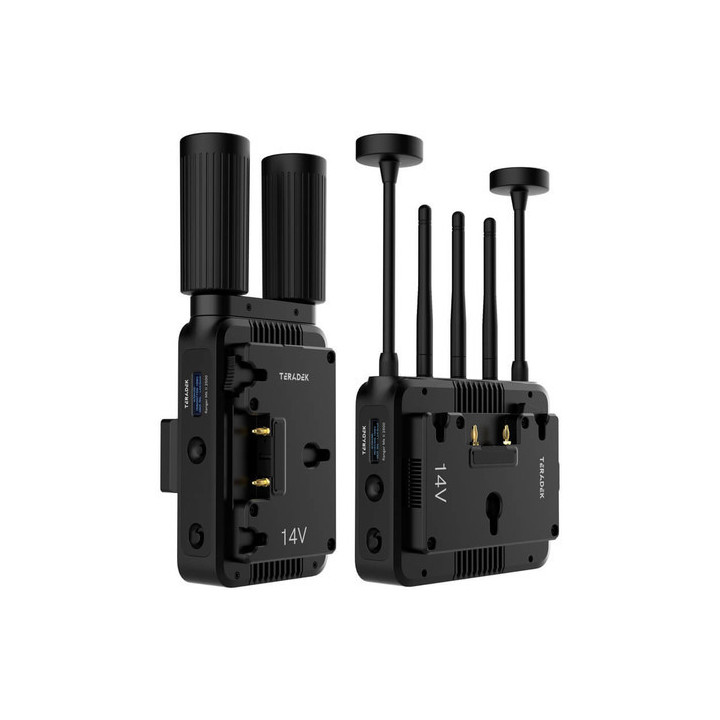

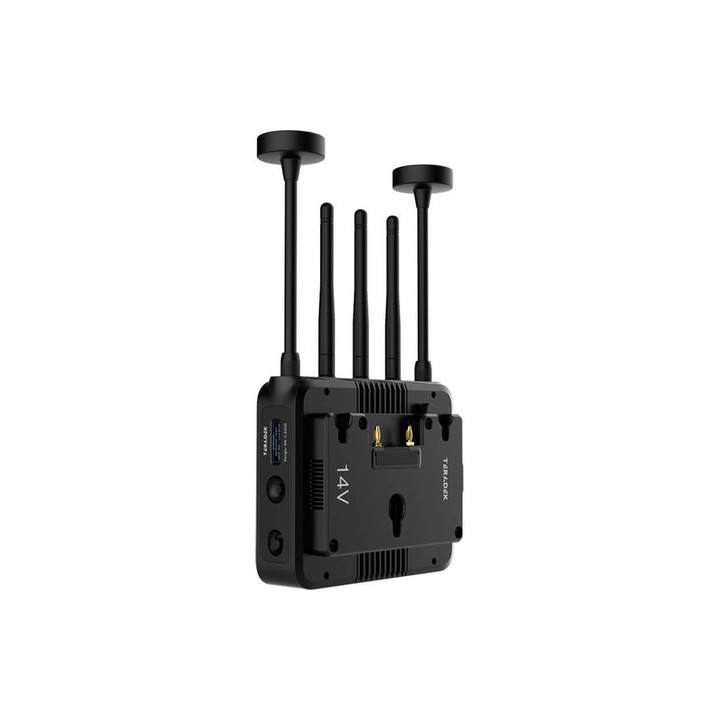

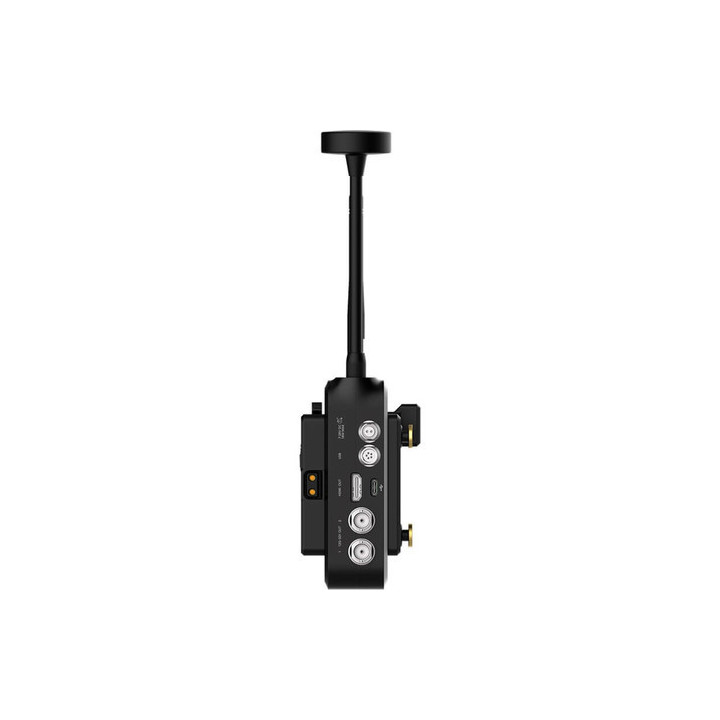

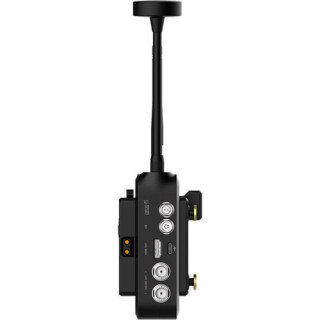

Add a complete wireless transmission kit to your equipment to transmit lossless 4K video up to 1524 m with the Ranger MK II 5000 12G-SDI/HDMI Deluxe Transmitter/Receiver Wireless Kit from Teradek. Redesigned for broadcast, event, drone and portable applications, this transmitter/receiver set can receive video up to 4K60 via HDMI or 12G-SDI and transmit up to 1524 m to the receiver, which can output in HDMI or 12G-SDI.
The set supports transmission of video up to 4K60 to up to six receivers and features built-in AES-256 encryption that protects your video from prying eyes. You can configure the set using a Launchpad software application for computer or the Launchpad app for iOS or Android which connects easily via Bluetooth 5, both offering a spectrum analyser, channel selection tools and remote configuration. Each unit is powered via a 2-pin DC input and the receiver can be powered using the included 26V Gold mount battery plate.
Read on below to learn more about the elements of this kit.

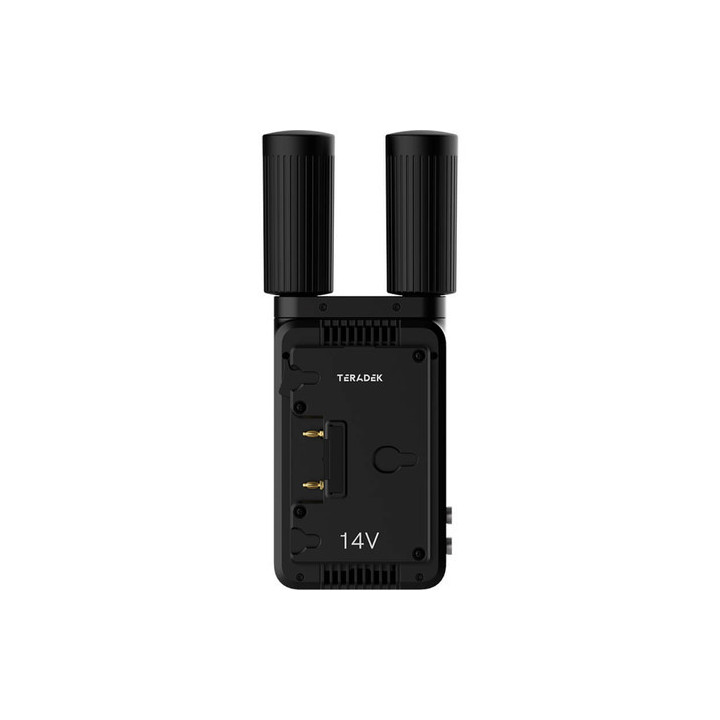

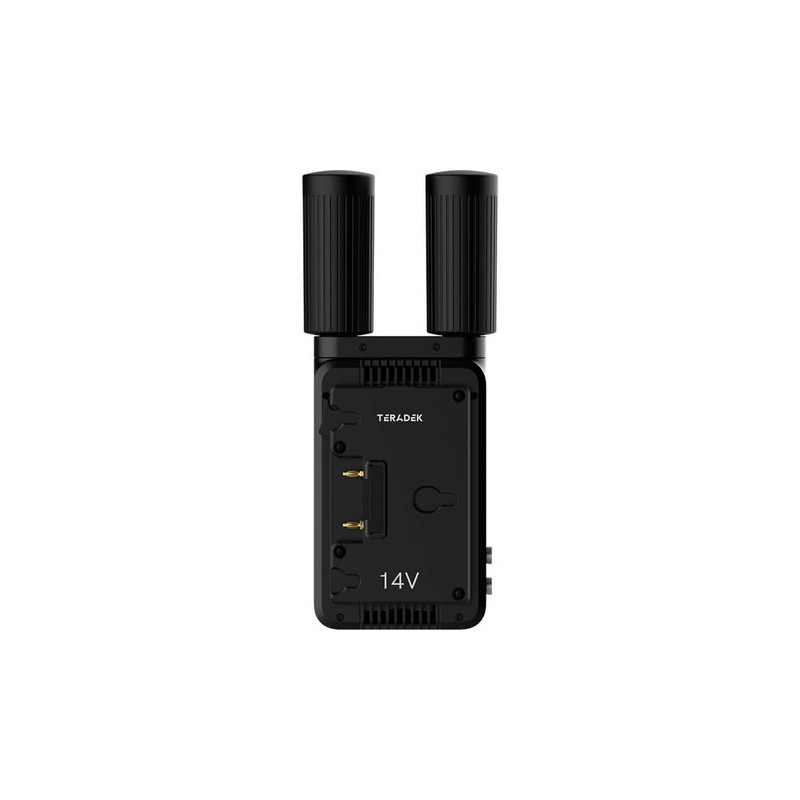

Teradek Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter (Gold Mount 26V)
Transmit lossless HD video up to 1524 m with the Ranger MK II 5000 12G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone and portable applications, this transmitter can receive video up to 4K60 via HDMI or 12G-SDI with 10-bit HDR support and transmit video up to 4K60 over a wide wireless range from 4.9 to 6.4 GHz, including licensed and unlicensed bands in the U-NII 5 6 GHz spectrum. The transmitter unit provides a powerful signal that can travel up to 1524 m in direct line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.
The transmitter supports transmission of video up to 4K60 to up to six receivers and features built-in AES-256 encryption that protects your video from prying eyes. It can transmit visually lossless video to any receiver in the Ranger series without delay. The transmitter supports a Launchpad software application for computer or the Launchpad app for iOS or Android which connects easily via Bluetooth 5, both offering a spectrum analyser, channel selection tools and remote configuration.
The unit is powered via a 2-pin DC input or the included 26V Gold mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on different cameras, cages or brackets.
