Angénieux Type EZ-1 Standard Zoom
The Angénieux Type EZ 1 for FF/VistaVision format is a standard zoom with a 3x zoom factor. Its focal range and aperture are set to 45-135mm F2.8/T3, covering an image circle up to 46mm diagonal. By swapping the rear lens group, the lens becomes a 30-90mm F21.9/T2 for S35mm format, covering an image circle up to 30mm diagonal.
Features
- 45-135mm T3 / f2.8, image coverage up to 46mm diagonal
- Lightweight (2,050g / 4.5 pounds)
- Internal focus and zoom, lens size remains constant throughout the zoom and focus range.
- Traditional Angénieux look, colorimetry matches that of Optimo & OPTIMO STYLE series.
- Short MOD 0.6m / 2 feet
- Built-in thermal compensation, significantly reduces thermal drift.
- Precise and ergonomic focus ring with 300-degree scale rotation
- Luminescent FTZ markings, easy reading in the dark

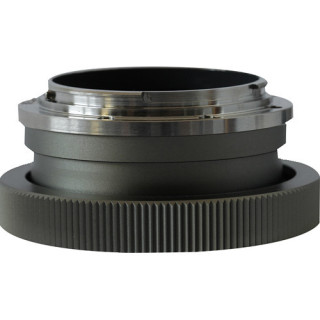

- Available with PL mount, easy conversion to EF or E mount by users
- 114mm front diameter, lens hoods compatible with those used on OPTIMO & OPTIMO STYLE compact zooms
- Removable ENG-style zoom handle available from MOVCAM
- Field of view for 37.7×24.9 mm
Focal length
- 45mm
- 135mm
Horizontal field of view
- 45.6°
- 15.9°
Vertical field of view
- 30.8°
- 10.7°
at MOD
- 351 x 228mm
- 115 x 77mm
