Fohhn - Active 2-way loudspeaker, black
Fohhn LX-60 ASX - Active 2-way loudspeaker, black
-
Consegna
- Spedito entro 1-2 settimane
-
Ritiro in negozio
- Disponibile in 1-2 settimane
Active loudspeakers with integrated digital amplifier and DSP technology. The amplifier can be regarded as a 2-channel device. This enables separate control of the high frequency and low-mid loudspeakers. In combination with the multi-channel DSPs, this guarantees best possible sound quality, a wide dynamic range, flat frequency response and optimum speaker protection. Three compact full range models and three subwoofers are available in total.
Compact, Active 2-Way Hybrid Line Source Speaker with Aluminium Housing for use in a Digital Audio Network System

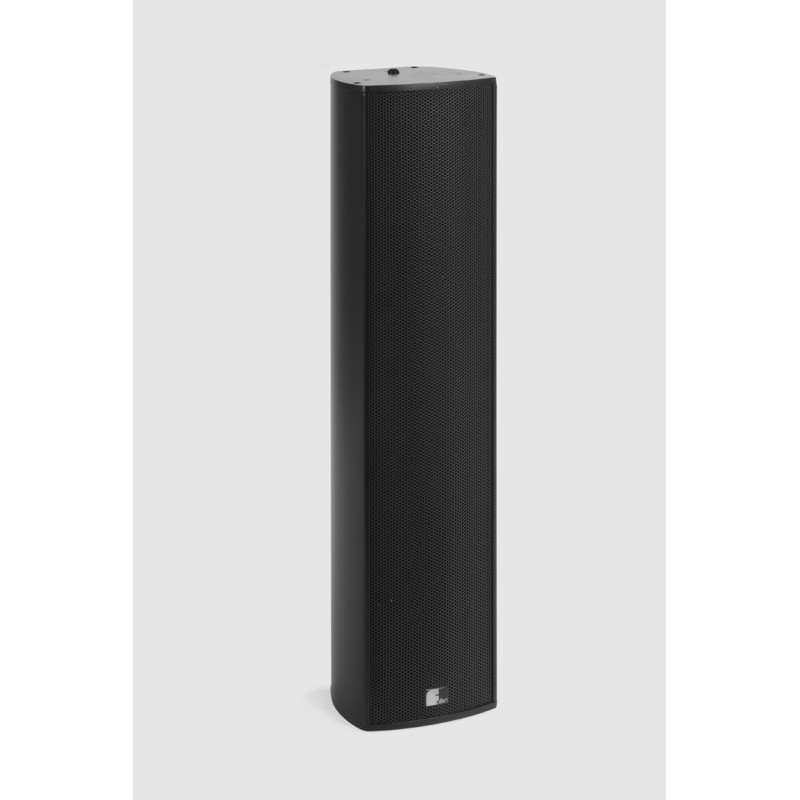

Active, hybrid line source system with integrated 2-channel digital amplifier and DSP technology, equipped with four high quality 4” long excursion drivers and a 1” compression driver on horn-loaded Waveguide. Use of neodymium chassis and aluminium housing makes the loudspeaker very light in weight – approx. 4.4 kg. Ideally suited to dynamic speech and music reproduction, its elegant design also enables perfect optical integration. With a capacity of up to 200 W, the speaker can generate a maximum SPL of 119 dB. The loudspeaker has a very precise dispersion of 130° x 30° (h x v) and a wide frequency range from 75 Hz to 20 kHz. Lightweight aluminium housing with rounded sides, black or white powder-coated. Optionally available in all RAL Classic colours and in Fohhn Texture Design. Other colour catalogues are also possible on request. To protect the loudspeaker chassis and electronics, the housing is fitted with a high grade, ball impact resistant, sound permeable front grille made from powder-coated galvanised steel. Eight integrated M6 threaded inserts on the base, rear panel and top are designed to accommodate mounting brackets. CAAD simulation files for EASE are available. Developed for dedicated use in a digital audio network system that includes active loudspeakers with integrated digital amplifiers and DSP technology, master modules and other system components.

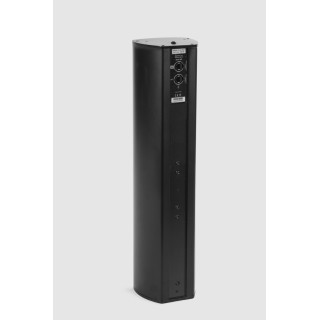

Connections: Input via RJ-45 (Neutrik etherCON) for digital AES/EBU signals, control signals and power supply. Output via RJ-45 link out (Neutrik etherCON) enables serial connection (Daisy Chain) to other system components.
|
|
Specifications |
|
|
Electro-acoustical features |
|
|
|
Acoustic design |
Active hybrid line source speaker system, 2-way |
|
|
Components |
4x 4" long excursion with treated cones, 1x 1” compression driver on Fohhn®-Waveguide, fully neodymium |
|
|
Overall power rating (nominal) |
200 W |
|
|
Operating mode |
Active, 2x Class-D DSP amplifier |
|
|
Maximum SPL |
119db |
|
|
Frequency range |
75Hz - 20khz |
|
|
Nominal dispersion (h x v) |
130° x 30° |
|
|
Features |
|
|
|
Enclosure |
Aluminium housing |
|
|
Protection grille |
Ball impact resistant steel grille, powder coating |
|
|
Rigging points |
8x M6 threads |
|
|
Standard colours |
Black or white powder coating |
|
|
Front design |
Metal grille in enclosure colour, backed by acoustically transparent foam |
|
|
Dimensions (W x H x D) |
130 x 640 x 120 mm |
|
|
Weight |
4,4 kg |
|
|
Optional Features |
|
|
|
Optional colours |
All RAL Classic colours, Fohhn Texture Design |
|
|
Remote control, Remote monitoring and Simulation |
||
|
Remote control |
AIREA-Net, Fohhn Audio Soft |
|
|
Remote monitoring |
Temperature, protect, signals, power supply, Fohhn-Net, Fohhn Audio Soft, AES/EBU available |
|
|
Fault contact |
- |
|
|
Simulation beam |
- |
|
|
Electronic Performance |
|
|
|
Amplifier output |
2 x 300W |
|
|
Amplifier type |
Pure Path Digital PWM |
|
|
Audio inputs |
2 independent audio channels, AES/EBU 32 khz -96 khz, 16/24 Bit |
|
|
Audio outputs |
2 x 300W intern |
|
|
DSP channels |
Fohhn Audio DSP |
|
|
Amplification |
30 db (Ref 1V) |
|
|
Input sensitivity |
-6 db Fullscale |
|
|
Frequency response |
20 Hz - 20 khz |
|
|
S/N Ratio |
>105 db/A |
|
|
THD |
< 0,05% typ. , < 0,01% 1khz -6db |
|
|
Protective circuit |
Softstart, temperature overload, short circuit, overload |
|
|
Power supply |
Airea Net 50V |
|
|
Handling capacity |
Standby 5 W, Airea Net Load 50W |
|
|
Power Factor (PFC) |
> 90 % |
|
|
Protection |
Integrated semiconductor fuse |
|
|
Low Power |
Green Power Standby Mode |
|
|
Emergency current possible |
With external USV |
|
|
Temperature range |
0 – 40°C |
|
|
Cooling |
Passive |
|
|
Weight electronic |
0,3 kg |
|
|
Controllers |
|
|
|
Digital signal processors |
2 |
|
|
Independent limiters |
4 |
|
|
Selective 3-band limiting |
Bass/ mid/ high |
|
|
Band specific time constants |
Yes |
|
|
Filter technology |
56-bit double precision |
|
|
Input |
AES/EBU 32khz – 96khz, 16/24 Bit |
|
|
FIR filter |
Yes |
|
|
Gain |
-80 db - +12 db |
|
|
Volume |
-80 db - +12 db |
|
|
EQ |
10-band parametric EQ |
|
|
Limiter Compressor |
Yes |
|
|
Noise Gate |
Yes |
|
|
X-over |
Linkwitz-Riley 4. Order |
|
|
Delay |
0 - 145 ms ( 0 - 50 m) |
|
|
User presets |
100 |
|
|
System latency |
0,95 ms |
|
|
Connections |
|
|
|
AIREA-Net |
1 x RJ-45 in, 1 x RJ-45 link out |
|
|
AIREA Net Load |
100W |
|
|
Displays |
|
|
|
Power on/ off (standby) |
Green = on |
|
|
Sign, identification |
Blue, blue flashing |
|
|
Sign, identification front LED |
Blue, blue flashing |
|
|
Network control |
Receive/ send remote control LED |
|
