Datavideo - Pan/Tilt cam w. Atsilhouette

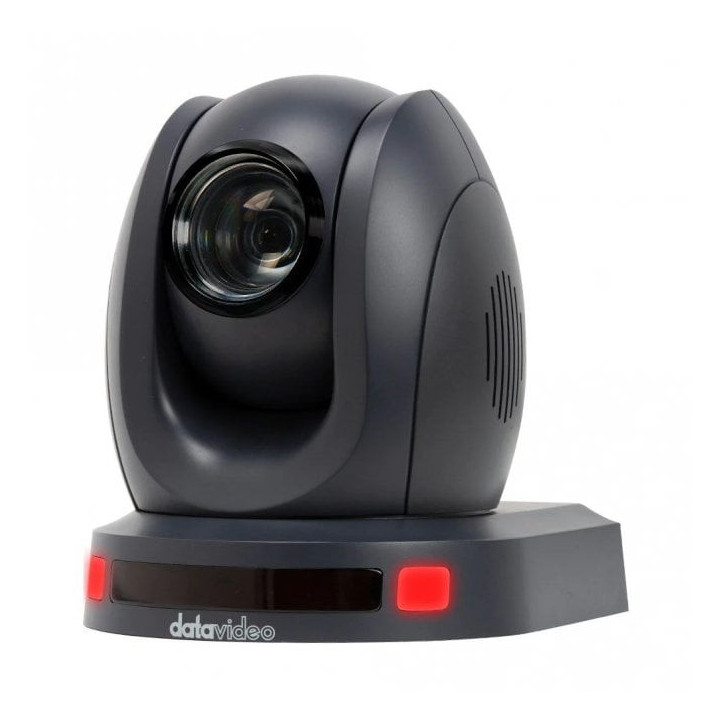

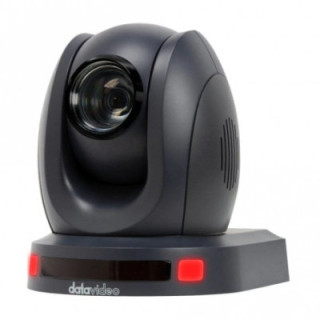

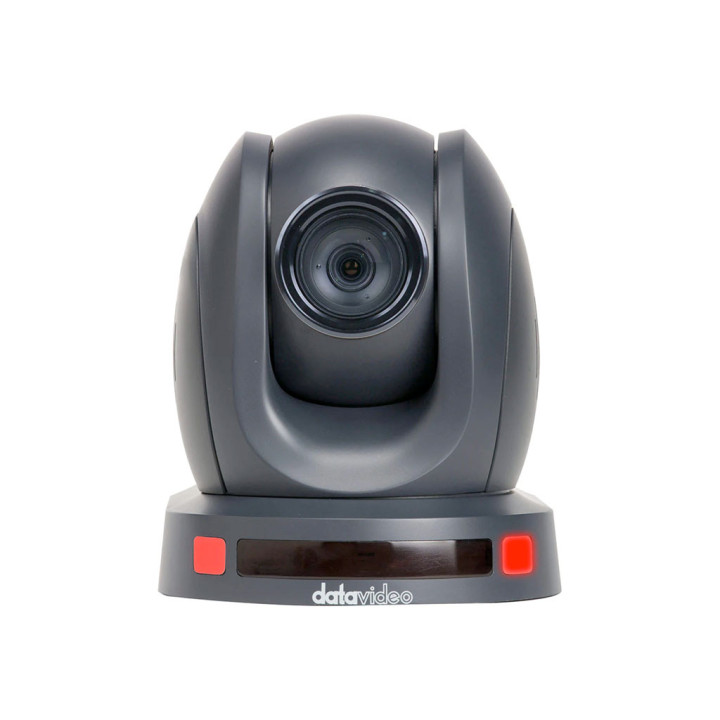

Datavideo 7000-3070 - PTC-145 - Pan/Tilt cam w. Atsilhouette
1077591
This versatile PTZ camera supports frame rates and resolutions up to 1080p60 and features a 1/2.8" CMOS sensor with 2.07 MP resolution.
Prezzi Visuals
1.484,10 CHF
IVA escl.
1.604,31 CHF IVA inclusa
Prezzo del produttore 1 746,00 CHF IVA escl.
Su ordinazione
-
Consegna
- Spedito entro 2-3 settimane
-
Ritiro in negozio
- Disponibile in 2-3 settimane
Datavideo 7000-3070 - PTC-145 - Pan/Tilt cam w. Atsilhouette Specs
| Model Number | PTC-145 |
| Video format/Resolution | 1080p 60/59.94/50/30/29.97/25 1080i 60/59.94/50 720p 60/59.94/50 |
| Image Sensor | 1/2.8 inch high quality HD CMOS sensor |
| Effective Pixels (approx.) | 2.07 Mega pixels |
| S/N Ratio | >55dB |
| Min. Illumination | 0.5Lux (F1.8, AGC ON) |
| Electronic Shutter | Auto / Manual |
| Zoom Ratio | 20x Optical Zoom, 10x Digital Zoom |
| Gamma Control | Off / Normal |
| Iris Control | Auto / Manual |
| Digital Noise Reductions | Yes |
| On-Screen Display (OSD) | English, Simplified Chinese |
| White Balance | Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K |
| AGC / Gain Control | Auto / Manual |
| Mirror / Flip Image | Yes |
| Focus Mode | Auto / Manual |
| Panning / Tilting Range | Pan: 340° , Tilt: +90° to -30° |
| Panning / Tilting Speed | Pan: 0.1~60°/sec Tilt: 0.1~30°/sec |
| Preset | 255 Position |
| Focal Length | f=5.2 (wide) to 98 (tele) mm F1.6 to F3.5 |
| Field of View (Horizontal, Wide) | Approx. 54.7° (WIDE END) / 3.3° (TELE END) |
| Image Compensation | Backlight Compensation |
| Video Output | HDMI x 1 SDI x 1 |
| Audio Input | 3.5mm Line in |
| Tally LED | Dual color (Red, Green) |
| Lens Filter | M52.0 x 0.75 Thread with UV Protection |
| Control Protocol | VISCA, Pelco-D, Pelco-P, DVIP |
| Remote Control Interface | RJ-45: for IP control (DVIP) RS-232 RS-485 |
| Video Compression Format | H.264, H.265, Dual stream output |
| Audio Compression Format | AAC/MP3/G.711A Audio compression |
| Audio Bitrate | 96Kbps, 128Kbps, 256Kbps |
| HD IP Interface | 100M IP port(100BASE-TX); Support DVIP |
| Streaming Protocols | TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc |
| First Stream Supported Resolution | ---- |
| Second Stream Supported Resolution | ---- |
| Video Bitrate | ---- |
| Video Bitrate Mode | ---- |
| Encoding Frame rate | ---- |
| POE | ---- |
| F/W Update | Ethernet |
| IR Control | Yes |
| Camera Control Unit | RMC-180 series/RMC-300 series/PTZ View Assist APP |
| Tripod Mount | 1/4-20 UNC |
| Optional Accessories | WM-1/ WM-10/ WM-11 |
| Color | Dark Blue/White |
| Dimension (LxWxH) | 156 x 184 x 186 mm |
| Weight | 1.6 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V 12W |
This versatile PTZ camera supports frame rates and resolutions up to 1080p60 and features a 1/2.8" CMOS sensor with 2.07 MP resolution.
